FET, MOSFET
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIHK155N60EF-T1GE3EF SERIES POWER MOSFET WITH FAST |
4,000 |
|
Техническая документация |
EF | 8-PowerBSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 52mOhm @ 10A, 10V | 5V @ 250µA | 38 nC @ 10 V | ±20V | 1465 pF @ 100 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK®10 x 12 |
|
|
TK22V65X5,LQPB-F POWER MOSFET TRANSISTOR DFN |
2,500 |
|
Техническая документация |
DTMOSIV-H | 4-VSFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Ta) | 10V | 170mOhm @ 11A, 10V | 4.5V @ 1.1mA | 50 nC @ 10 V | ±30V | 2400 pF @ 300 V | - | 180W (Tc) | 150°C | - | - | Surface Mount | 4-DFN-EP (8x8) |
|
|
IMDQ75R090M1HXUMA1IMDQ75R090M1HXUMA1 |
744 |
|
Техническая документация |
CoolSiC™ | 22-PowerBSOP Module | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 750 V | 24A (Tj) | 15V, 20V | 83mOhm @ 7.4A, 20V | 5.6V @ 2.6mA | 15 nC @ 18 V | +20V, -2V | 542 pF @ 500 V | - | 128W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-HDSOP-22-1 |
|
|
GS-065-008-6-L-MRGS-065-008-6-L-MR |
922 |
|
Техническая документация |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | GaNFET (Gallium Nitride) | 700 V | 8.8A (Tc) | 6V | 235mOhm @ 2.2A, 6V | 2.6V @ 1.7mA | 1.6 nC @ 6 V | +7V, -10V | 54 pF @ 400 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|
|
IAUTN06S5N008ATMA1MOSFET_)40V 60V) |
6,000 |
|
Техническая документация |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPDQ65R060CFD7XTMA1HIGH POWER_NEW |
730 |
|
Техническая документация |
CoolMOS™ | 22-PowerBSOP Module | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 45A (Tc) | 10V | 60mOhm @ 16.4A, 10V | 4.5V @ 820µA | 65 nC @ 10 V | ±20V | 3288 pF @ 400 V | - | 272W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HDSOP-22-1 |
|
|
IPF031N13NM6ATMA1TRENCH >=100V |
690 |
|
Техническая документация |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISC044N15NM6ATMA1TRENCH >=100V |
4,019 |
|
Техническая документация |
OptiMOS™ 6 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 17.1A (Ta), 156A (Tc) | 8V, 15V | 4.2mOhm @ 50A, 15V | 4V @ 140µA | 72 nC @ 75 V | ±20V | 5100 pF @ 75 V | - | 3W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TSON-8-3 |
|
|
NVMFS5C404NWFET1GT6-40V N 0.7 MOHMS SL |
1,500 |
|
Техническая документация |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 53A (Ta), 378A (Tc) | 10V | 0.70mOhm @ 50A, 10V | 4V @ 250µA | 128 nC @ 10 V | ±20V | 8400 pF @ 25 V | - | 3.9W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
|
IPI90R340C3XKSA2MOSFET N-CH 900V 15A TO262-3 |
495 |
|
Техническая документация |
CoolMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 15A (Tc) | 10V | 340mOhm @ 9.2A, 10V | 3.5V @ 1mA | 94 nC @ 10 V | ±20V | 2400 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO262-3-1 |
|
IPA90R340C3XKSA2MOSFET N-CH 900V 15A TO220 |
316 |
|
Техническая документация |
CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 15A (Tc) | 10V | 340mOhm @ 9.2A, 10V | 3.5V @ 1mA | 94 nC @ 10 V | ±20V | 2400 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
IPP90R340C3XKSA2MOSFET N-CH 900V 15A TO220-3 |
298 |
|
Техническая документация |
CoolMOS™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 15A (Tc) | 10V | 340mOhm @ 9.2A, 10V | 3.5V @ 1mA | 94 nC @ 10 V | ±20V | 2400 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|

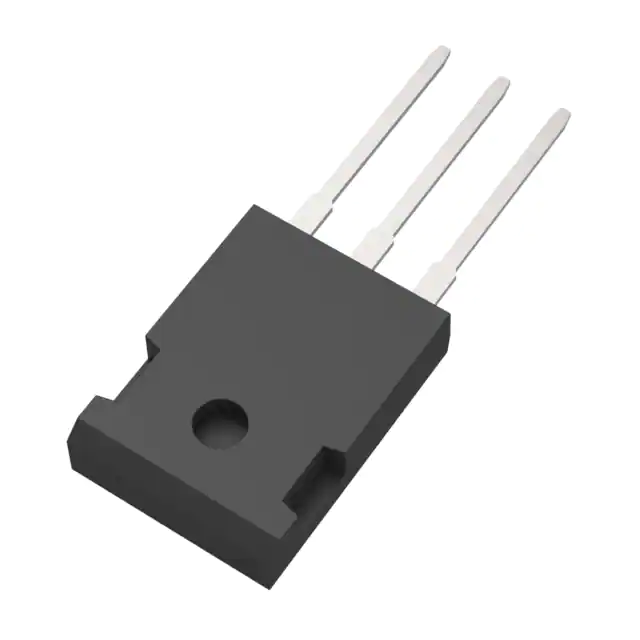

MSC360SMA120BMOSFET SIC 1200 V 360 MOHM TO-24 |
130 |
|
Техническая документация |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 11A (Tc) | 20V | 450mOhm @ 5A, 20V | 3.14V @ 500µA (Typ) | 21 nC @ 20 V | +23V, -10V | 255 pF @ 1000 V | - | 78W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
IPW80R290C3AXKSA1MOSFET N-CH 800V 17A TO247-3 |
216 |
|
Техническая документация |
CoolMOS™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 17A (Tc) | 10V | 290mOhm @ 11A, 10V | 3.9V @ 1mA | 117 nC @ 10 V | ±20V | 2300 pF @ 100 V | - | 227W (Tc) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3 |
|
IPI60R125CPXKSA1MOSFET N-CH 650V 25A TO262-3 |
490 |
|
Техническая документация |
CoolMOS™ | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 25A (Tc) | 10V | 125mOhm @ 16A, 10V | 3.5V @ 1.1mA | 70 nC @ 10 V | ±20V | 2500 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO262-3 |
|
IRFPE30PBFMOSFET N-CH 800V 4.1A TO247-3 |
381 |
|
Техническая документация |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4.1A (Tc) | 10V | 3Ohm @ 2.5A, 10V | 4V @ 250µA | 78 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
SIHG33N60EF-GE3MOSFET N-CH 600V 33A TO247AC |
498 |
|
Техническая документация |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 33A (Tc) | 10V | 98mOhm @ 16.5A, 10V | 4V @ 250µA | 155 nC @ 10 V | ±30V | 3454 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
R6038YNXC7G600V 18A TO-220FM, HIGH-SPEED SW |
995 |
|
Техническая документация |
- | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tj) | 10V, 12V | 96mOhm @ 9A, 12V | 6V @ 2.5mA | 50 nC @ 10 V | ±30V | 2350 pF @ 100 V | - | 81W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-220FM |
|
|
AOK095A60FDLINEAR IC |
240 |
|
Техническая документация |
aMOS5™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 95mOhm @ 19A, 10V | 4.1V @ 250µA | 83 nC @ 10 V | ±20V | 4050 pF @ 100 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 |
|
|
MCTL150N06YHE3-TPN-CHANNEL MOSFET,TOLL-8L |
4,000 |
|
Техническая документация |
- | 8-PowerSFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 150A (Tc) | 4.5V, 10V | 2.4mOhm @ 30A, 10V | 2.5V @ 250µA | 55.8 nC @ 10 V | ±20V | 3375 pF @ 25 V | - | 158W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TOLL-8L |
