FET, MOSFET
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STB34NM60NMOSFET N-CH 600V 29A D2PAK |
500 |
|
Техническая документация |
MDmesh™ II | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 105mOhm @ 14.5A, 10V | 4V @ 250µA | 84 nC @ 10 V | ±25V | 2722 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
NVH4L060N065SC1SIC MOS TO247-4L 650V |
443 |
|
Техническая документация |
- | TO-247-4 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 47A (Tc) | 15V, 18V | 70mOhm @ 20A, 18V | 4.3V @ 6.5mA | 74 nC @ 18 V | - | 1473 pF @ 325 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-4L |
|

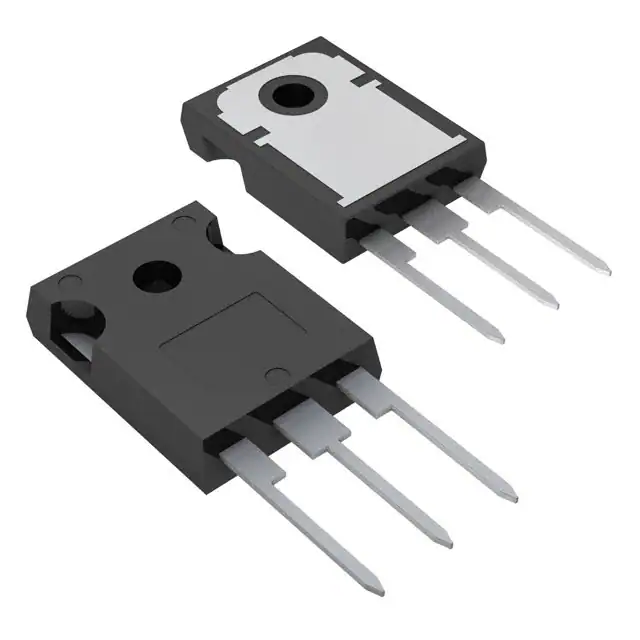

IXFH60N65X2MOSFET N-CH 650V 60A TO247 |
290 |
|
Техническая документация |
HiPerFET™, Ultra X2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 60A (Tc) | 10V | 52mOhm @ 30A, 10V | 5.5V @ 4mA | 107 nC @ 10 V | ±30V | 6180 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
IXTH60N20X4MOSFET ULTRA X4 200V 60A TO-247 |
383 |
|
Техническая документация |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 60A (Tc) | 10V | 21mOhm @ 30A, 10V | 4.5V @ 250µA | 33 nC @ 10 V | ±20V | 2450 pF @ 25 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXFH) |
|
STWA88N65M5MOSFET N-CH 650V 84A TO247 |
593 |
|
Техническая документация |
MDmesh™ V | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 84A (Tc) | 10V | 29mOhm @ 42A, 10V | 5V @ 250µA | 204 nC @ 10 V | ±25V | 8825 pF @ 100 V | - | 450W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg)
|

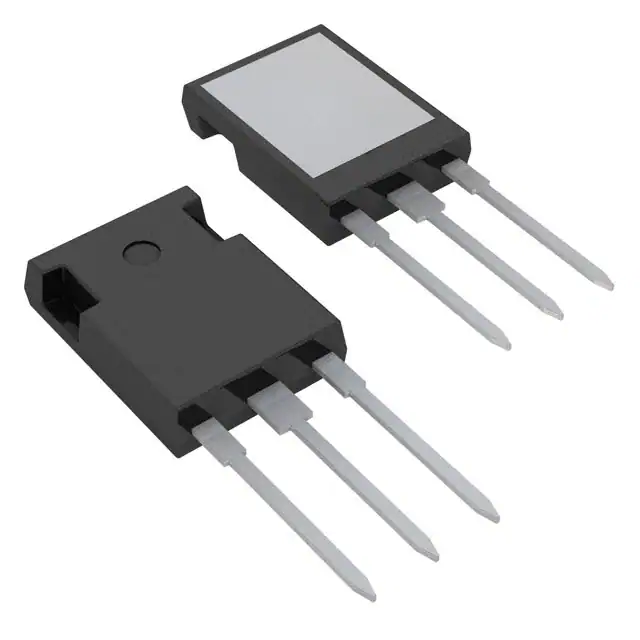

IXFR44N50PMOSFET N-CH 500V 24A ISOPLUS247 |
289 |
|
Техническая документация |
HiPerFET™, Polar | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 150mOhm @ 22A, 10V | 5V @ 4mA | 98 nC @ 10 V | ±30V | 5440 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS247™ |
|

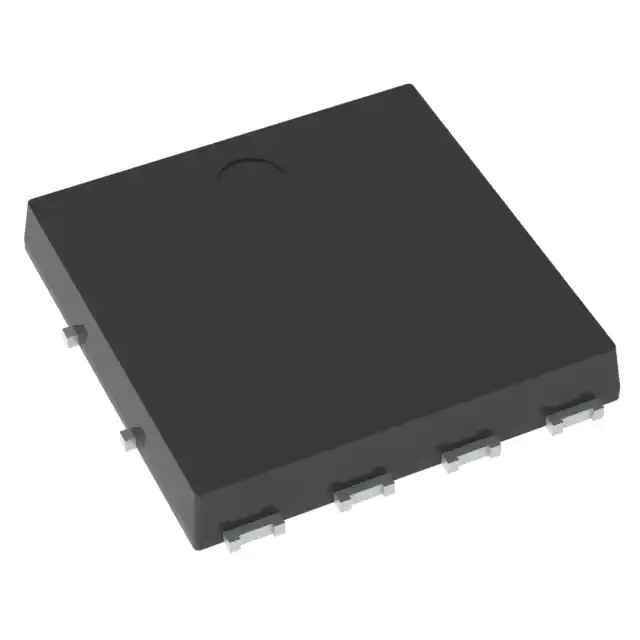

NVMTS0D7N04CLTXGAFSM T6 40V LL NCH |
3,029 |
|
Техническая документация |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 67A (Ta), 433A (Tc) | 4.5V, 10V | 0.63mOhm @ 50A, 10V | 2.5V @ 250µA | 205 nC @ 10 V | ±20V | 12238 pF @ 25 V | - | 2.5W (Ta), 205W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-DFNW (8.3x8.4) |
|
|
IPDQ60R022S7XTMA1HIGH POWER_NEW PG-HDSOP-22 |
738 |
|
Техническая документация |
CoolMOS™ S7 | 22-PowerBSOP Module | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 24A (Tc) | 12V | 22mOhm @ 23A, 12V | 4.5V @ 1.44mA | 150 nC @ 12 V | ±20V | 5639 pF @ 300 V | - | 416W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-HDSOP-22-1 |
|

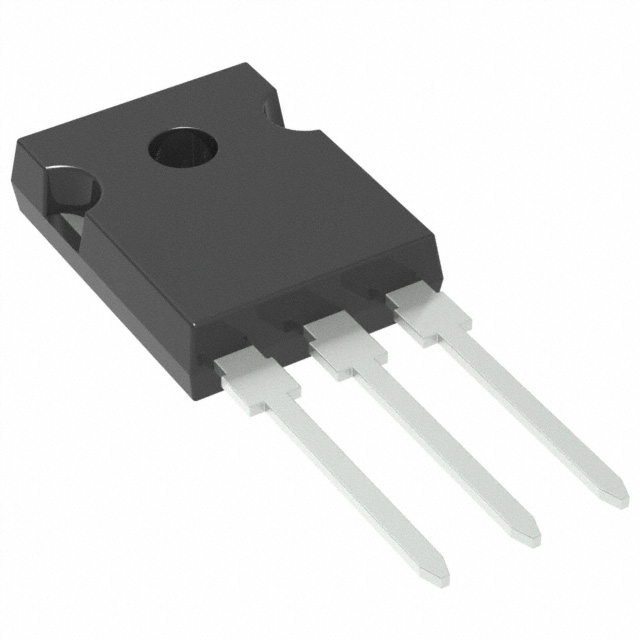

R6030JNZ4C13MOSFET N-CH 600V 30A TO247G |
391 |
|
Техническая документация |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 15V | 143mOhm @ 15A, 15V | 7V @ 5.5mA | 74 nC @ 15 V | ±30V | 2500 pF @ 100 V | - | 370W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247G |
|
|
NTMTS1D6N10MCTXGSINGLE N-CHANNEL POWER MOSFET 10 |
2,873 |
|
Техническая документация |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 36A (Ta), 273A (Tc) | 10V | 1.7mOhm @ 90A, 10V | 4V @ 650µA | 106 nC @ 10 V | ±20V | 7630 pF @ 50 V | - | 5W (Ta), 291W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-DFNW (8.3x8.4) |
|
|
NTBG060N065SC1SILICON CARBIDE (SIC) MOSFET - 4 |
708 |
|
Техническая документация |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 46A (Tc) | 15V, 18V | 70mOhm @ 20A, 18V | 4.3V @ 6.5mA | 74 nC @ 18 V | +22V, -8V | 1473 pF @ 325 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK-7 |
|

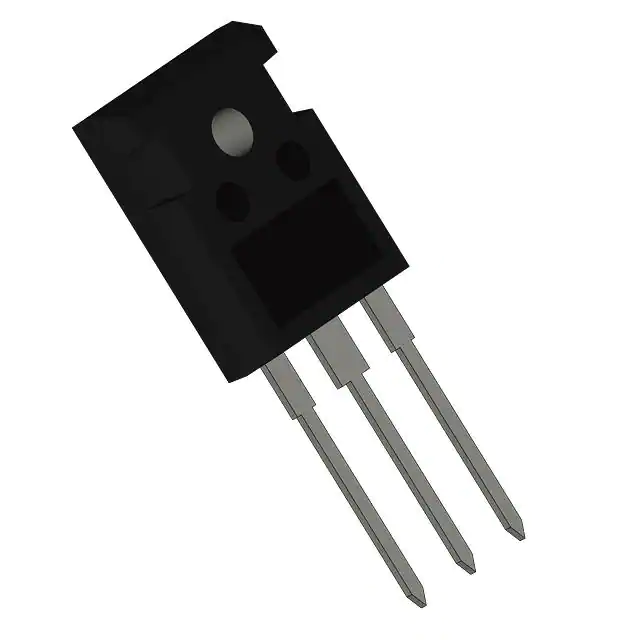

FCH077N65F-F085MOSFET N-CH 650V 54A TO247-3 |
854 |
|
Техническая документация |
SuperFET® II | TO-247-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 54A (Tc) | 10V | 77mOhm @ 27A, 10V | 5V @ 250µA | 164 nC @ 10 V | ±20V | 7162 pF @ 25 V | - | 481W (Tc) | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-247-3 |
|
|
STW34NM60NDMOSFET N-CH 600V 29A TO247 |
588 |
|
Техническая документация |
FDmesh™ II | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 110mOhm @ 14.5A, 10V | 5V @ 250µA | 80.4 nC @ 10 V | ±25V | 2785 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
STW65N80K5MOSFET N-CH 800V 46A TO247 |
439 |
|
Техническая документация |
MDmesh™ K5 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 46A (Tc) | 10V | 80mOhm @ 23A, 10V | 5V @ 100µA | 92 nC @ 10 V | ±30V | 3230 pF @ 100 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
IXFH26N65X2IXFH26N65X2 |
288 |
|
Техническая документация |
HiPerFET™, Ultra X2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 26A (Tc) | 10V | 130mOhm @ 500mA, 10V | 5V @ 2.5mA | 45 nC @ 10 V | ±30V | 2450 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXFH) |
|
|
IXFH6N120MOSFET N-CH 1200V 6A TO247AD |
580 |
|
Техническая документация |
HiPerFET™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 6A (Tc) | 10V | 2.6Ohm @ 3A, 10V | 5V @ 2.5mA | 56 nC @ 10 V | ±20V | 1950 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD (IXFH) |
|
|
SCT4045DW7TL750V, 31A, 7-PIN SMD, TRENCH-STR |
424 |
|
Техническая документация |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 750 V | 31A (Tj) | 18V | 59mOhm @ 17A, 18V | 4.8V @ 8.89mA | 63 nC @ 18 V | +21V, -4V | 1460 pF @ 500 V | - | 93W | 175°C (TJ) | - | - | Surface Mount | TO-263-7L |
|
SCT3160KW7TLSICFET N-CH 1200V 17A TO263-7 |
3,872 |
|
Техническая документация |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 17A (Tc) | - | 208mOhm @ 5A, 18V | 5.6V @ 2.5mA | 42 nC @ 18 V | +22V, -4V | 398 pF @ 800 V | - | 100W | 175°C (TJ) | - | - | Surface Mount | TO-263-7 |
|

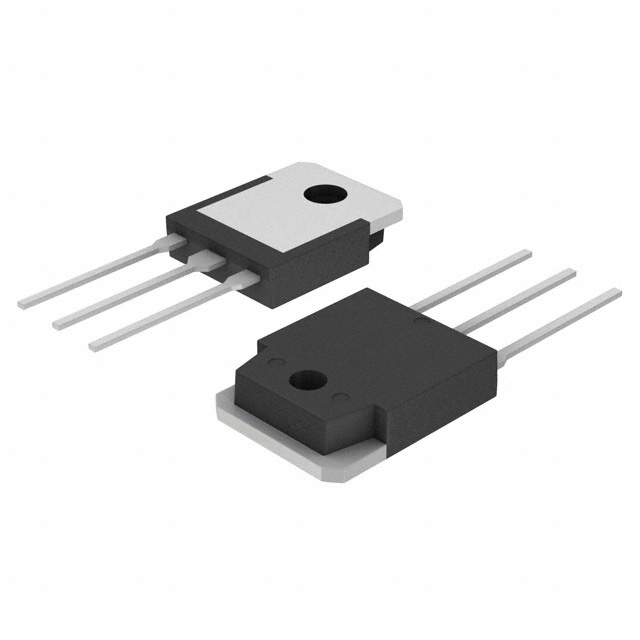

IXTQ120N20PMOSFET N-CH 200V 120A TO3P |
265 |
|
Техническая документация |
Polar | TO-3P-3, SC-65-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 120A (Tc) | 10V | 22mOhm @ 500mA, 10V | 5V @ 250µA | 152 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 714W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3P |
|
|
NVBG095N065SC1SIC MOS D2PAK-7L 650V |
755 |
|
Техническая документация |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | N-Channel | SiCFET (Silicon Carbide) | 650 V | 30A (Tc) | 15V, 18V | 105mOhm @ 12A, 18V | 4.3V @ 4mA | 50 nC @ 18 V | - | 956 pF @ 325 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK-7 |
