DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 3-1223EDC DC CONVERTER +/-15V 3W |
2,700 |
|
Техническая документация |
TMR 3E (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|

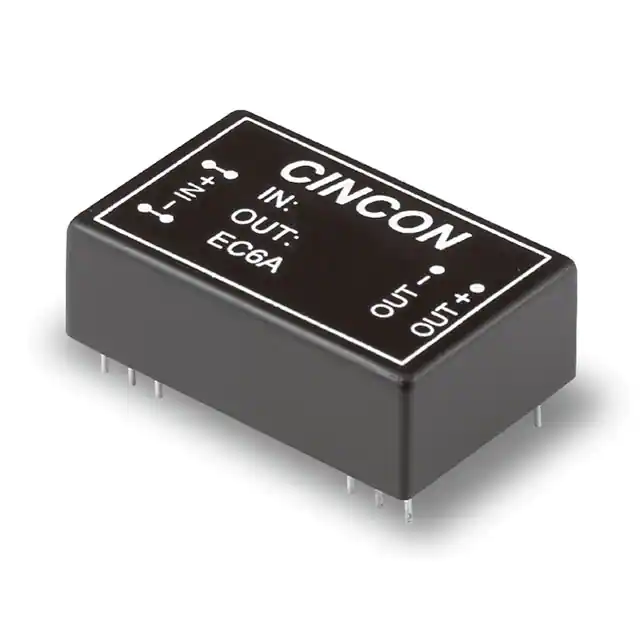

EC6A26DC DC CONVERTER +/-15V 7.5W |
100 |
|
Техническая документация |
EC6A (7.5W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 36V | 72V | 15V | -15V | - | - | 250mA, 250mA | 7.5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
RS-123.3SDC DC CONVERTER 3.3V 2W |
3,470 |
|
Техническая документация |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 500mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS-2409SDC DC CONVERTER 9V 2W |
4,551 |
|
Техническая документация |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
RSO-2412SDC DC CONVERTER 12V 1W |
3,218 |
|
Техническая документация |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS-2412SDC DC CONVERTER 12V 2W |
1,224 |
|
Техническая документация |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 166mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS-1209SDC DC CONVERTER 9V 2W |
2,525 |
|
Техническая документация |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
.jpg)
|
RV-2415SDC DC CONVERTER 15V 2W |
1,971 |
|
Техническая документация |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 132mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm) | - | - | - | - |
|
TSR 1-48150WIDC DC CONVERTER 15V 3SIP |
4,039 |
|
Техническая документация |
TSR 1WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 21V | 72V | 15V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 93% | - | - | Through Hole | 0.48" L x 0.34" W x 0.69" H (12.1mm x 8.6mm x 17.5mm) | - | - | - | - |
|
|
TSR 1-4890WIDC DC CONVERTER 9V 3SIP |
1,160 |
|
Техническая документация |
TSR 1WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 14V | 72V | 9V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | 0.48" L x 0.34" W x 0.69" H (12.1mm x 8.6mm x 17.5mm) | - | - | - | - |
|
|
TSR 1-4833WIDC DC CONVERTER 3.3V 3SIP |
4,409 |
|
Техническая документация |
TSR 1WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 72V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 83% | - | - | Through Hole | 0.48" L x 0.34" W x 0.69" H (12.1mm x 8.6mm x 17.5mm) | - | - | - | - |
|
|
TSR 1-4865WIDC DC CONVERTER 6.5V 3SIP |
1,982 |
|
Техническая документация |
TSR 1WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 72V | 6.5V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 0.48" L x 0.34" W x 0.69" H (12.1mm x 8.6mm x 17.5mm) | - | - | - | - |
|
RW2-2405S/BDC DC CONVERTER 5V 2W |
2,882 |
|
Техническая документация |
ECONOLINE RW2 (2W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.87" L x 0.49" W x 0.33" H (22.1mm x 12.6mm x 8.5mm) | - | - | - | - |
|
|
RW2-2405SDC DC CONVERTER 5V 2W |
3,045 |
|
Техническая документация |
ECONOLINE RW2 (2W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.95" L x 0.57" W x 0.38" H (24.2mm x 14.5mm x 9.7mm) | - | - | - | - |
|
RS3-0512SDC DC CONVERTER 12V 3W |
3,808 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TEL 3-4811DC DC CONVERTER 5V 3W |
1,072 |
|
Техническая документация |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
TEL 3-2413DC DC CONVERTER 15V 3W |
1,484 |
|
Техническая документация |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
EC5SAW-48D05NDC DC CONVERTER +/-5V 10W |
3,977 |
|
Техническая документация |
EC5SAW (10W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 1A, 1A | 10 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | Enable, Active Low | CE | - |
|
IP4803SADC DC CONVERTER 3.3V 3W |
4,657 |
|
Техническая документация |
IP (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 700mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 74% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
EC4AW02DC DC CONVERTER 12V 5.6W |
3,044 |
|
Техническая документация |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 470mA | 5.6 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
