DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRV 1-1521MDC DC CONVERTER +/-5V 1W |
1,005 |
|
Техническая документация |
TRV 1M (1W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 18V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
|
TRV 1-1522MDC DC CONVERTER +/-12V 1W |
3,517 |
|
Техническая документация |
TRV 1M (1W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 18V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
BTB48-05S60DDC DC CONVERTER 5V 3W |
1,855 |
|
Техническая документация |
BTB (3W) | Module | Bulk | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm) | - | - | cUL, UL | - |
|
CC6-2412SR-EDC DC CONVERTER 12-15V 6W |
2,531 |
|
Техническая документация |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12 ~ 15V | - | - | - | 500mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) | - | Enable, Active Low | - | - |
|
CC6-0503SF-EDC DC CONVERTER 3.3V 6W |
1,967 |
|
Техническая документация |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC6-0505SF-EDC DC CONVERTER 5V 5W |
2,449 |
|
Техническая документация |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|

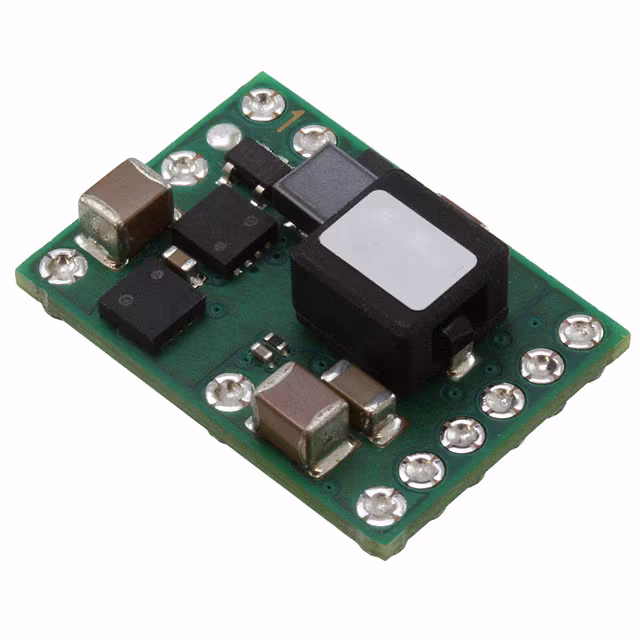

PTH04T240WASDC DC CONVERTER 0.69-3.6V |
2,523 |
|
Техническая документация |
PTH04040W | 11-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.87" L x 0.62" W x 0.35" H (22.1mm x 15.7mm x 8.9mm) | - | - | - | - |
|

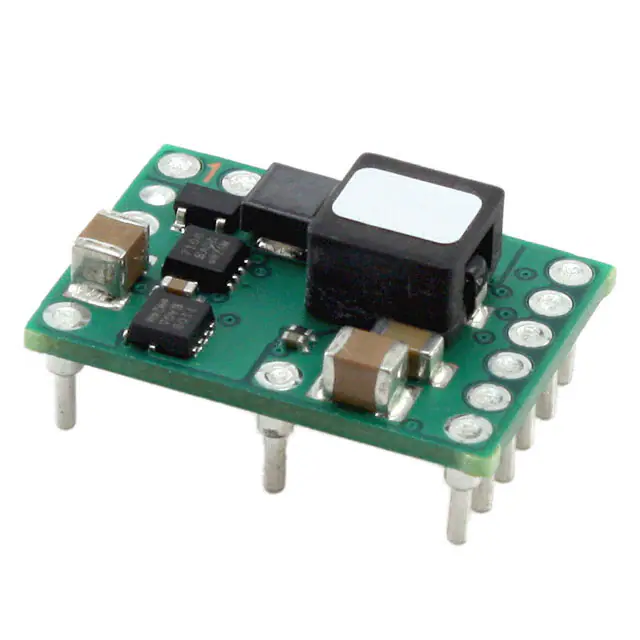

PTH04T240WADDC DC CONVERTER 0.69-3.6V |
3,940 |
|
Техническая документация |
PTH04040W | 11-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | 0.87" L x 0.62" W x 0.33" H (22.1mm x 15.7mm x 8.4mm) | - | - | - | - |
|
PTN78000AASDC DC CONVERTER -15 TO -3V |
2,540 |
|
Техническая документация |
PTN78000A | 5-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 7V | 28.7V | -15 ~ -3V | - | - | - | 1.5A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 85°C | 84% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
TDN 1-4811WIDC DC CONVERTER 5V 1W |
1,811 |
|
Техническая документация |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 78% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
|
TDN 1-4812WIDC DC CONVERTER 12V 1.1W |
3,653 |
|
Техническая документация |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 90mA | 1.1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 81% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
EC3AW01HMDC DC CONVERTER 5V 3W |
2,146 |
|
Техническая документация |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
MEZD41501A-ADC DC CONVERTER 5V |
4,944 |
|
Техническая документация |
- | 6-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 4.2V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | OTP | 0°C ~ 85°C | 97.5% | - | - | Through Hole | 1.06" L x 0.79" W x 0.21" H (27.0mm x 20.0mm x 5.4mm) | - | - | - | - |
|
|
MEZD41502A-ADC DC CONVERTER 5V |
3,504 |
|
Техническая документация |
- | 6-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 4.2V | 5V | - | - | - | 2A | - | - | ITE (Commercial) | OTP | 0°C ~ 85°C | 97.2% | - | - | Through Hole | 1.06" L x 0.79" W x 0.21" H (27.0mm x 20.0mm x 5.4mm) | - | - | - | - |
|
TMR 3-2412WIEDC DC CONVERTER 12V 3W |
1,752 |
|
Техническая документация |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
TMR 3-2410WIEDC DC CONVERTER 3.3V 2.3W |
1,674 |
|
Техническая документация |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
TMR 3-1211WIEDC DC CONVERTER 5V 3W |
1,822 |
|
Техническая документация |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
|
TMR 3-1210WIEDC DC CONVERTER 3.3V 2.3W |
3,169 |
|
Техническая документация |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|

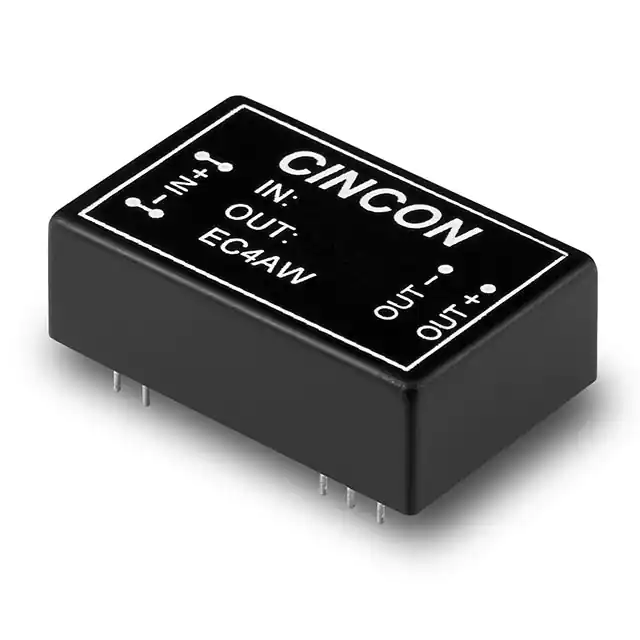

EC4AW03HDC DC CONVERTER 15V 6W |
2,818 |
|
Техническая документация |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|

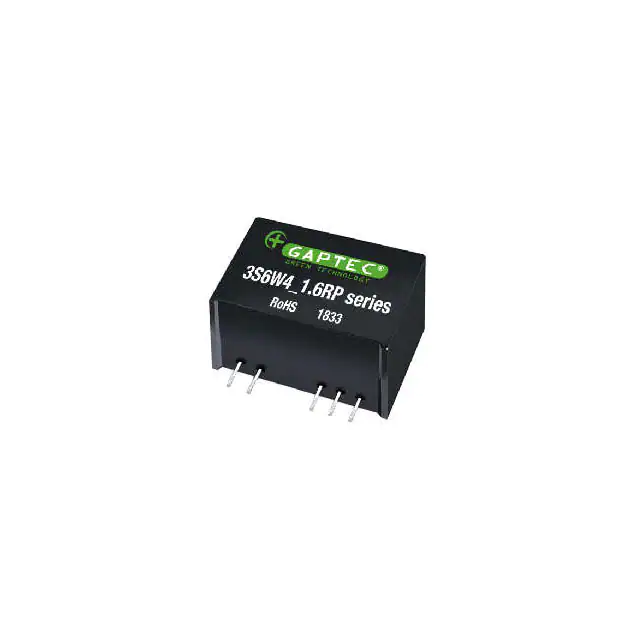

3S6W4_2405S1.6RPISOLATED MODULE DC DC CONVERTERS |
4,462 |
|
Техническая документация |
3S6W4_1.6RP (3W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 76°C (With Derating) | 82% | - | - | Through Hole | 0.67" L x 0.39" W x 0.48" H (17.0mm x 10.0mm x 12.2mm) | - | - | CE | 60950-1; 62368-1 |
