DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGJ6D121510LMC-R7DC DC CONVERTER 15V -10V 6W |
4,614 |
|
Техническая документация |
MGJ6 (6W) | 7-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 9V | 18V | 15V | -10V | - | - | 240mA, 240mA | 6 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 79% | - | - | Surface Mount | 1.57" L x 1.09" W x 0.37" H (40.0mm x 27.8mm x 9.4mm) | - | - | - | - |
|
|
MGJ6D122005LMC-R7DC DC CONVERTER 20V -5V 6W |
3,098 |
|
Техническая документация |
MGJ6 (6W) | 7-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 9V | 18V | 20V | -5V | - | - | 240mA, 240mA | 6 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 79% | - | - | Surface Mount | 1.57" L x 1.09" W x 0.37" H (40.0mm x 27.8mm x 9.4mm) | - | - | - | - |
|
MGJ6D242005SCDC DC CONVERTER 20V -5V 6W |
1,925 |
|
Техническая документация |
MGJ6 (6W) | 8-SIP Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 20V | -5V | - | - | 240mA, 240mA | 6 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 82% | - | - | Through Hole | 1.54" L x 0.43" W x 1.11" H (39.0mm x 11.0mm x 28.1mm) | - | - | - | - |
|
|
MGJ6D121510SCDC DC CONVERTER 15V -10V 6W |
3,698 |
|
Техническая документация |
MGJ6 (6W) | 8-SIP Module | Tray | Active | Isolated Module | 2 | 9V | 18V | 15V | -10V | - | - | 240mA, 240mA | 6 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 80.5% | - | - | Through Hole | 1.54" L x 0.43" W x 1.11" H (39.0mm x 11.0mm x 28.1mm) | - | - | - | - |
|
MGJ6D241505DCDC DC CONVERTER 15V -5V 6W |
1,046 |
|
Техническая документация |
MGJ6 (6W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 15V | -5V | - | - | 300mA, 300mA | 6 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 82% | - | - | Through Hole | 1.79" L x 1.09" W x 0.39" H (45.5mm x 27.8mm x 9.8mm) | - | - | - | - |
|
|
MGJ6D241505SCDC DC CONVERTER 15V -5V 6W |
1,278 |
|
Техническая документация |
MGJ6 (6W) | 8-SIP Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 15V | -5V | - | - | 300mA, 300mA | 6 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 82% | - | - | Through Hole | 1.54" L x 0.43" W x 1.11" H (39.0mm x 11.0mm x 28.1mm) | - | - | - | - |
|

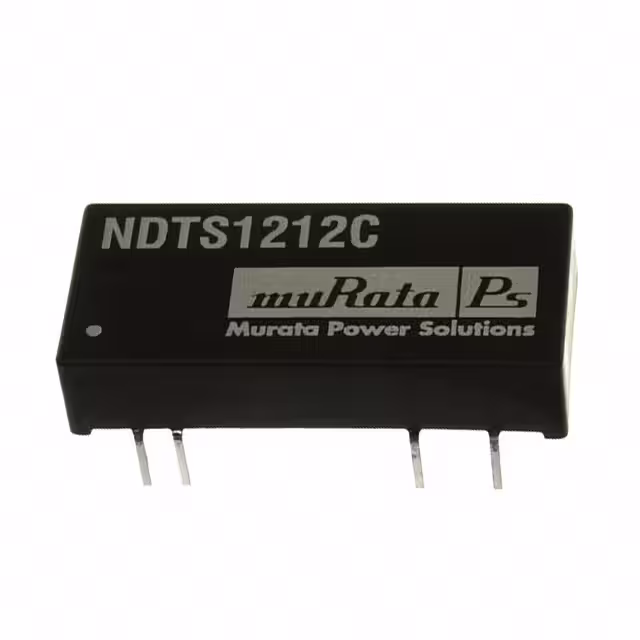

NDTS1212CDC DC CONVERTER 12V 3W |
2,418 |
|
Техническая документация |
NDTS (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm) | - | - | - | - |
|

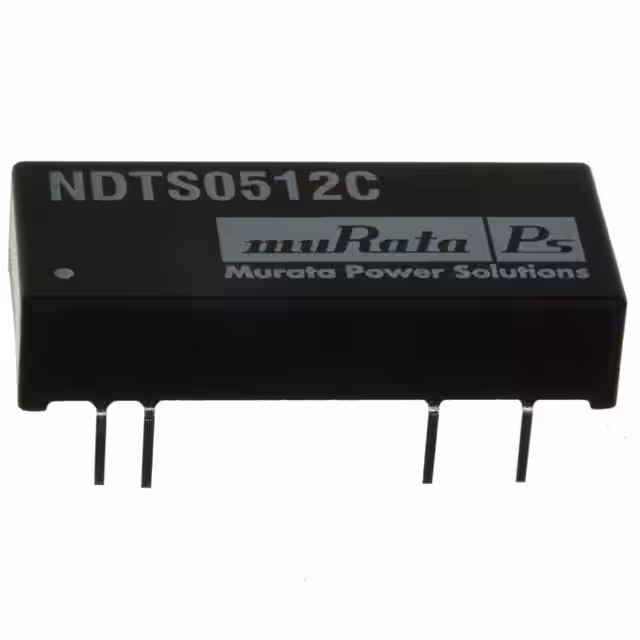

NDTS0512CDC DC CONVERTER 12V 3W |
3,984 |
|
Техническая документация |
NDTS (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm) | - | - | - | - |
|
TEN 3-4823WINDC DC CONVERTER +/-15V 3W |
4,437 |
|
Техническая документация |
TEN 3WIN (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cCSAus | - |
|
TEL 3-4822DC DC CONVERTER +/-12V 3W |
1,778 |
|
Техническая документация |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|

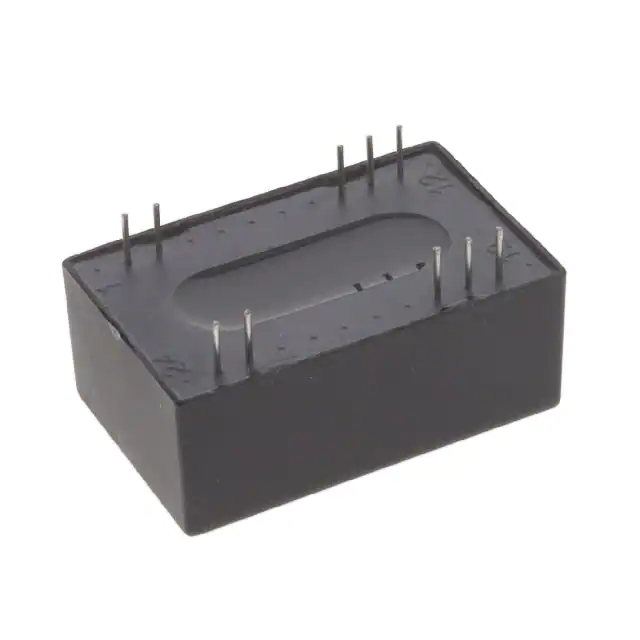

EC3AB31HDC DC CONVERTER 5V 3W |
2,451 |
|
Техническая документация |
EC3AB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | CE, cURus | - |
|

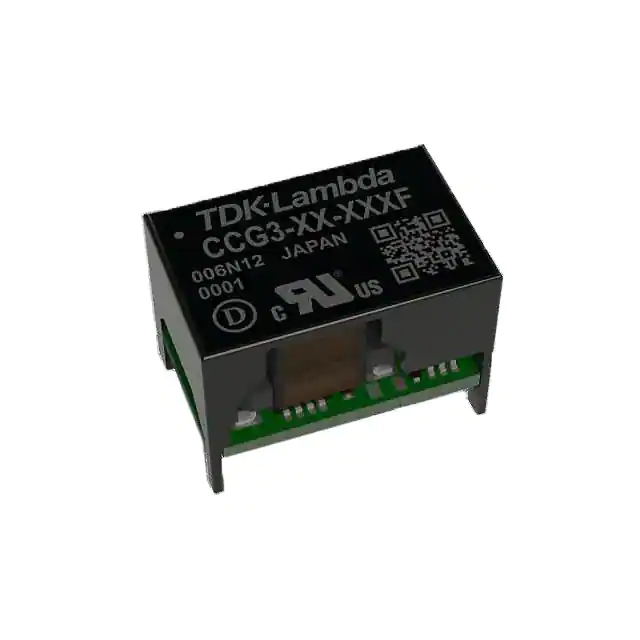

CCG3-12-12DFDC DC CONVERTER +/-12V 3.12W |
4,411 |
|
Техническая документация |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 4.5V | 18V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-24-15DFDC DC CONVERTER +/-15V 3W |
2,304 |
|
Техническая документация |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-24-05SFDC DC CONVERTER 5V 3W |
1,726 |
|
Техническая документация |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-12-05SFDC DC CONVERTER 5V 3W |
2,810 |
|
Техническая документация |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG3-24-12DFDC DC CONVERTER +/-12V 3.12W |
1,028 |
|
Техническая документация |
CCG1R5-10 (3W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
TMR 2-2421WINDC DC CONVERTER +/-5V 2W |
4,647 |
|
Техническая документация |
TMR 2WIN (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
TMR 3-0510EDC DC CONVERTER 3.3V 2.3W |
2,318 |
|
Техническая документация |
TMR 3E (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 71% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
TMR 3-2411EDC DC CONVERTER 5V 3W |
4,850 |
|
Техническая документация |
TMR 3E (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
TMR 2-4811WINDC DC CONVERTER 5V 2W |
4,948 |
|
Техническая документация |
TMR 2WIN (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
