DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCE0348D05DC DC CONVERTER +/-5V 3W |
3,718 |
|
Техническая документация |
JCE (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | 62368-1 |
|
EC4A15H-EDC DC CONVERTER +/-15V 6W |
3,460 |
|
Техническая документация |
EC4A-E (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 3 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
SUCW1R51212CDC DC CONVERTER +/-12V |
3,130 |
|
Техническая документация |
SUCW (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 65mA, 65mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|

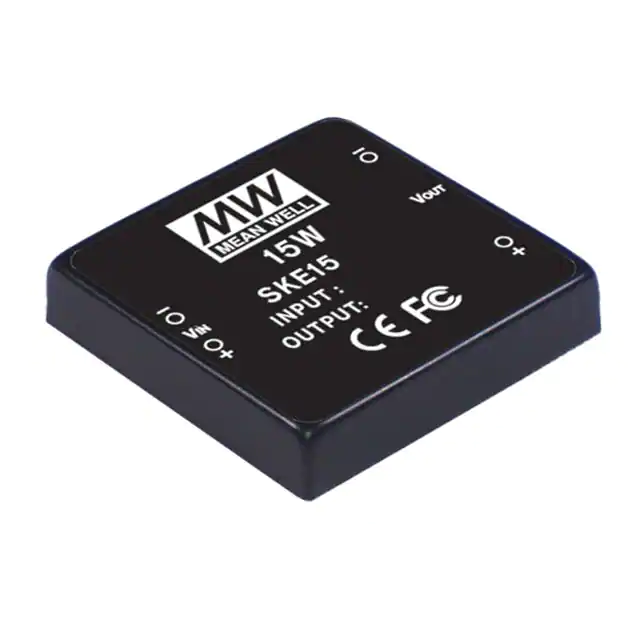

SKE15B-12DC DC CONVERTER 12V 15W |
2,204 |
|
Техническая документация |
SKE15 (15W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.25A | 15 W | 1 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 71°C (With Derating) | 82% | - | - | Through Hole | 2.00" L x 2.00" W x 0.43" H (50.8mm x 50.8mm x 11.0mm) | - | - | - | - |
|
TRV 1-0521MDC DC CONVERTER +/-5V 1W |
1,817 |
|
Техническая документация |
TRV 1M (1W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
TSN 1-2460DC DC CONVERTER -6V 6W |
4,526 |
|
Техническая документация |
TSN 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | -8V | -32V | -6V | - | - | - | 1A | 6 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 92.5% | - | - | Through Hole | 0.46" L x 0.30" W x 0.65" H (11.7mm x 7.5mm x 16.5mm) | - | - | - | - |
|
|
TSN 1-24150DC DC CONVERTER -15V 15W |
3,339 |
|
Техническая документация |
TSN 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | -18V | -32V | -15V | - | - | - | 1A | 15 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | 0.65" L x 0.46" W x 0.30" H (16.5mm x 11.7mm x 7.5mm) | - | - | - | - |
|

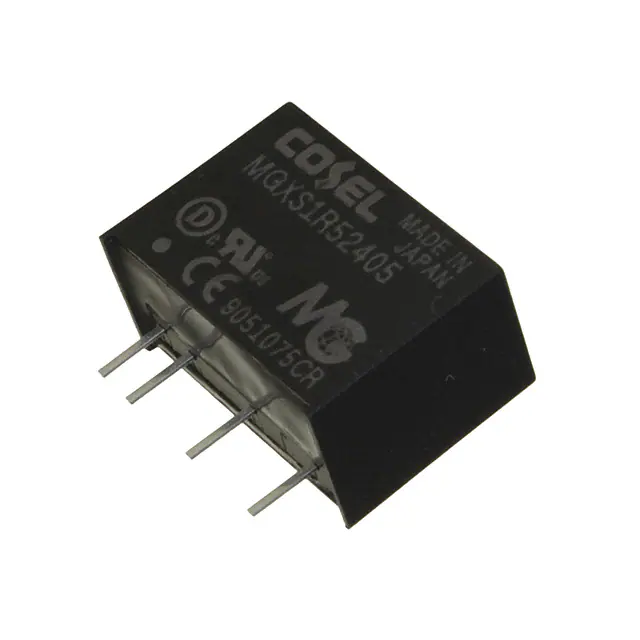

MGXS1R52405DC DC CONVERTER 5V 1.5W |
1,160 |
|
Техническая документация |
MGX (1.5W) | 6-SIP Module, 4 Leads | Bulk | Active | Isolated Module | 1 | 6V | 60V | 5V | - | - | - | 300mA | 1.5 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|

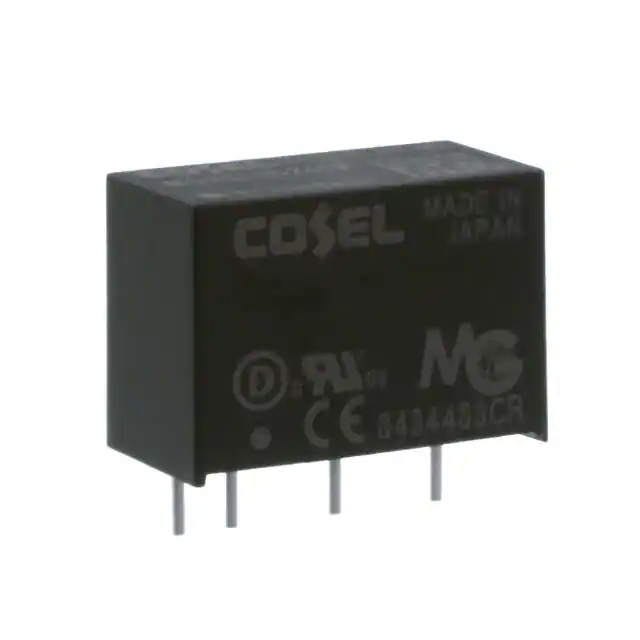

MGXS1R5243R3DC DC CONVERTER 3.3V 1.3W |
4,049 |
|
Техническая документация |
MGX (1.5W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 6V | 60V | 3.3V | - | - | - | 400mA | 1.3 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|

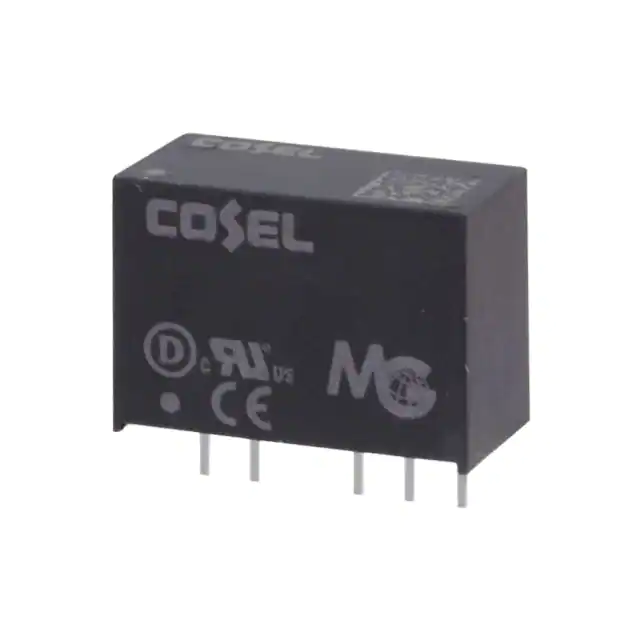

MGXW1R52415DC DC CONVERTER +/-15V 1.5W |
1,766 |
|
Техническая документация |
MGX (1.5W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 6V | 60V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | CE, cURus, DEMKO | - |
|
|
MGXW1R52412DC DC CONVERTER +/-12V 1.6W |
4,419 |
|
Техническая документация |
MGX (1.5W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 6V | 60V | 12V | -12V | - | - | 65mA, 65mA | 1.6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | CE, cURus, DEMKO | - |
|
EC4A14HDC DC CONVERTER +/-12V 5.5W |
4,483 |
|
Техническая документация |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 230mA, 230mA | 5.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
|
EC4A15HDC DC CONVERTER +/-15V 5.7W |
2,595 |
|
Техническая документация |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 190mA, 190mA | 5.7 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
TMR 2-1211WINDC DC CONVERTER 5V 2W |
1,133 |
|
Техническая документация |
TMR 2WIN (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
|
TMR 2-2411WINDC DC CONVERTER 5V 2W |
1,242 |
|
Техническая документация |
TMR 2WIN (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.44" W x 0.37" H (21.8mm x 11.2mm x 9.3mm) | - | - | - | - |
|
|
TMR 2-2413WINDC DC CONVERTER 15V 2W |
4,632 |
|
Техническая документация |
TMR 2WIN (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 134mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
|
TRV 1-2421MDC DC CONVERTER +/-5V 1W |
4,983 |
|
Техническая документация |
TRV 1M (1W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 19.2V | 28.8V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
|
TRV 1-2423MDC DC CONVERTER +/-15V 1W |
1,062 |
|
Техническая документация |
TRV 1M (1W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 19.2V | 28.8V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
BTB05-12S25DDC DC CONVERTER 12V 3W |
2,986 |
|
Техническая документация |
BTB (3W) | Module | Bulk | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm) | - | - | cUL, UL | - |
|
R05P205D/PDC DC CONVERTER +/-5V 2W |
2,675 |
|
Техническая документация |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
