DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 4-12154 WATT DC/DC CONVERTER, INDUSTRI |
3,034 |
|
Техническая документация |
TMR 4 (4W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 166mA | 4 W | 1.92 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | CB, cURus, UL | - |
|
|
TMR 4-12124 WATT DC/DC CONVERTER, INDUSTRI |
1,744 |
|
Техническая документация |
TMR 4 (4W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 333mA | 4 W | 1.92 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | CB, cURus, UL | - |
|
|
TMR 4-24124 WATT DC/DC CONVERTER, INDUSTRI |
3,012 |
|
Техническая документация |
TMR 4 (4W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 333mA | 4 W | 1.92 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | CB, cURus, UL | - |
|
|
TMR 4-48124 WATT DC/DC CONVERTER, INDUSTRI |
3,136 |
|
Техническая документация |
TMR 4 (4W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 333mA | 4 W | 1.92 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | CB, cURus, UL | - |
|

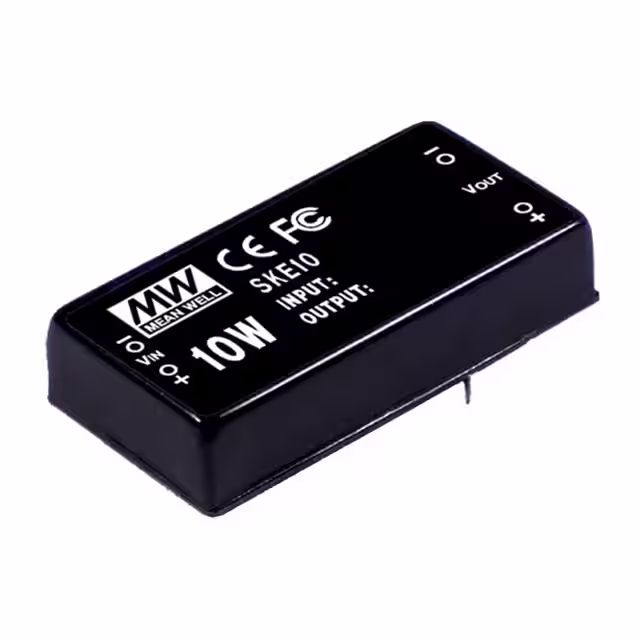

SKE10A-24DC DC CONVERTER 24V 10W |
4,683 |
|
Техническая документация |
SKE10 (10W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 420mA | 10 W | 1 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 71°C (With Derating) | 81% | - | - | Through Hole | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.3mm) | - | - | - | - |
|
EC4SAW-24S33NDC DC CONVERTER 3.3V 5W |
3,196 |
|
Техническая документация |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.5A | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | CE | - |
|
|
EC4SAW-24D12NDC DC CONVERTER +/-12V 6W |
4,758 |
|
Техническая документация |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | CE | - |
|
|
EC4SAW-24D05NDC DC CONVERTER +/-5V 6W |
2,453 |
|
Техническая документация |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | CE | - |
|
R1Z-1205DC DC CONVERTER 5V 1W |
1,224 |
|
Техническая документация |
ECONOLINE R1Z (1W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial), Medical | - | -40°C ~ 70°C | 60% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
|

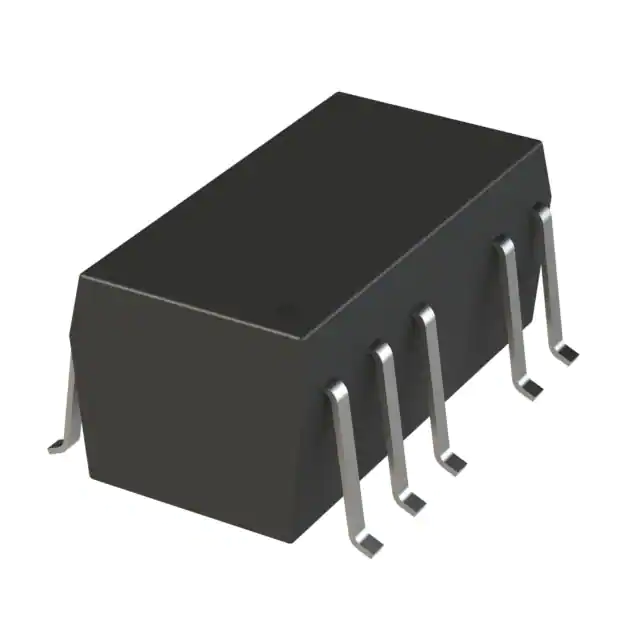

TSV 0505SDC DC CONVERTER 5V 1W |
2,300 |
|
Техническая документация |
TSV (1W) | 22-SMD Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 71% | - | - | Surface Mount | 0.60" L x 0.31" W x 0.27" H (15.2mm x 8.0mm x 7.0mm) | - | - | - | - |
|
|
EC4SAW-48S33NDC DC CONVERTER 3.3V 5W |
3,548 |
|
Техническая документация |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 1.5A | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | CE | - |
|
|
TSV 2415SDC DC CONVERTER 15V 975MW |
4,826 |
|
Техническая документация |
TSV (1W) | 22-SMD Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 65mA | 975 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.60" L x 0.31" W x 0.27" H (15.2mm x 8.0mm x 7.0mm) | - | - | - | - |
|
CCG1R5-24-15DRDC DC CONVERTER +/-15V 1.5W |
2,256 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-SMD Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Surface Mount | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|

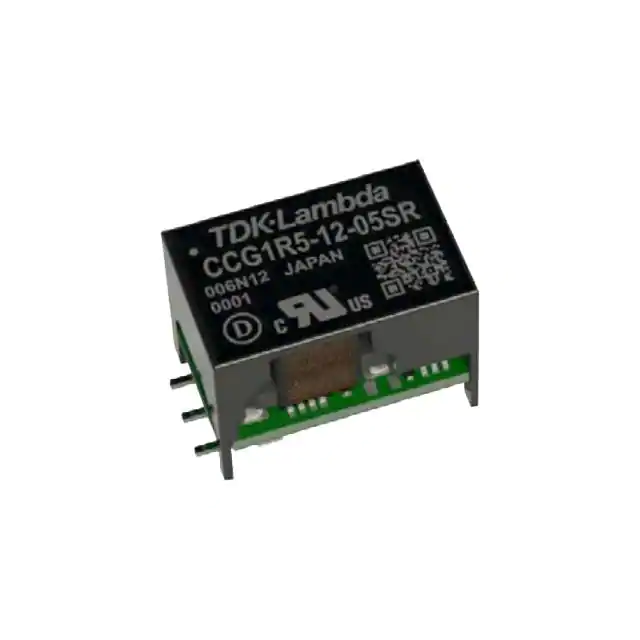

CCG1R5-12-05SRDC DC CONVERTER 5V 1.5W |
3,527 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-SMD Module | Tray | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 300mA | 1.5 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 79% | - | - | Surface Mount | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
REC6A-2405SW/H2DC DC CONVERTER 5V 6W |
4,998 |
|
Техническая документация |
REC6A (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 65°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
CCG1R5-24-12SRDC DC CONVERTER 12V 1.56W |
2,486 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 130mA | 1.6 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 82% | - | - | Surface Mount | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-24-05SRDC DC CONVERTER 5V 1.5W |
1,632 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 300mA | 1.5 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 78% | - | - | Surface Mount | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG1R5-48-15DRDC DC CONVERTER +/-15V 1.5W |
2,103 |
|
Техническая документация |
CCG1R5-10 (1.5W) | 6-SMD Module | Tray | Active | Isolated Module | 2 | 18V | 76V | 15V | -15V | - | - | 50mA, 50mA | 1.5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 76% | - | - | Surface Mount | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
SD02D1215ADC DC CONVERTER +/-15V 2W |
1,064 |
|
Техническая документация |
SD02S/D (2W) | 16-SMD Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 85°C | 78% | - | - | Surface Mount | 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm) | - | - | - | - |
|
TEC 3-4811WIDC DC CONVERTER 5V 3W |
4,891 |
|
Техническая документация |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
