DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DKM10E-15DC DC CONVERTER +/-15V 10W |
1,495 |
|
Техническая документация |
DKM10 (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 4.7V | 9V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
DKM10A-12DC DC CONVERTER +/-12V 10W |
3,485 |
|
Техническая документация |
DKM10 (10W) | 6-DIP Module | - | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEC 3-2423WIDC DC CONVERTER +/-15V 3W |
3,882 |
|
Техническая документация |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 3-2422WIDC DC CONVERTER +/-12V 3W |
1,650 |
|
Техническая документация |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 3-1222WIDC DC CONVERTER +/-12V 3W |
4,234 |
|
Техническая документация |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 3-1223WIDC DC CONVERTER +/-15V 3W |
3,353 |
|
Техническая документация |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 3-1221WIDC DC CONVERTER +/-5V 3W |
1,958 |
|
Техническая документация |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TEC 3-2421WIDC DC CONVERTER +/-5V 3W |
1,007 |
|
Техническая документация |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TEC 3-4822WIDC DC CONVERTER +/-12V 3W |
2,106 |
|
Техническая документация |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEL 2-4821DC DC CONVERTER +/-5V 2W |
2,123 |
|
Техническая документация |
TEL 2 (2W) | 16-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 71% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
|
TEL 2-4823DC DC CONVERTER +/-15V 2W |
1,104 |
|
Техническая документация |
TEL 2 (2W) | 16-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 77% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | - | - |
|
LMO78_2405-3.0NON-ISOLATED POL MODULE DC DC CO |
3,612 |
|
Техническая документация |
LMO78_3.0 | 5-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 10V | 30V | 3 ~ 6V | - | - | - | 3A | 18 W | - | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 0.41" L x 0.24" W x 0.65" H (10.4mm x 6.0mm x 16.5mm) | - | - | - | - |
|
|

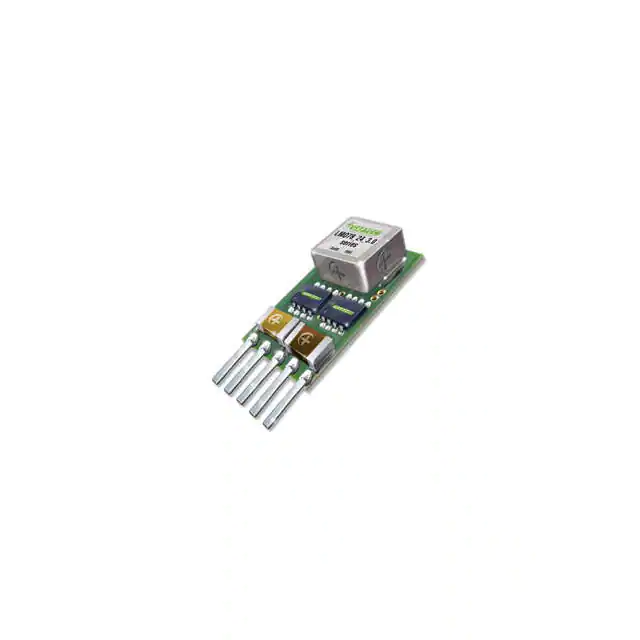

LMO78_2412-3.0NON-ISOLATED POL MODULE DC DC CO |
2,160 |
|
Техническая документация |
LMO78_3.0 | 5-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 10V | 30V | 5 ~ 15V | - | - | - | 3A | 45 W | - | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.41" L x 0.24" W x 0.65" H (10.4mm x 6.0mm x 16.5mm) | - | - | - | - |
.jpg)
|

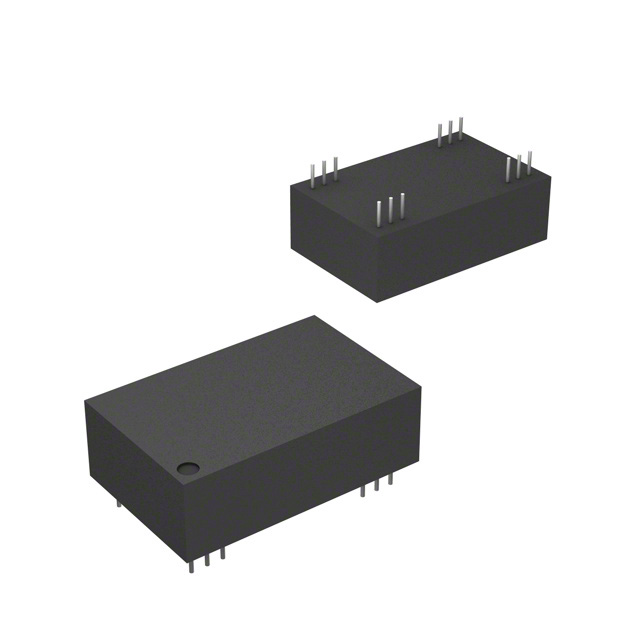

REC3-2405SR/H1DC DC CONVERTER 5V 3W |
2,187 |
|
Техническая документация |
ECONOLINE REC3-SR (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 20.4V | 27.6V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 65% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
EC4A14HMDC DC CONVERTER +/-12V 5.5W |
4,096 |
|
Техническая документация |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 230mA, 230mA | 5.5 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
JTE0324D15DC DC CONVERTER +/-15V 3W |
3,411 |
|
Техническая документация |
JTE (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | 62368-1 |
|
TRV 1-1523MDC DC CONVERTER +/-15V 1W |
2,792 |
|
Техническая документация |
TRV 1M (1W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 18V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
|
JTE0348D05DC DC CONVERTER +/-5V 3W |
4,963 |
|
Техническая документация |
JTE (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | 62368-1 |
|
|
JTE0324D12DC DC CONVERTER +/-12V 3W |
3,773 |
|
Техническая документация |
JTE (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | 62368-1 |
|
|
JTE0324D24DC DC CONVERTER +/-24V 3W |
1,764 |
|
Техническая документация |
JTE (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 63mA, 63mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | 62368-1 |
