FET, MOSFET
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFR1N60APBFMOSFET N-CH 600V 1.4A DPAK |
3,041 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.4A (Tc) | 10V | 7Ohm @ 840mA, 10V | 4V @ 250µA | 14 nC @ 10 V | ±30V | 229 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
FDPF18N20FTMOSFET N-CH 200V 18A TO220F |
1,950 |
|
Техническая документация |
UniFET™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 18A (Tc) | 10V | 140mOhm @ 9A, 10V | 5V @ 250µA | 26 nC @ 10 V | ±30V | 1180 pF @ 25 V | - | 41W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
IRFU9214PBFMOSFET P-CH 250V 2.7A TO251AA |
1,395 |
|
Техническая документация |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 2.7A (Tc) | 10V | 3Ohm @ 1.7A, 10V | 4V @ 250µA | 14 nC @ 10 V | ±20V | 220 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
IRFZ20PBF-BE3MOSFET N-CH 50V 15A TO220AB |
459 |
|
Техническая документация |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 50 V | 15A (Tc) | - | 100mOhm @ 10A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±20V | 860 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
SISS32ADN-T1-GE3MOSFET N-CH 80V 17.4A/63A PPAK |
12,776 |
|
Техническая документация |
TrenchFET® Gen IV | PowerPAK® 1212-8S | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 17.4A (Ta), 63A (Tc) | 7.5V, 10V | 7.3mOhm @ 10A, 10V | 3.6V @ 250µA | 36 nC @ 10 V | ±20V | 1520 pF @ 40 V | - | 5W (Ta), 65.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8S |
|
FCD4N60TMMOSFET N-CH 600V 3.9A DPAK |
10,172 |
|
Техническая документация |
SuperFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.9A (Tc) | 10V | 1.2Ohm @ 2A, 10V | 5V @ 250µA | 16.6 nC @ 10 V | ±30V | 540 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
BUK768R1-40E,118MOSFET N-CH 40V 75A D2PAK |
4,672 |
|
Техническая документация |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 7.2mOhm @ 20A, 10V | 4V @ 1mA | 24 nC @ 10 V | ±20V | 1730 pF @ 25 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | D2PAK |
|
IPA95R1K2P7XKSA1MOSFET N-CH 950V 6A TO220 |
484 |
|
Техническая документация |
CoolMOS™ P7 | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 6A (Tc) | 10V | 1.2Ohm @ 2.7A, 10V | 3.5V @ 140µA | 15 nC @ 10 V | ±20V | 478 pF @ 400 V | - | 27W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
TPH8R008NH,L1QMOSFET N-CH 80V 34A 8SOP |
8,924 |
|
Техническая документация |
U-MOSVIII-H | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 34A (Tc) | 10V | 8mOhm @ 17A, 10V | 4V @ 500µA | 35 nC @ 10 V | ±20V | 3000 pF @ 40 V | - | 1.6W (Ta), 61W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP Advance (5x5) |
|
IRFB7537PBFMOSFET N-CH 60V 173A TO220AB |
3,801 |
|
Техническая документация |
HEXFET®, StrongIRFET™ | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 173A (Tc) | 6V, 10V | 3.3mOhm @ 100A, 10V | 3.7V @ 150µA | 210 nC @ 10 V | ±20V | 7020 pF @ 25 V | - | 230W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRFH7004TRPBFMOSFET N-CH 40V 100A 8PQFN |
3,690 |
|
Техническая документация |
HEXFET®, StrongIRFET™ | 8-VQFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 6V, 10V | 1.4mOhm @ 100A, 10V | 3.9V @ 150µA | 194 nC @ 10 V | ±20V | 6419 pF @ 25 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
IRFBE20PBFMOSFET N-CH 800V 1.8A TO220AB |
1,480 |
|
Техническая документация |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.8A (Tc) | 10V | 6.5Ohm @ 1.1A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 530 pF @ 25 V | - | 54W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
;;2.jpg)
|
STD11N60DM2MOSFET N-CH 650V 10A DPAK |
1,354 |
|
Техническая документация |
MDmesh™ DM2 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 10A (Tc) | 10V | 420mOhm @ 5A, 10V | 5V @ 250µA | 16.5 nC @ 10 V | ±25V | 614 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
SQJ488EP-T1_BE3MOSFET N-CH 100V 42A PPAK SO-8 |
5,700 |
|
Техническая документация |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 4.5V, 10V | 21mOhm @ 7.1A, 10V | 2.5V @ 250µA | 27 nC @ 10 V | ±20V | 978 pF @ 50 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
|
SQJ488EP-T1_GE3MOSFET N-CH 100V 42A PPAK SO-8 |
3,878 |
|
Техническая документация |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 4.5V, 10V | 21mOhm @ 7.4A, 10V | 2.5V @ 250µA | 27 nC @ 10 V | ±20V | 979 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SQJ403EP-T1_GE3MOSFET P-CH 30V 30A PPAK SO-8 |
3,662 |
|
Техническая документация |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 30A (Tc) | 4.5V, 10V | 8.5mOhm @ 10A, 10V | 2.5V @ 250µA | 109 nC @ 10 V | ±20V | 4500 pF @ 15 V | - | 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|
SQJ182EP-T1_GE3AUTOMOTIVE N-CHANNEL 80 V (D-S) |
3,000 |
|
Техническая документация |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 210A (Tc) | 10V | 5mOhm @ 15A, 10V | 3.5V @ 250µA | 96 nC @ 10 V | ±20V | 5392 pF @ 25 V | - | 395W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerPAK® SO-8 |
|

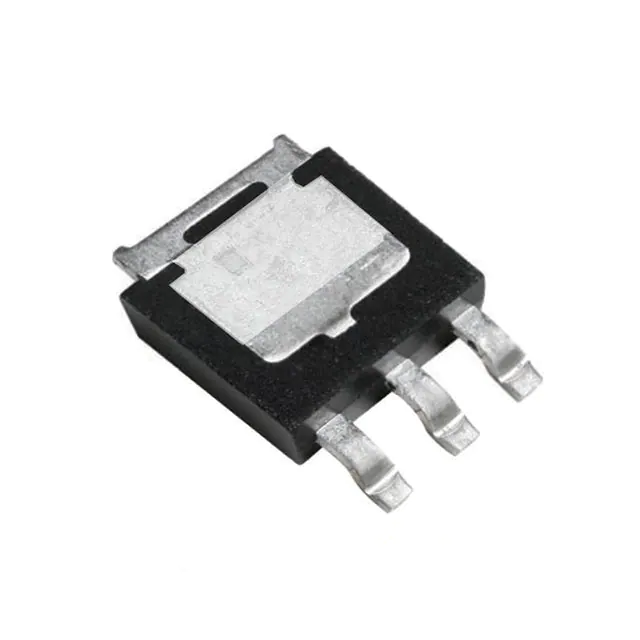

SQR70090ELR_GE3MOSFET N-CH 100V 86A DPAK |
1,788 |
|
Техническая документация |
TrenchFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 86A (Tc) | 4.5V, 10V | 8.7mOhm @ 25A, 10V | 2.5V @ 250µA | 65 nC @ 10 V | ±20V | 3500 pF @ 25 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
SUD70090E-GE3MOSFET N-CH 100V 50A TO252 |
1,418 |
|
Техническая документация |
ThunderFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 7.5V, 10V | 8.9mOhm @ 20A, 10V | 4V @ 250µA | 50 nC @ 10 V | ±20V | 1950 pF @ 50 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
RSS100N03HZGTBNCH 30V 10A AUTOMOTIVE POWER MOS |
904 |
|
Техническая документация |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4V, 10V | 13.3mOhm @ 10A, 10V | 2.5V @ 1mA | 20 nC @ 5 V | ±20V | 1070 pF @ 10 V | - | 2W (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOP |
