ISABELLENHÜTTE (ISA) ISA-PLAN® Точные силовые резисторы – SMT серия

Детали статьи

ISABELLENHÜTTE (ISA) – Основанная в 1482 году и базирующаяся в Германии, компания ISABELLENHÜTTE первой в мире разработала манганиновый резистивный сплав (марганец-никель-медь) в 1889 году, а в 1987 году выпустила первый в мире поверхностный миллиомный шунт для измерения тока. Сегодня это мировой лидер в производстве прецизионных микросопротивлений. Компания долгое время поставляет продукцию и техническую поддержку таким известным клиентам, как BOSCH, HELLA и CONTINENTAL. Для приобретения продукции обращайтесь в Bomkey Electronics.

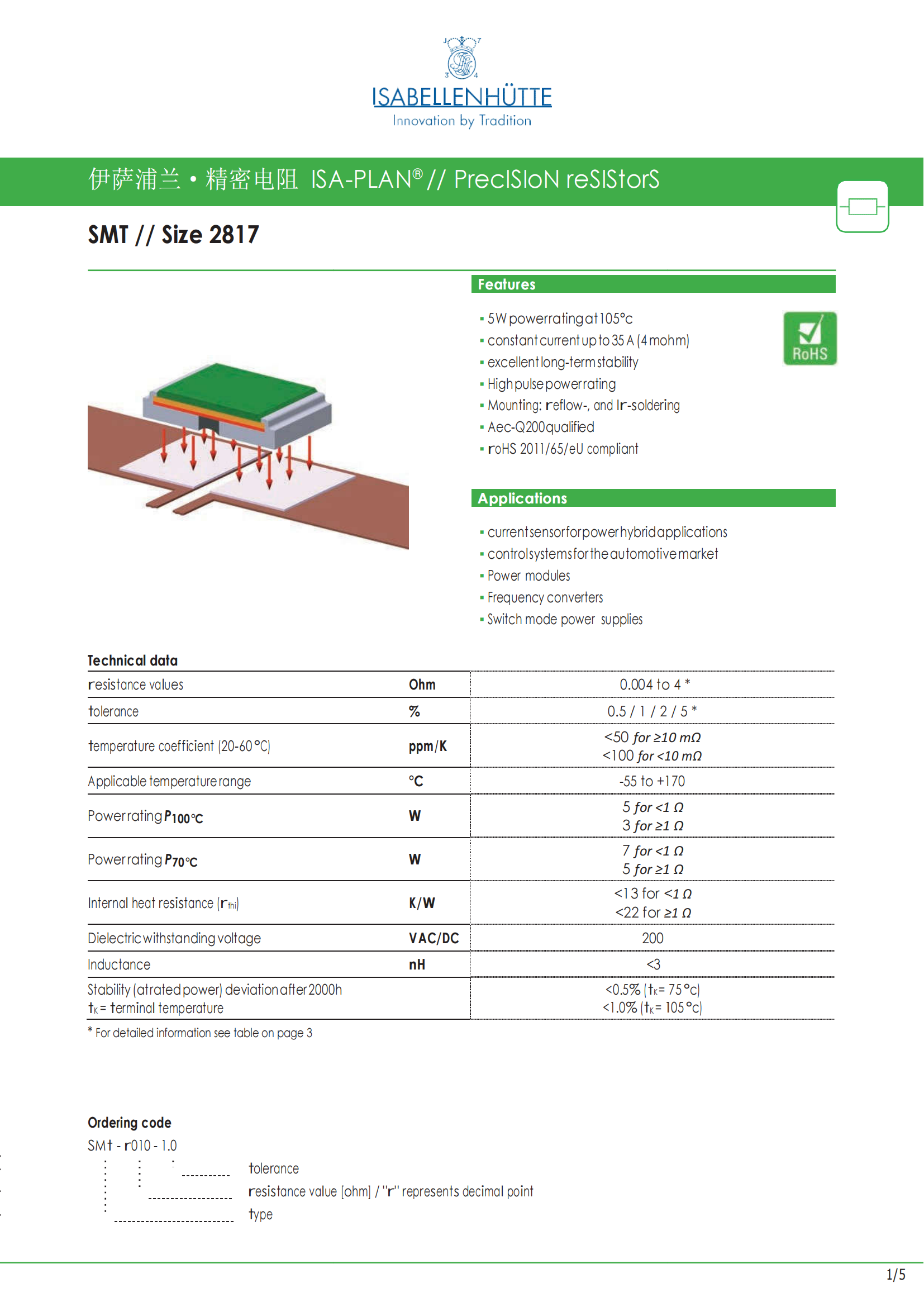

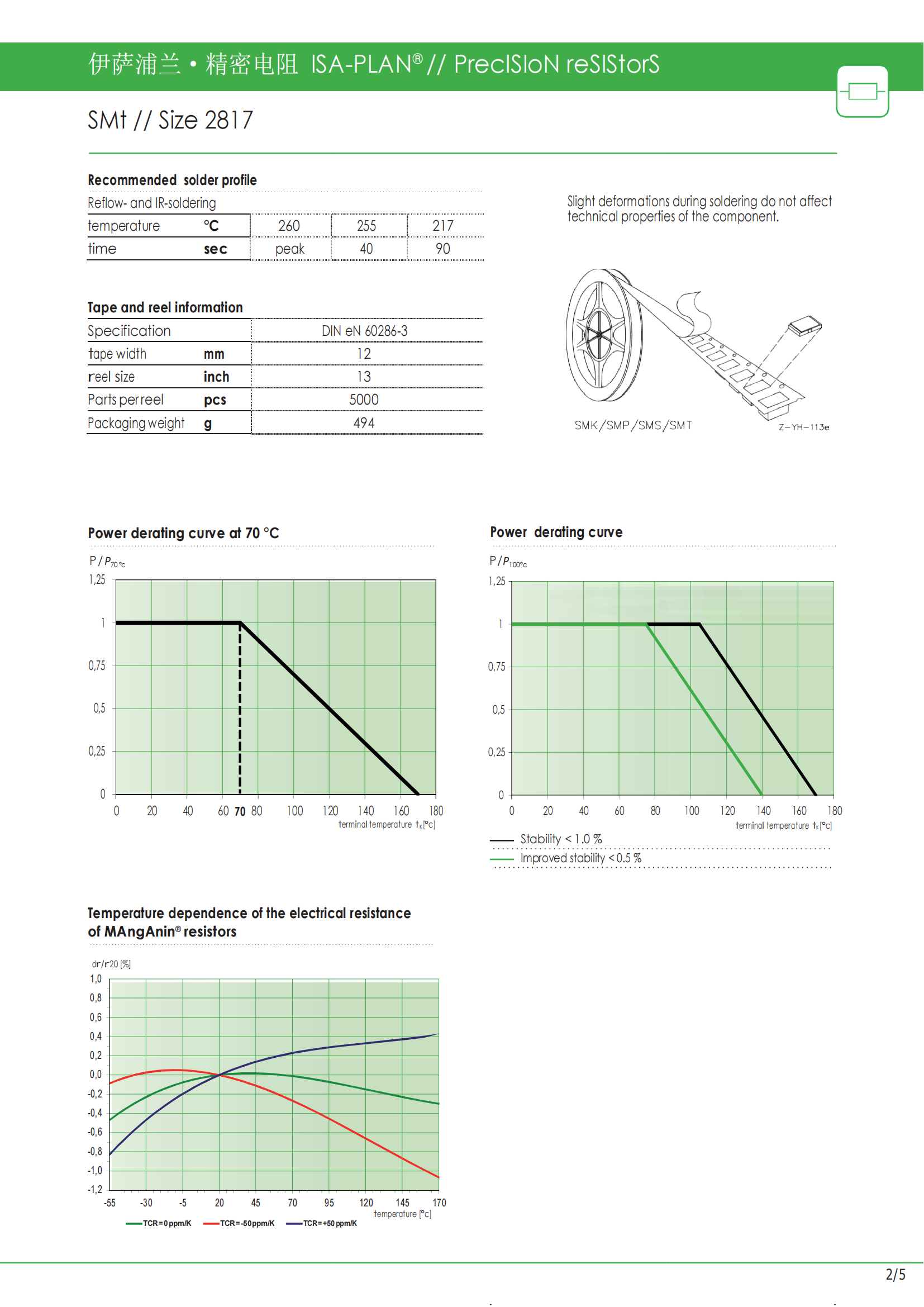

Прецизионный резистор ISA-PLAN® серии SMT (размер 2817)

Характеристики

Мощность 5W
Постоянный ток до 35A
Превосходная долговременная стабильность
Высокая импульсная мощность

Применение в автомобильной промышленности

Системы управления
Силовые модули
Частотные преобразователи
Импульсные источники питания

Описание продукта

Модель

Category	SMT Series Part NO.	Size	Resistance(mΩ、Ω)	Tolerance(%)	Power (Watts)	TRC(ppm/K)
Precision Alloy Resistor	SMT-R004-1.0	2817	4mΩ	±1%	7W	±100ppm/K
	SMT-R004-5.0	2817	4mΩ	±5%	7W	±100ppm/K
	SMT-R0047-5.0	2817	4.7mΩ	±5%	7W	±100ppm/K
	SMT-R005-0.5	2817	5mΩ	±0.5%	7W	±100ppm/K
	SMT-R005-1.0	2817	5mΩ	±1%	7W	±100ppm/K
	SMT-R005-2.0	2817	5mΩ	±2%	7W	±100ppm/K
	SMT-R005-5.0	2817	5mΩ	±5%	7W	±100ppm/K
	SMT-R0056-1.0	2817	5.6mΩ	±1%	7W	±100ppm/K
	SMT-R0068-1.0	2817	6.8mΩ	±1%	7W	±100ppm/K
	SMT-R0068-2.0	2817	6.8mΩ	±2%	7W	±100ppm/K
	SMT-R0068-5.0	2817	6.8mΩ	±5%	7W	±100ppm/K
	SMT-R008-1.0	2817	8mΩ	±1%	7W	±100ppm/K
	SMT-R008-5.0	2817	8mΩ	±5%	7W	±100ppm/K
	SMT-R0091-1.0	2817	9.1mΩ	±1%	7W	±100ppm/K
	SMT-R010-0.5	2817	10mΩ	±0.5%	7W	±50ppm/K
	SMT-R010-1.0	2817	10mΩ	±1%	7W	±50ppm/K
	SMT-R010-2.0	2817	10mΩ	±2%	7W	±50ppm/K
	SMT-R010-5.0	2817	10mΩ	±5%	7W	±50ppm/K
	SMT-R0135-1.0	2817	13.5mΩ	±1%	7W	±50ppm/K
	SMT-R014-1.0	2817	14mΩ	±1%	7W	±50ppm/K
	SMT-R015-1.0	2817	15mΩ	±1%	7W	±50ppm/K
	SMT-R015-5.0	2817	15mΩ	±5%	7W	±50ppm/K
	SMT-R018-1.0	2817	18mΩ	±1%	7W	±50ppm/K
	SMT-R018-5.0	2817	18mΩ	±5%	7W	±50ppm/K
	SMT-R020-1.0	2817	20mΩ	±1%	7W	±50ppm/K
	SMT-R022-1.0	2817	22mΩ	±1%	7W	±50ppm/K
	SMT-R022-5.0	2817	22mΩ	±5%	7W	±50ppm/K
	SMT-R025-0.5	2817	25mΩ	±0.5%	7W	±50ppm/K
	SMT-R025-1.0	2817	25mΩ	±1%	7W	±50ppm/K
	SMT-R027-1.0	2817	27mΩ	±1%	7W	±50ppm/K
	SMT-R030-1.0	2817	30mΩ	±1%	7W	±50ppm/K
	SMT-R033-0.5	2817	33mΩ	±0.5%	7W	±50ppm/K
	SMT-R033-1.0	2817	33mΩ	±1%	7W	±50ppm/K
	SMT-R039-1.0	2817	39mΩ	±1%	7W	±50ppm/K
	SMT-R040-1.0	2817	40mΩ	±1%	7W	±50ppm/K
	SMT-R047-1.0	2817	47mΩ	±1%	7W	±50ppm/K
	SMT-R047-2.0	2817	47mΩ	±2%	7W	±50ppm/K
	SMT-R047-5.0	2817	47mΩ	±5%	7W	±50ppm/K
	SMT-R050-0.5	2817	50mΩ	±0.5%	7W	±50ppm/K
	SMT-R050-1.0	2817	50mΩ	±1%	7W	±50ppm/K
	SMT-R056-1.0	2817	56mΩ	±1%	7W	±50ppm/K
	SMT-R068-0.5	2817	68mΩ	±0.5%	7W	±50ppm/K
	SMT-R068-1.0	2817	68mΩ	±1%	7W	±50ppm/K
	SMT-R068-2.0	2817	68mΩ	±2%	7W	±50ppm/K
	SMT-R082-1.0	2817	82mΩ	±1%	7W	±50ppm/K
	SMT-R100-0.5	2817	100mΩ	±0.5%	7W	±50ppm/K
	SMT-R100-1.0	2817	100mΩ	±1%	7W	±50ppm/K
	SMT-R100-2.0	2817	100mΩ	±2%	7W	±50ppm/K
	SMT-R100-5.0	2817	100mΩ	±5%	7W	±50ppm/K
	SMT-R120-1.0	2817	120mΩ	±1%	7W	±50ppm/K
	SMT-R150-1.0	2817	150mΩ	±1%	7W	±50ppm/K
	SMT-R170-1.0	2817	170mΩ	±1%	7W	±50ppm/K
	SMT-R170-2.0	2817	170mΩ	±2%	7W	±50ppm/K
	SMT-R180-1.0	2817	180mΩ	±1%	7W	±50ppm/K
	SMT-R200-1.0	2817	200mΩ	±1%	7W	±50ppm/K
	SMT-R220-1.0	2817	220mΩ	±1%	7W	±50ppm/K
	SMT-R220-5.0	2817	220mΩ	±5%	7W	±50ppm/K
	SMT-R250-1.0	2817	250mΩ	±1%	7W	±50ppm/K
	SMT-R270-1.0	2817	270mΩ	±1%	7W	±50ppm/K
	SMT-R270-2.0	2817	270mΩ	±2%	7W	±50ppm/K
	SMT-R330-1.0	2817	330mΩ	±1%	7W	±50ppm/K
	SMT-R390-1.0	2817	390mΩ	±1%	7W	±50ppm/K
	SMT-R400-0.5	2817	400mΩ	±0.5%	7W	±50ppm/K
	SMT-R470-1.0	2817	470mΩ	±1%	7W	±50ppm/K
SMT-R470-2.0	2817	470mΩ	±2%	7W	±50ppm/K
SMT-R500-0.5	2817	500mΩ	±0.5%	7W	±50ppm/K
SMT-R500-1.0	2817	500mΩ	±1%	7W	±50ppm/K
SMT-R560-1.0	2817	560mΩ	±1%	7W	±50ppm/K
SMT-R680-1.0	2817	680mΩ	±1%	7W	±50ppm/K
SMT-R820-1.0	2817	820mΩ	±1%	7W	±50ppm/K
SMT-1R00-0.5	2817	1Ω	±0.5%	5W	±50ppm/K
SMT-1R00-1.0	2817	1Ω	±1%	5W	±50ppm/K
SMT-1R50-1.0	2817	1.5Ω	±1%	5W	±50ppm/K
SMT-1R80-1.0	2817	1.8Ω	±1%	5W	±50ppm/K
SMT-2R00-1.0	2817	2Ω	±1%	5W	±50ppm/K
SMT-2R20-1.0	2817	2.2Ω	±1%	5W	±50ppm/K
SMT-2R70-1.0	2817	2.7Ω	±1%	5W	±50ppm/K
SMT-3R00-5.0	2817	3Ω	±5%	5W	±50ppm/K
SMT-3R30-1.0	2817	3.3Ω	±1%	5W	±50ppm/K
SMT-3R90-1.0	2817	3.9Ω	±1%	5W	±50ppm/K
SMT-4R00-1.0	2817	4Ω	±1%	5W	±50ppm/K
SMT-4R70-1.0	2817	4.7Ω	±1%	5W	±50ppm/K
SMT-R000	2817	0Ω	-	2W	-

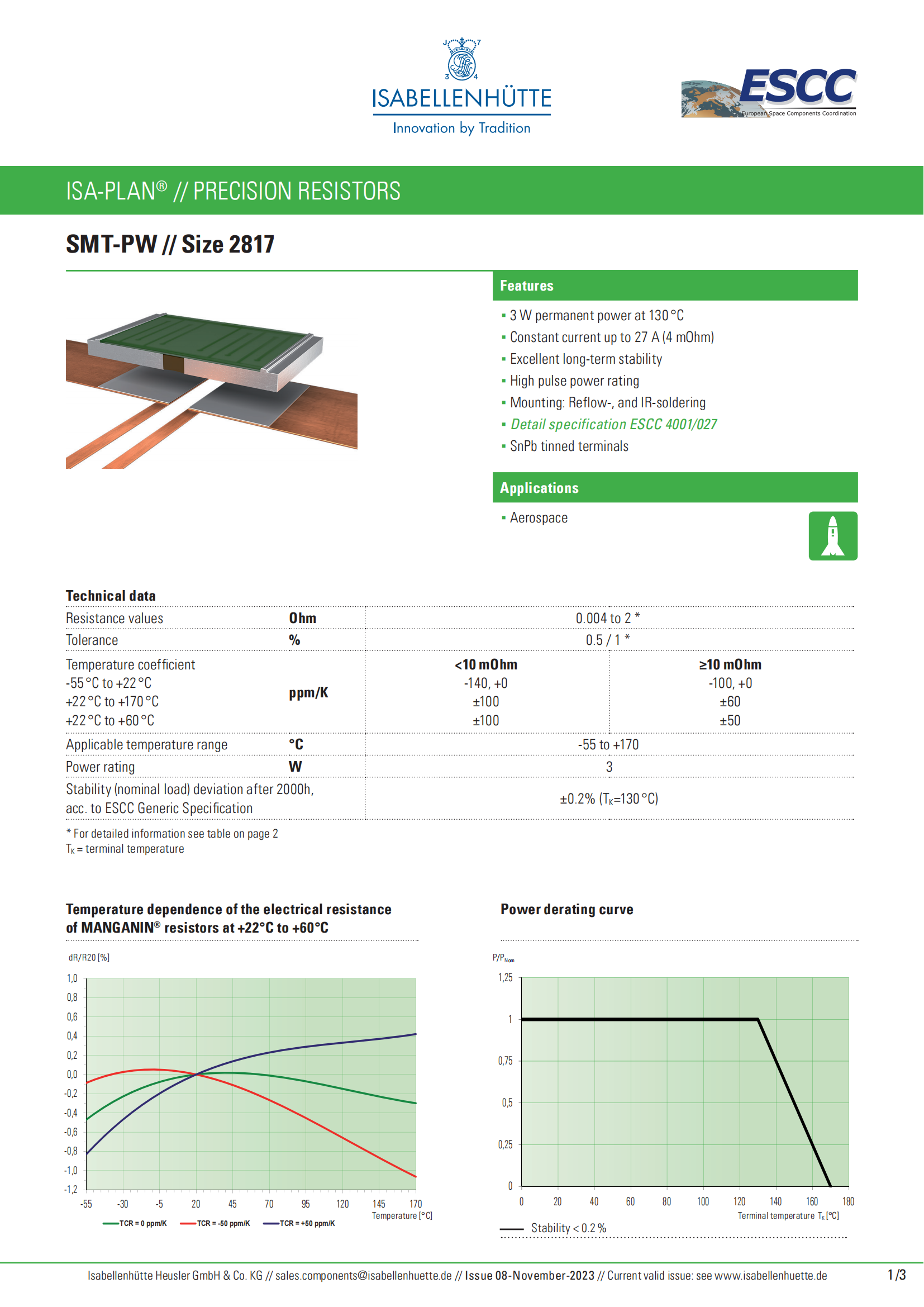

Прецизионные резисторы ISA-PLAN® серии SMT-PW соответствуют самым высоким требованиям надежности, точности и долговечности, удовлетворяют стандартам качества ESCC 4001 и применяются в различных аэрокосмических проектах, включая навигационную систему Galileo и автоматический транспортный корабль Jules Verne.

Особенности

Постоянная мощность 3 Вт при 130 °C
Постоянный ток до 27 А (4 мОм)
Превосходная долговременная стабильность
Высокий показатель импульсной мощности
Монтаж: пайка оплавлением и ИК-пайка
Детальные спецификации ESCC 4001/027
Выводы с оловянно-свинцовой пайкой

Применение

Авиакосмическая промышленность

Описание продукта

Модель

Category	SMT-PW Series Part NO.	Size	Resistance(mΩ、Ω)	Tolerance(%)	Power (Watts)	TRC(ppm/K)	ESCC NO.
Aerospace-Grade Precision Alloy Resistor	SMT-R004-1.0-PW	2817	4mΩ	±1%	3W	±100ppm/K	400102706R004F
	SMT-R005-0.5-PW	2817	5mΩ	±0.5%	3W	±100ppm/K	400102706R005D
	SMT-R005-1.0-PW	2817	5mΩ	±1%	3W	±100ppm/K	400102706R005F
	SMT-R0068-1.0-PW	2817	6.8mΩ	±1%	3W	±100ppm/K	400102706R0068F
	SMT-R008-0.5-PW	2817	8mΩ	±0.5%	3W	±100ppm/K	400102706R008D
	SMT-R010-0.5-PW	2817	10mΩ	±0.5%	3W	±50ppm/K	400102703R010D
	SMT-R010-1.0-PW	2817	10mΩ	±1%	3W	±50ppm/K	400102703R010F
	SMT-R015-0.5-PW	2817	15mΩ	±0.5%	3W	±50ppm/K	400102703R015D
	SMT-R015-1.0-PW	2817	15mΩ	±1%	3W	±50ppm/K	400102703R015F
	SMT-R018-0.5-PW	2817	18mΩ	±0.5%	3W	±50ppm/K	400102703R018D
	SMT-R020-0.5-PW	2817	20mΩ	±0.5%	3W	±50ppm/K	400102703R020D
	SMT-R020-1.0-PW	2817	20mΩ	±1%	3W	±50ppm/K	400102703R020F
	SMT-R022-0.5-PW	2817	22mΩ	±0.5%	3W	±50ppm/K	400102703R022D
	SMT-R022-1.0-PW	2817	22mΩ	±1%	3W	±50ppm/K	400102703R022F
	SMT-R025-1.0-PW	2817	25mΩ	±1%	3W	±50ppm/K	400102703R025F
	SMT-R027-0.5-PW	2817	27mΩ	±0.5%	3W	±50ppm/K	400102703R027D
	SMT-R030-0.5-PW	2817	30mΩ	±0.5%	3W	±50ppm/K	400102703R030D
	SMT-R033-1.0-PW	2817	33mΩ	±1%	3W	±50ppm/K	400102703R033F
	SMT-R039-0.5-PW	2817	39mΩ	±0.5%	3W	±50ppm/K	400102703R039D
	SMT-R039-1.0-PW	2817	39mΩ	±1%	3W	±50ppm/K	400102703R039F
	SMT-R040-1.0-PW	2817	40mΩ	±1%	3W	±50ppm/K	400102703R040F
	SMT-R047-0.5-PW	2817	47mΩ	±0.5%	3W	±50ppm/K	400102703R047D
	SMT-R047-1.0-PW	2817	47mΩ	±1%	3W	±50ppm/K	400102703R047F
	SMT-R050-0.5-PW	2817	50mΩ	±0.5%	3W	±50ppm/K	400102703R050D
	SMT-R050-1.0-PW	2817	50mΩ	±1%	3W	±50ppm/K	400102703R050F
	SMT-R056-0.5-PW	2817	56mΩ	±0.5%	3W	±50ppm/K	400102703R056D
	SMT-R068-1.0-PW	2817	68mΩ	±1%	3W	±50ppm/K	400102703R068F
	SMT-R082-0.5-PW	2817	82mΩ	±0.5%	3W	±50ppm/K	400102703R082D
	SMT-R100-0.5-PW	2817	100mΩ	±0.5%	3W	±50ppm/K	400102703R100D
	SMT-R100-1.0-PW	2817	100mΩ	±1%	3W	±50ppm/K	400102703R100F
	SMT-R120-1.0-PW	2817	120mΩ	±1%	3W	±50ppm/K	400102703R120F
	SMT-R150-1.0-PW	2817	150mΩ	±1%	3W	±50ppm/K	400102703R150F
	SMT-R180-0.5-PW	2817	180mΩ	±0.5%	3W	±50ppm/K	400102703R180D
	SMT-R180-1.0-PW	2817	180mΩ	±1%	3W	±50ppm/K	400102703R180F
	SMT-R200-0.5-PW	2817	200mΩ	±0.5%	3W	±50ppm/K	400102703R200D
	SMT-R220-0.5-PW	2817	220mΩ	±0.5%	3W	±50ppm/K	400102703R220D
	SMT-R220-1.0-PW	2817	220mΩ	±1%	3W	±50ppm/K	400102703R220F
	SMT-R270-0.5-PW	2817	270mΩ	±0.5%	3W	±50ppm/K	400102703R270D
	SMT-R270-1.0-PW	2817	270mΩ	±1%	3W	±50ppm/K	400102703R270F
	SMT-R330-0.5-PW	2817	330mΩ	±0.5%	3W	±50ppm/K	400102703R330D
	SMT-R330-1.0-PW	2817	330mΩ	±1%	3W	±50ppm/K	400102703R330F
	SMT-R390-1.0-PW	2817	390mΩ	±1%	3W	±50ppm/K	400102703R390F
	SMT-R470-0.5-PW	2817	470mΩ	±0.5%	3W	±50ppm/K	400102703R470D
	SMT-R470-1.0-PW	2817	470mΩ	±1%	3W	±50ppm/K	400102703R470F
	SMT-R500-0.5-PW	2817	500mΩ	±0.5%	3W	±50ppm/K	400102703R500D
	SMT-R560-1.0-PW	2817	560mΩ	±1%	3W	±50ppm/K	400102703R560F
	SMT-R680-0.5-PW	2817	680mΩ	±0.5%	3W	±50ppm/K	400102703R680D
	SMT-R820-1.0-PW	2817	820mΩ	±1%	3W	±50ppm/K	400102703R820F
	SMT-1R00-0.5-PW	2817	1Ω	±0.5%	3W	±50ppm/K	4001027031R00D
	SMT-1R00-1.0-PW	2817	1Ω	±1%	3W	±50ppm/K	4001027031R00F
	SMT-1R20-1.0-PW	2817	1.2Ω	±1%	3W	±50ppm/K	4001027031R20F
	SMT-1R50-1.0-PW	2817	1.5Ω	±1%	3W	±50ppm/K	4001027031R50F
	SMT-1R80-1.0-PW	2817	1.8Ω	±1%	3W	±50ppm/K	4001027031R80F
	SMT-2R00-0.5-PW	2817	2Ω	±0.5%	3W	±50ppm/K	4001027032R00D
	SMT-2R00-1.0-PW	2817	2Ω	±1%	3W	±50ppm/K	4001027032R00F
