FET, MOSFET
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

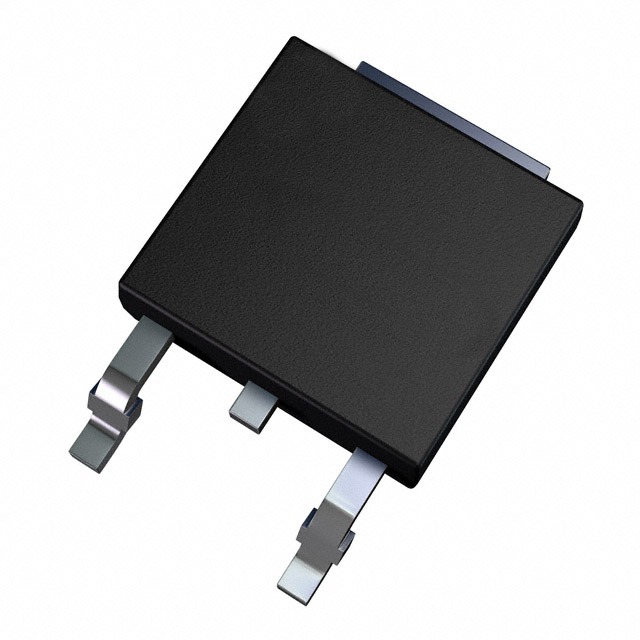

AOD7N65MOSFET N-CH 650V 7A TO252 |
7,296 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 7A (Tc) | 10V | 1.56Ohm @ 3.5A, 10V | 4.5V @ 250µA | 24 nC @ 10 V | ±30V | 1180 pF @ 25 V | - | 178W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
AOD9N50MOSFET N-CH 500V 9A TO252 |
7,184 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 500 V | 9A (Tc) | 10V | 860mOhm @ 4.5A, 10V | 4.5V @ 250µA | 24 nC @ 10 V | ±30V | 1160 pF @ 25 V | - | 178W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
IPD50N08S413ATMA1MOSFET N-CH 80V 50A TO252-3 |
4,138 |
|
Техническая документация |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 50A (Tc) | 10V | 13.2mOhm @ 50A, 10V | 4V @ 33µA | 30 nC @ 10 V | ±20V | 1711 pF @ 25 V | - | 72W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-313 |
|
IRFH8311TRPBFMOSFET N CH 30V 32A PQFN5X6 |
42,714 |
|
Техническая документация |
HEXFET® | 8-TQFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 32A (Ta), 169A (Tc) | 4.5V, 10V | 2.1mOhm @ 20A, 10V | 2.35V @ 100µA | 66 nC @ 10 V | ±20V | 4960 pF @ 10 V | - | 3.6W (Ta), 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PQFN (5x6) |
|
|
IRLR3105TRPBFMOSFET N-CH 55V 25A DPAK |
18,605 |
|
Техническая документация |
HEXFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 25A (Tc) | 5V, 10V | 37mOhm @ 15A, 10V | 3V @ 250µA | 20 nC @ 5 V | ±16V | 710 pF @ 25 V | - | 57W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
DMTH8012LK3Q-13MOSFET N-CH 80V 50A TO252 |
8,996 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 50A (Tc) | 4.5V, 10V | 16mOhm @ 12A, 10V | 3V @ 250µA | 46.8 nC @ 10 V | ±20V | 2051 pF @ 40 V | - | 2.6W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
|
TN2435N8-GMOSFET N-CH 350V 365MA TO243AA |
4,978 |
|
Техническая документация |
- | TO-243AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 350 V | 365mA (Tj) | 3V, 10V | 6Ohm @ 750mA, 10V | 2.5V @ 1mA | - | ±20V | 200 pF @ 25 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-243AA (SOT-89) |
|
PSMN021-100YLXMOSFET N-CH 100V 49A LFPAK56 |
4,665 |
|
Техническая документация |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 49A (Tc) | 5V, 10V | 21.5mOhm @ 15A, 10V | 2.1V @ 1mA | 65.6 nC @ 10 V | ±20V | 4640 pF @ 25 V | - | 147W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
PSMN012-60YS,115MOSFET N-CH 60V 59A LFPAK56 |
2,439 |
|
Техническая документация |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 59A (Tc) | 10V | 11.1mOhm @ 15A, 10V | 4V @ 1mA | 28.4 nC @ 10 V | ±20V | 1685 pF @ 30 V | - | 89W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
CPC3909ZTRMOSFET N-CH 400V 300MA SOT223 |
1,603 |
|
Техническая документация |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel, Depletion Mode | MOSFET (Metal Oxide) | 400 V | 300mA (Ta) | 0V | 9Ohm @ 300mA, 0V | - | - | 15V | - | - | 2.5W (Ta) | -40°C ~ 110°C (TA) | - | - | Surface Mount | SOT-223 |
|
PXP3R7-12QUJPXP3R7-12QU/SOT8002/MLPAK33 |
1,106 |
|
Техническая документация |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 18.7A (Ta), 98.6A (Tc) | 1.8V, 4.5V | 3.7mOhm @ 18.6A, 4.5V | 900mV @ 250µA | 110 nC @ 4.5 V | ±8V | 6500 pF @ 6 V | - | 1.8W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | MLPAK33 |
|
MCU05N60A-TPMOSFET N-CH 600V 4.5A DPAK |
14,367 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.5A (Tj) | 10V | 2.5Ohm @ 2.25A, 10V | 4V @ 250µA | - | ±30V | 670 pF @ 25 V | - | 1.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
NP45N06VUK-E1-AYMOSFET N-CH 60V 45A TO263-3 |
12,150 |
|
Техническая документация |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 45A (Tc) | 10V | 9.6mOhm @ 23A, 10V | 4V @ 250µA | 45 nC @ 10 V | ±20V | 2540 pF @ 25 V | - | 1.8W (Ta), 75W (Tc) | 175°C | Automotive | AEC-Q101 | Surface Mount | TO-263-3 |
|
SIJ186DP-T1-GE3MOSFET N-CH 60V 23A/79.4A PPAK |
7,959 |
|
Техническая документация |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 23A (Ta), 79.4A (Tc) | 6V, 10V | 4.5mOhm @ 15A, 10V | 3.6V @ 250µA | 37 nC @ 10 V | ±20V | 1710 pF @ 30 V | - | 5W (Ta), 57W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
|
MCG25P06Y-TPP-CHANNEL MOSFET,DFN3333 |
7,645 |
|
Техническая документация |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 25A | 4.5V, 10V | 50mOhm @ 20A, 10V | 2.7V @ 250µA | 18.7 nC @ 10 V | ±20V | 1100 pF @ 30 V | - | 60W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN3333 |
|
BSZ033NE2LS5ATMA1MOSFET N-CH 25V 18A/40A TSDSON |
5,000 |
|
Техническая документация |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 18A (Ta), 40A (Tc) | 4.5V, 10V | 3.3mOhm @ 20A, 10V | 2V @ 250µA | 18.3 nC @ 10 V | ±16V | 1230 pF @ 12 V | - | 2.1W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSDSON-8-FL |
|
NVMS5P02R2GMOSFET P-CH 20V 3.95A 8SOIC |
1,405 |
|
Техническая документация |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.95A (Ta) | - | 33mOhm @ 5.4A, 4.5V | 1.25V @ 250µA | 35 nC @ 4.5 V | - | 1900 pF @ 16 V | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
|
RW4E075AJTCL1NCH 30V 7.5A POWER MOSFET: RW4E0 |
11,168 |
|
Техническая документация |
- | 6-PowerUFDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.5A (Ta) | 2.5V, 4.5V | 26mOhm @ 7.5A, 4.5V | 1.5V @ 2mA | 6.3 nC @ 4.5 V | ±12V | 720 pF @ 15 V | - | 1.5W (Ta) | 150°C (TJ) | - | - | Surface Mount | DFN1616-7T |
|
|
PSMN1R2-25YLC,115MOSFET N-CH 25V 100A LFPAK56 |
8,547 |
|
Техническая документация |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 100A (Tc) | 4.5V, 10V | 1.3mOhm @ 25A, 10V | 1.95V @ 1mA | 66 nC @ 10 V | ±20V | 4173 pF @ 12 V | - | 179W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
MCQ15N10YA-TPMOSFET N-CH DFN3333 |
7,722 |
|
Техническая документация |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Ta) | 4.5V, 10V | 9.5mOhm @ 10A, 10V | 3V @ 250µA | 32 nC @ 10 V | ±20V | 2270 pF @ 50 V | - | 3.8W (Tj) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
