FET, MOSFET
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQS164ELNW-T1_GE3AUTOMOTIVE N-CHANNEL 60 V (D-S) |
1,937 |
|
Техническая документация |
TrenchFET® Gen IV | PowerPAK® 1212-8SLW | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 82A (Tc) | 4.5V, 10V | 7.4mOhm @ 10A, 10V | 2.5V @ 250µA | 41 nC @ 10 V | ±20V | 2159 pF @ 25 V | - | 104W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerPAK® 1212-8SLW |
|
DMPH4015SSSQ-13MOSFET P-CHANNEL 40V 11.4A 8SO |
1,017 |
|
Техническая документация |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 11.4A (Ta) | 4.5V, 10V | 11mOhm @ 9.8A, 10V | 2.5V @ 250µA | 91 nC @ 10 V | ±25V | 4234 pF @ 20 V | - | 1.8W | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
BUK9M15-60EXMOSFET N-CH 60V 47A LFPAK33 |
996 |
|
Техническая документация |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 47A (Tc) | 5V, 10V | 13mOhm @ 10A, 10V | 2.45V @ 1mA | 17 nC @ 5 V | ±10V | 2230 pF @ 25 V | - | 75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
ZXMP3A16N8TAMOSFET P-CH 30V 5.6A 8SO |
670 |
|
Техническая документация |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.6A (Ta) | 4.5V, 10V | 40mOhm @ 4.2A, 10V | 1V @ 250µA | 29.6 nC @ 10 V | ±20V | 1022 pF @ 15 V | - | 1.9W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
MCU90N06A-TPN-CHANNEL MOSFET, DPAK |
313 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A | - | 7.2mOhm @ 15A, 10V | 2.5V @ 250µA | 102 nC @ 10 V | ±20V | 5170 pF @ 30 V | - | 110W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
IPN80R1K4P7ATMA1MOSFET N-CH 800V 4A SOT223 |
243 |
|
Техническая документация |
CoolMOS™ P7 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.4Ohm @ 1.4A, 10V | 3.5V @ 70µA | 10 nC @ 10 V | ±20V | 250 pF @ 500 V | - | 7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223 |
|
CSD25484F4TMOSFET P-CH 20V 2.5A 3PICOSTAR |
14,690 |
|
Техническая документация |
FemtoFET™ | 3-XFDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 1.8V, 8V | 94mOhm @ 500mA, 8V | 1.2V @ 250µA | 1.42 nC @ 4.5 V | -12V | 230 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PICOSTAR |
|
|
BUK9M9R5-40HXMOSFET N-CH 40V 40A LFPAK33 |
8,999 |
|
Техническая документация |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 9.5mOhm @ 15A, 10V | 2.15V @ 1mA | 24 nC @ 10 V | +16V, -10V | 1537 pF @ 25 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
SQS482EN-T1_GE3MOSFET N-CH 30V 16A PPAK1212-8 |
3,822 |
|
Техническая документация |
TrenchFET® | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Tc) | 4.5V, 10V | 8.5mOhm @ 16.4A, 10V | 2.5V @ 250µA | 39 nC @ 10 V | ±20V | 1865 pF @ 25 V | - | 62W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
|
AOT8N50MOSFET N-CH 500V 8A TO220 |
3,697 |
|
Техническая документация |
- | TO-220-3 | Tube | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 850mOhm @ 4A, 10V | 4.5V @ 250µA | 28 nC @ 10 V | ±30V | 1042 pF @ 25 V | - | 192W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
RQ6E085BNTCRMOSFET N-CH 30V 8.5A SOT457 |
3,348 |
|
Техническая документация |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.5A (Tc) | 10V | 14.4mOhm @ 8.5A, 10V | 2.5V @ 1mA | 32.7 nC @ 10 V | ±20V | 1350 pF @ 15 V | - | 1.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
NVLJWS011N06CLTAGT6 60V LL 2X2 WDFNW6 |
2,874 |
|
Техническая документация |
- | 6-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta), 48A (Tc) | 4.5V, 10V | 9mOhm @ 10A, 10V | 2V @ 34µA | 13.6 nC @ 10 V | ±20V | 912 pF @ 25 V | - | 2.9W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 6-WDFNW (2.05x2.05) |
|
|
BUK7M9R5-40HXMOSFET N-CH 40V 40A LFPAK33 |
2,679 |
|
Техническая документация |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 10V | 9.5mOhm @ 15A, 10V | 3.6V @ 1mA | 18 nC @ 10 V | ±20V | 1166 pF @ 25 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
BUK9Y38-100E,115MOSFET N-CH 100V 30A LFPAK56 |
2,164 |
|
Техническая документация |
TrenchMOS™ | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 30A (Tc) | 5V, 10V | 38mOhm @ 5A, 5V | 2.1V @ 1mA | 21.6 nC @ 5 V | ±10V | 2541 pF @ 25 V | - | 94.9W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK56, Power-SO8 |
|
SIRA64DP-T1-RE3MOSFET N-CH 30V 60A PPAK SO-8 |
8,826 |
|
Техническая документация |
TrenchFET® Gen IV | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 4.5V, 10V | 2.1mOhm @ 10A, 10V | 2.2V @ 250µA | 65 nC @ 10 V | +20V, -16V | 3420 pF @ 15 V | - | 27.8W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
IAUC100N04S6N028ATMA1IAUC100N04S6N028ATMA1 |
8,793 |
|
Техническая документация |
OptiMOS™ | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 100A (Tc) | 7V, 10V | 2.86mOhm @ 50A, 10V | 3V @ 24µA | 29 nC @ 10 V | ±20V | 1781 pF @ 25 V | - | 62W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8 |
|
DMT8012LFG-7MOSFET N-CH 80V PWRDI3333 |
4,549 |
|
Техническая документация |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 9.5A (Ta), 35A (Tc) | 6V, 10V | 16mOhm @ 12A, 10V | 3V @ 250µA | 34 nC @ 10 V | ±20V | 1949 pF @ 40 V | - | 2.2W (Ta), 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | POWERDI3333-8 |
|
|
BUK9M12-60EXMOSFET N-CH 60V 54A LFPAK33 |
3,798 |
|
Техническая документация |
TrenchMOS™ | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 54A (Tc) | 5V | 11mOhm @ 15A, 10V | 2.1V @ 1mA | - | ±10V | 2769 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
SQ3418AEEV-T1_BE3MOSFET N-CH 40V 8A 6TSOP |
948 |
|
Техническая документация |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 8A (Tc) | 4.5V, 10V | 32mOhm @ 5A, 10V | 2.5V @ 250µA | 12.4 nC @ 10 V | ±20V | 675 pF @ 20 V | - | 5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|

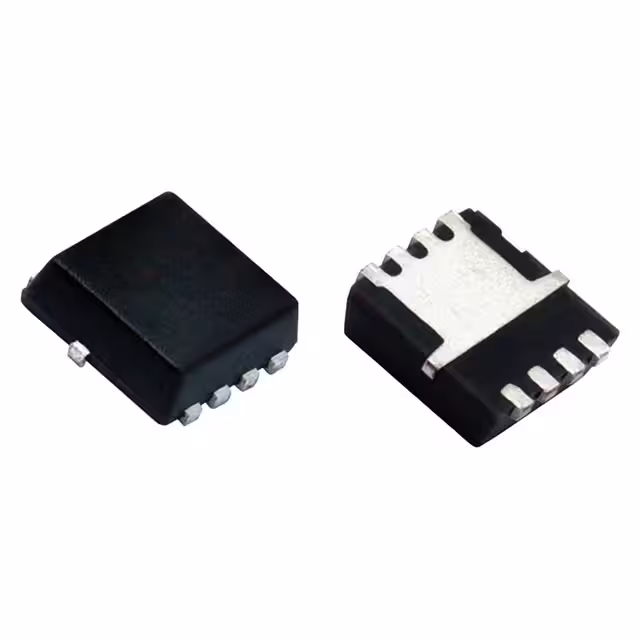

SIS4604LDN-T1-GE3N-CHANNEL 60 V (D-S) MOSFET POWE |
13,827 |
|
Техническая документация |
TrenchFET® Gen IV | PowerPAK® 1212-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 15.1A (Ta), 45.9A (Tc) | 4.5V, 10V | 8.9mOhm @ 10A, 10V | 3V @ 250µA | 28 nC @ 10 V | ±20V | 1180 pF @ 30 V | - | 3.6W (Ta), 33.7W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® 1212-8 |
