DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMM0505S05DC DC CONVERTER 5V 5W |
1,019 |
|
Техническая документация |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|
|
IMM0524S05DC DC CONVERTER 5V 5W |
1,780 |
|
Техническая документация |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|
RW2-0505S/SMDDC DC CONVERTER 5V 2W |
3,746 |
|
Техническая документация |
ECONOLINE RW2 (2W) | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 73% | - | - | Surface Mount | 0.95" L x 0.57" W x 0.40" H (24.2mm x 14.5mm x 10.2mm) | - | - | - | - |
|
|
IMM0512S15DC DC CONVERTER 15V 5W |
1,050 |
|
Техническая документация |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 333mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|

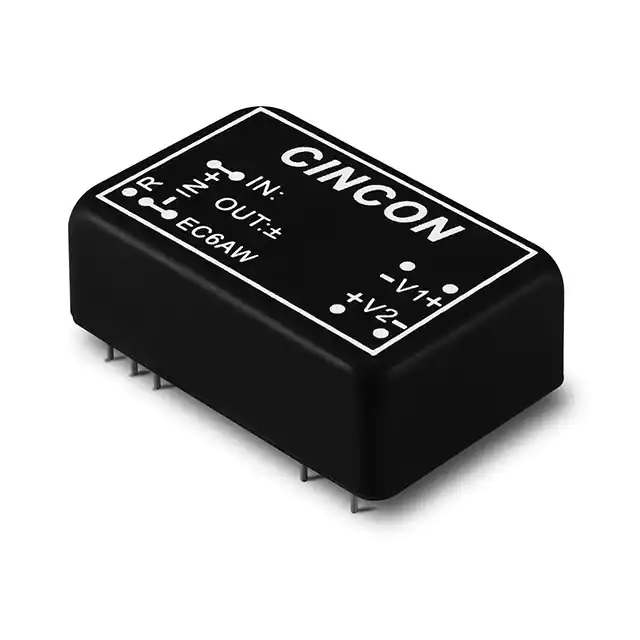

EC6AW-24S33DC DC CONVERTER 3.3V 6.6W |
4,144 |
|
Техническая документация |
EC6AW (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2A | 6.6 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 50155; 60950-1 |
|
|
EC6AW-48S33DC DC CONVERTER 3.3V 6.6W |
4,417 |
|
Техническая документация |
EC6AW (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 2A | 6.6 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | CE | 50155; 60950-1 |
|
|
IMM0505S3V3DC DC CONVERTER 3.3V 4W |
3,838 |
|
Техническая документация |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|
|
IMM0512S3V3DC DC CONVERTER 3.3V 4W |
2,329 |
|
Техническая документация |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|
|
IMM0505S12DC DC CONVERTER 12V 5W |
3,882 |
|
Техническая документация |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 416mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | CB, CSA, TUV, UL | - |
|
RSO-1212DDC DC CONVERTER +/-12V 1W |
2,984 |
|
Техническая документация |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
RS3-0512S/H3DC DC CONVERTER 12V 3W |
4,380 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-053.3S/H3DC DC CONVERTER 3.3V 3W |
1,981 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-483.3S/H2DC DC CONVERTER 3.3V 3W |
3,621 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 3.3V | - | - | - | 600mA | 3 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-1212S/H3DC DC CONVERTER 12V 3W |
3,162 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
R1M-1205S/SMD1W DC/DC-CONVERTER 'ECONOLINE' S |
2,560 |
|
Техническая документация |
R1M (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
TMR 2-2423WIDC DC CONVERTER +/-15V 2W |
4,166 |
|
Техническая документация |
TMR 2WI (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | - | - |
|
TMR 2-4823WIDC DC CONVERTER +/-15V 2W |
4,668 |
|
Техническая документация |
TMR 2WI (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | - | - |
|
SCW12C-05DC DC CONVERTER 5V 12W |
4,808 |
|
Техническая документация |
SCW12 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 2.4A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 71°C (With Derating) | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm) | - | Enable, Active High | - | - |
|

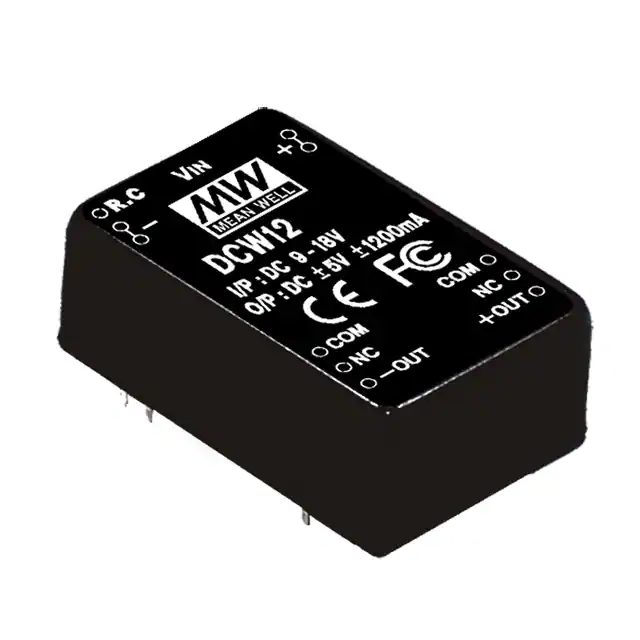

DCW12A-15DC DC CONVERTER +/-15V 12W |
1,149 |
|
Техническая документация |
DCW12 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 71°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm) | - | - | - | - |
.jpg)
|
REC3-243.3SRW/H2/ADC DC CONVERTER 3.3V 3W |
2,923 |
|
Техническая документация |
ECONOLINE REC3-SRW (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 900mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
