DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

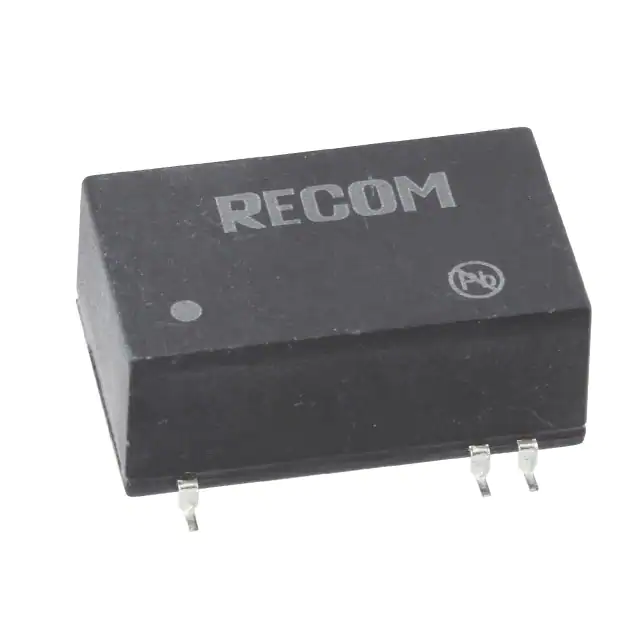

RW2-2405S/SMDDC DC CONVERTER 5V 2W |
1,106 |
|
Техническая документация |
ECONOLINE RW2 (2W) | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Surface Mount | 0.95" L x 0.57" W x 0.40" H (24.2mm x 14.5mm x 10.2mm) | - | - | - | - |
|
RS3-0515S/H2DC DC CONVERTER 15V 3W |
2,798 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 200mA | 3 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-2412S/H3DC DC CONVERTER 12V 3W |
1,460 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-2415S/H2DC DC CONVERTER 15V 3W |
1,280 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
RS-0505S/H2DC DC CONVERTER 5V 2W |
3,897 |
|
Техническая документация |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS-0515S/H2DC DC CONVERTER 15V 2W |
1,054 |
|
Техническая документация |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 134mA | 2 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS-053.3S/H2DC DC CONVERTER 3.3V 2W |
1,006 |
|
Техническая документация |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 500mA | 2 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
JCE0612D12DC DC CONVERTER +/-12V 6W |
2,361 |
|
Техническая документация |
JCE (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
|
TDN 1-2422WIDC DC CONVERTER +/-12V 1.1W |
3,979 |
|
Техническая документация |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 45mA, 45mA | 1.1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 80% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
.jpg)
|
REC3-0515DR/H1DC DC CONVERTER +/-15V 3W |
4,011 |
|
Техническая документация |
ECONOLINE REC3-DR (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 4.25V | 5.75V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 75% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
EC4AW01HDC DC CONVERTER 5V 5W |
2,210 |
|
Техническая документация |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
|
EC4AW11HDC DC CONVERTER 5V 5W |
1,784 |
|
Техническая документация |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
RSO-1215DDC DC CONVERTER +/-15V 1W |
1,498 |
|
Техническая документация |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TEN 3-2421WINDC DC CONVERTER +/-5V 2.5W |
3,095 |
|
Техническая документация |
TEN 3WIN (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 250mA, 250mA | 2.5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cCSAus | - |
|
|
RS3-0509DDC DC CONVERTER +/-9V 3W |
2,326 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 9V | -9V | - | - | 167mA, 167mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

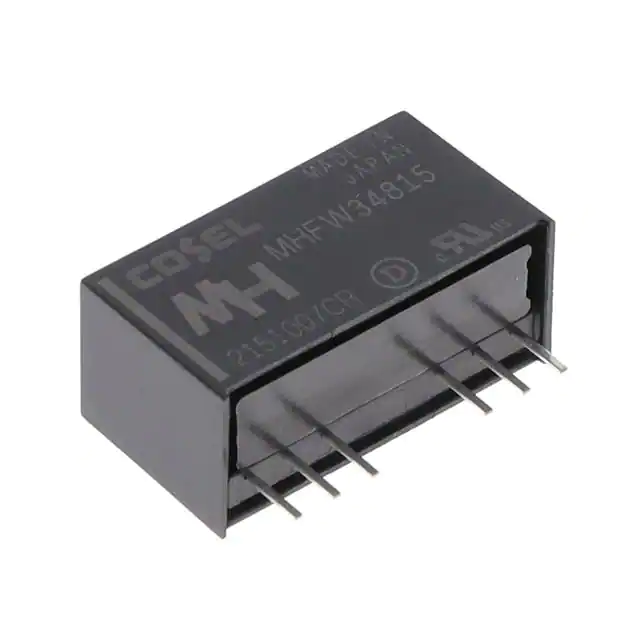

MHFW34815DC DC CONVERTER +/-15V 3W |
4,951 |
|
Техническая документация |
MH | 8-SIP Module, 6 Leads | Bulk | Active | Isolated Module | 2 | 18V | 76V | 15V | -15V | - | - | 100mA | 3 W | 4.2 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | Enable, Active Low | CE, cURus, DEMKO | 60601-1; 62368-1 |
|
TRV 2-1212M2 WATT ENCAPSULATED SIP-9 MEDICA |
3,223 |
|
Техническая документация |
TRV 2M (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9.6V | 14.4V | 12V | - | - | - | 167mA | 2 W | 7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C | 84% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | 60601-1; 62368-1 |
|
|
RS-1215DDC DC CONVERTER +/-15V 2W |
3,928 |
|
Техническая документация |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
TRV 2-2411M2 WATT ENCAPSULATED SIP-9 MEDICA |
2,649 |
|
Техническая документация |
TRV 2M (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 19.2V | 28.8V | 5V | - | - | - | 400mA | 2 W | 7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | 60601-1; 62368-1 |
|
|
TRV 2-2413M2 WATT ENCAPSULATED SIP-9 MEDICA |
1,653 |
|
Техническая документация |
TRV 2M (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 19.2V | 28.8V | 15V | - | - | - | 134mA | 2 W | 7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | 60601-1; 62368-1 |
