DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEE1S0315SCDC DC CONVERTER 15V 1W |
3,554 |
|
Техническая документация |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84.5% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
LMS78_09-2.0RNON-ISOLATED POL MODULE DC DC CO |
100 |
|
Техническая документация |
LMS78_2.0R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 13V | 36V | 9V | - | - | - | 2A | 18 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm) | - | - | - | 62368-1 |
|
TMA 1512SDC DC CONVERTER 12V 1W |
2,054 |
|
Техническая документация |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
TMA 1515SDC DC CONVERTER 15V 1W |
1,975 |
|
Техническая документация |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
|
TMA 1215SDC DC CONVERTER 15V 1W |
2,955 |
|
Техническая документация |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
|
TMA 1505SDC DC CONVERTER 5V 1W |
1,752 |
|
Техническая документация |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|

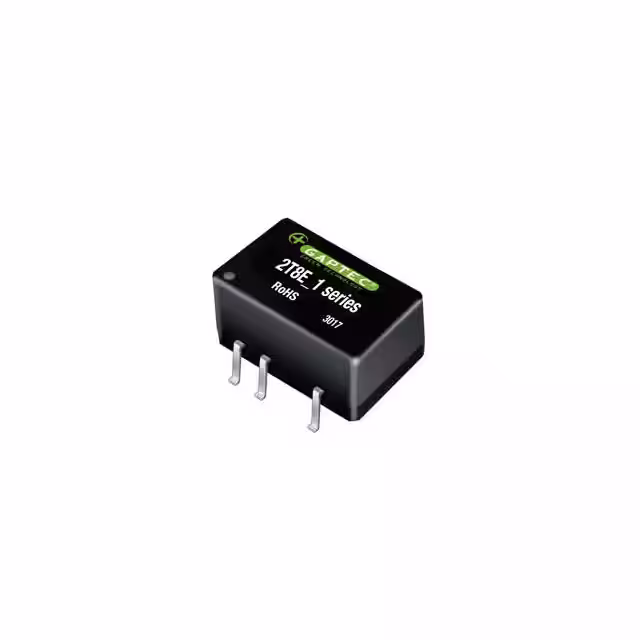

2T8E_0512S1UISOLATED MODULE DC DC CONVERTERS |
2,007 |
|
Техническая документация |
2T8E_1U (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.25" H (12.7mm x 7.6mm x 6.4mm) | - | - | - | - |
|
PCN1-S24-S12-SDC DC CONVERTER 12V 1W |
3,602 |
|
Техническая документация |
PCN1-S (1W) | 6-SIP Module, 4 Leads | Bulk | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | EN | 55032 Class A |
|
IE1205DDC DC CONVERTER 5V 1W |
1,483 |
|
Техническая документация |
IE (1W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.50" L x 0.40" W x 0.27" H (12.7mm x 10.1mm x 6.9mm) | - | - | - | - |
|
IE1224SDC DC CONVERTER 24V 1W |
3,256 |
|
Техническая документация |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
|
IE1203SDC DC CONVERTER 3.3V 1W |
1,415 |
|
Техническая документация |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 300mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
|
IE0312SDC DC CONVERTER 12V 1W |
4,339 |
|
Техническая документация |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|

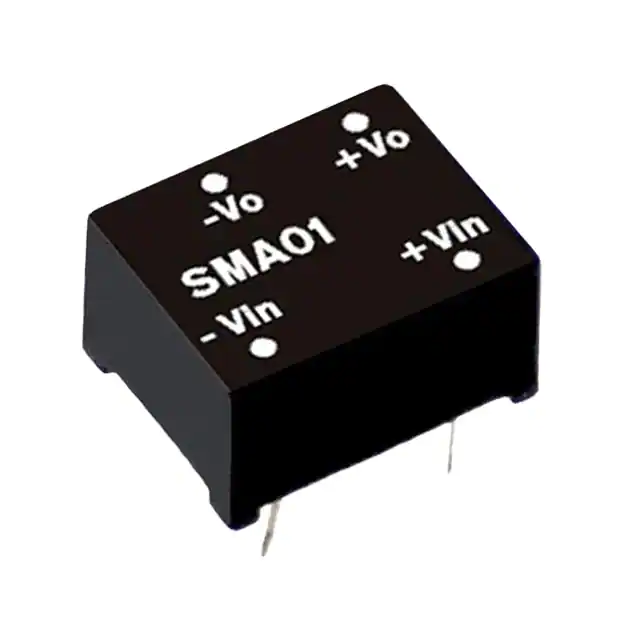

SMA01M-15DC DC CONVERTER 15V 1W |
2,535 |
|
Техническая документация |
SMA01 (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | 0.50" L x 0.40" W x 0.28" H (12.7mm x 10.2mm x 7.1mm) | - | - | - | - |
|
IQ2405SADC DC CONVERTER 5V 1W |
3,385 |
|
Техническая документация |
IQ (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
IK1203SADC DC CONVERTER 3.3V 250MW |
2,691 |
|
Техническая документация |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 75.7mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 65% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
|
IK2405SADC DC CONVERTER 5V 250MW |
2,878 |
|
Техническая документация |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 50mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 62% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
IK2412SADC DC CONVERTER 12V 250MW |
3,796 |
|
Техническая документация |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 20.8mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 56% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
IK1215SADC DC CONVERTER 15V 250MW |
1,621 |
|
Техническая документация |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 16.67mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 67% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|

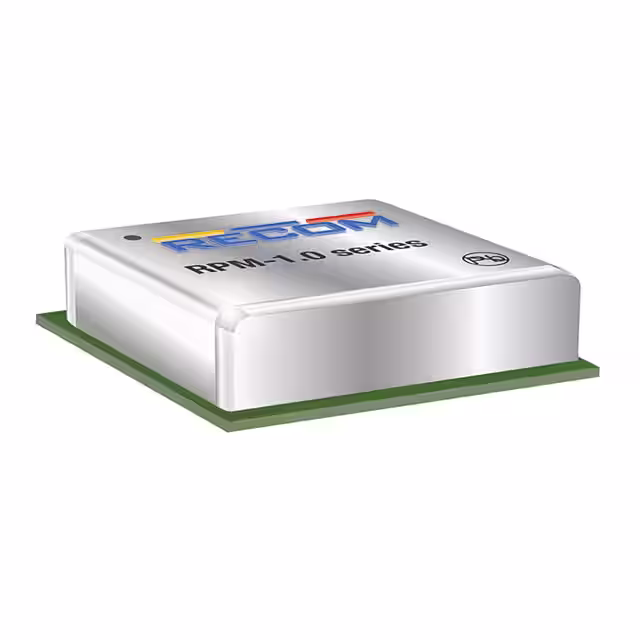

RPM5.0-1.0-CTDC DC CONVERTER 5V |
1,417 |
|
Техническая документация |
INNOLINE RPM-1.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 99% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
|
TMA 1505DDC DC CONVERTER +/-5V 1W |
1,850 |
|
Техническая документация |
TMA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
