DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

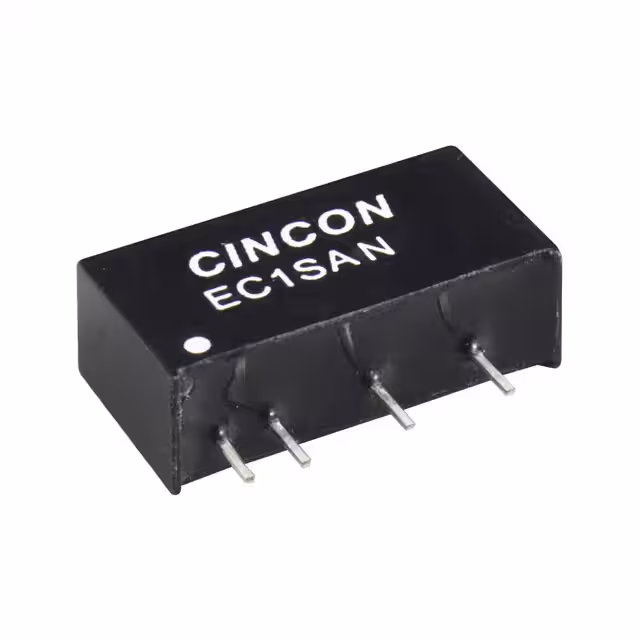

EC1SA12NDC DC CONVERTER 12V 1W |
2,722 |
|
Техническая документация |
EC1SAN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | CE | - |
|
EC1SA05NDC DC CONVERTER +/-15V 1W |
4,550 |
|
Техническая документация |
EC1SAN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | CE | - |
|
TBA 1-0523EDC DC CONVERTER +/-15V 990MW |
1,401 |
|
Техническая документация |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
TBA 1-1223EDC DC CONVERTER +/-15V 990MW |
2,666 |
|
Техническая документация |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
TBA 1-0522EDC DC CONVERTER +/-12V 984MW |
2,090 |
|
Техническая документация |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 41mA, 41mA | 984 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
TBA 1-2421EDC DC CONVERTER +/-5V 1W |
2,033 |
|
Техническая документация |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
TBA 1-2419DC DC CONVERTER 9V 990MW |
4,329 |
|
Техническая документация |
TBA 1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 990 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
TBA 1-2422EDC DC CONVERTER +/-12V 984MW |
3,645 |
|
Техническая документация |
TBA 1E (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 41mA, 41mA | 984 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
TBA 1-0513DC DC CONVERTER 15V 975MW |
2,516 |
|
Техническая документация |
TBA 1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 65mA | 975 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
1S7BE_2424S3UISOLATED MODULE DC DC CONVERTERS |
4,327 |
|
Техническая документация |
1S7BE_3U (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | 60950-1 |
|
TBA 1-0522HIDC DC CONVERTER +/-12V 984MW |
4,974 |
|
Техническая документация |
TBA 1HI (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 41mA, 41mA | 984 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
TBA 1-0523HIDC DC CONVERTER +/-15V 990MW |
4,312 |
|
Техническая документация |
TBA 1HI (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
TBA 1-1222HIDC DC CONVERTER +/-12V 984MW |
4,801 |
|
Техническая документация |
TBA 1HI (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 41mA, 41mA | 984 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
TBA 1-0513HIDC DC CONVERTER 15V 990MW |
4,813 |
|
Техническая документация |
TBA 1HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 990 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
EPM7051V-12R-042DHDC DC CONV 1W 5VIN 12VOUT 42MA |
4,675 |
|
Техническая документация |
EPM7-1V (1W) | 7-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | 62368-1 |
|
2S4E_0505S1UISOLATED MODULE DC DC CONVERTERS |
4,138 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
2S4E_1205S1UISOLATED MODULE DC DC CONVERTERS |
4,765 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
2S4E_0524S1UISOLATED MODULE DC DC CONVERTERS |
2,948 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
2S4E_2405S1UISOLATED MODULE DC DC CONVERTERS |
1,059 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
|
2S4E_1505S1UISOLATED MODULE DC DC CONVERTERS |
3,325 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
