DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IAS0105D12-TRDC DC CONVERTER 12V 8DIP SMD |
3,278 |
|
Техническая документация |
IAS01 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
SVR10S6V5DC DC CONVERTER 6.5V |
2,006 |
|
Техническая документация |
SVR10 (10W) | 10-SMD Module, 8 Leads | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 10V | 36V | 6.5V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | Enable, Active High | - | - |
|
|
IES0105S12-H-TRDC DC CONVERTER 12V 8DIP SMD |
3,195 |
|
Техническая документация |
IES01 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
IES0105S3V3DC DC CONVERTER 3.3V |
4,957 |
|
Техническая документация |
IES01 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | - | - | - | - | - | - | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | - | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
SVR05S09DC DC CONVERTER 9V |
2,203 |
|
Техническая документация |
SVR05 (5W) | 10-SMD Module, 8 Leads | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 12V | 36V | 9V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | Enable, Active High | - | - |
|
|
IAS0105D05-TRDC DC CONVERTER 5V 8DIP SMD |
3,142 |
|
Техническая документация |
IAS01 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
IAS0105D15-TRDC DC CONVERTER 15V 8DIP SMD |
4,103 |
|
Техническая документация |
IAS01 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
IES0105S24-H-TRDC DC CONVERTER 24V 8DIP SMD |
2,087 |
|
Техническая документация |
IES01 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
SVR10S6V5-TRDC DC CONVERTER 6.5V |
1,129 |
|
Техническая документация |
SVR10 (10W) | 10-SMD Module, 8 Leads | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 10V | 36V | 6.5V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | Enable, Active High | - | - |
|
HAE100-12S12DC DC CONVERTER 12V 101W |
2,382 |
|
Техническая документация |

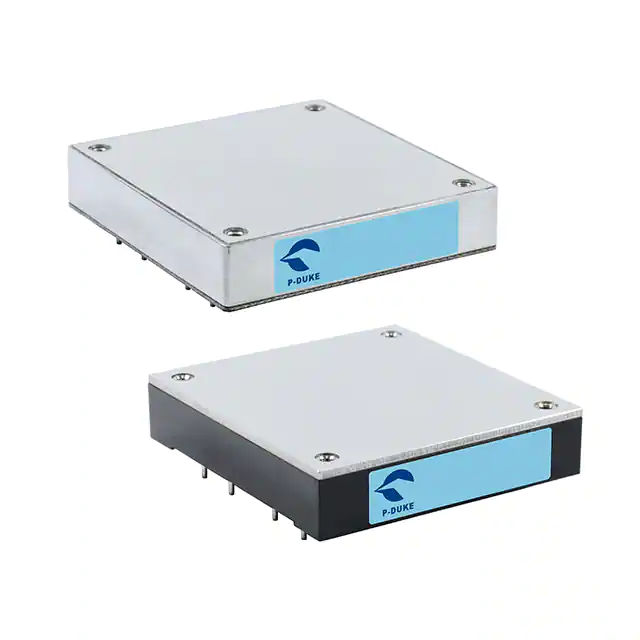

HAE100 (100W) | Half Brick | Box | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 8.4A | 101 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 60950-1 |
|
QAE150-48S48DC DC CONVERTER 48V 144W |
3,525 |
|
Техническая документация |

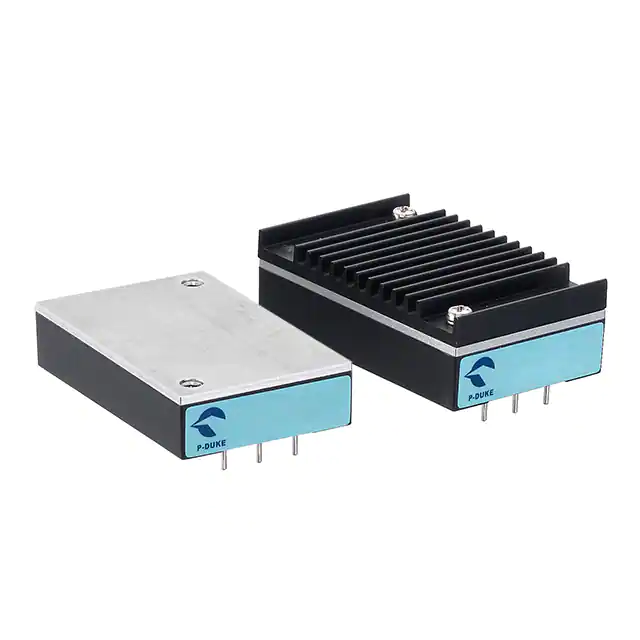

QAE150 (150W) | Quarter Brick | Box | Active | Isolated Module | 1 | 33V | 75V | 48V | - | - | - | 3A | 144 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Standby Output | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus | 62368-1 |
|
RDL06-24S3P3WDC DC CONVERTER 3.3V 5W |
1,481 |
|
Техническая документация |

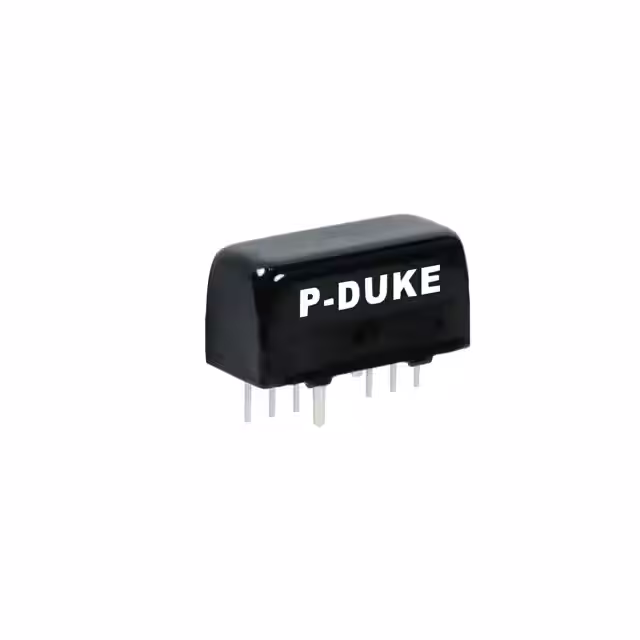

RDL06W (6W) | 12-SIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.5A | 5 W | 3 kV | ITE (Commercial) | Remote On/Off, Standby Output | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | CB, CE, cURus | 60950-1; 62368-1 |
|
SDH05-05S12DC DC CONVERTER 12V 5W |
3,831 |
|
Техническая документация |

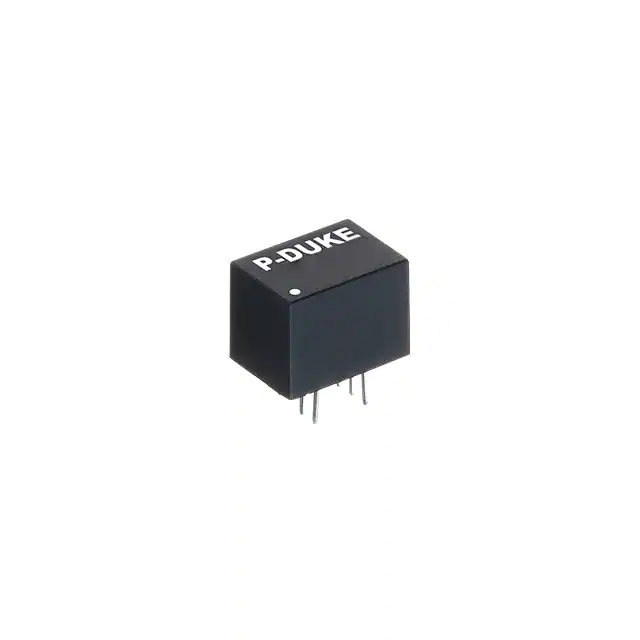

SDH05 (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 12V | - | - | - | 420mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | CE | 62368-1 |
|
|
ISL8215MIRZ-T7DC DC CONVERTER 12V |
1,710 |
|
Техническая документация |
ISL8215M | 22-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 7V | 42V | 0.6 ~ 12V | - | - | - | 15A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Surface Mount | 0.75" L x 0.51" W x 0.21" H (19.0mm x 13.0mm x 5.3mm) | 22-HDA Module (19x13) | - | - | - |
|
|
ZL9030MBIRZDC DC CONVERTER |
4,059 |
|
Техническая документация |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZL9030MBIRZ -TDC DC CONVERTER |
2,165 |
|
Техническая документация |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISL8215MIRZDC DC CONVERTER 12V |
1,647 |
|
Техническая документация |
ISL8215M | 22-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 7V | 42V | 0.6 ~ 12V | - | - | - | 15A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Surface Mount | 0.75" L x 0.51" W x 0.21" H (19.0mm x 13.0mm x 5.3mm) | 22-HDA Module (19x13) | - | - | - |
|
|
ZL9023MBIRZDC DC CONVERTER |
4,742 |
|
Техническая документация |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZL9025MBIRZDC DC CONVERTER |
1,768 |
|
Техническая документация |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PI3106-00-HVIZDC DC CONVERTER 12V 50W |
1,617 |
|
Техническая документация |
M-Grade® | 8-SMD Module | Tray | Obsolete | Isolated Module | 1 | 16V | 50V | 12V | - | - | - | 4.17A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -55°C ~ 125°C | 88% | - | - | Surface Mount | 0.87" L x 0.65" W x 0.26" H (22.0mm x 16.5mm x 6.7mm) | - | - | CSA | 60950-1 |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
