DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEZDPD4506A-8506DC DC CONVERTER 0.6-22V |
2,361 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-84DCDC DC CONVERTER 12V |
1,914 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 20V | 28V | 12V | - | - | - | 6A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-8549DC DC CONVERTER 0.6-22V |
1,486 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD1620AS-8540DC DC CONVERTER 0.6-5.5V |
4,690 |
|
Техническая документация |
MEZDPD1620 | 59-PowerBQFN Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 16V | 0.6 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Adjustable Output, I2C Interface | - | 96% | - | - | Surface Mount | 0.47" L x 0.39" W x 0.16" H (12.0mm x 10.0mm x 4.0mm) | 59-QFN (10x12) | - | - | - |
|
|
MEZDPD1620A-84EBDC DC CONVERTER 5V |
1,992 |
|
Техническая документация |
MEZDPD1620 | 18-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 15V | 5V | - | - | - | 20A | - | - | ITE (Commercial) | - | - | 96% | - | - | Through Hole | 0.91" L x 0.63" W x 0.56" H (23.0mm x 16.0mm x 14.1mm) | - | - | - | - |
|
|
MEZDPD4506A-853EDC DC CONVERTER 0.6-22V |
2,890 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-84D8DC DC CONVERTER 3.3V |
3,475 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 15V | 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-84F2DC DC CONVERTER 24V |
3,707 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 40V | 32V | 24V | - | - | - | 4A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-84EFDC DC CONVERTER 5V |
3,109 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 40V | 32V | 5V | - | - | - | 4A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD1620AS-8504DC DC CONVERTER 0.6-5.5V |
3,425 |
|
Техническая документация |
MEZDPD1620 | 59-PowerBQFN Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 16V | 0.6 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Adjustable Output, I2C Interface | - | 96% | - | - | Surface Mount | 0.47" L x 0.39" W x 0.16" H (12.0mm x 10.0mm x 4.0mm) | 59-QFN (10x12) | - | - | - |
|
|
MEZDPD4506A-853ADC DC CONVERTER 0.6-22V |
2,798 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD1620A-84E5DC DC CONVERTER 2.5V |
2,715 |
|
Техническая документация |
MEZDPD1620 | 18-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 10V | 2.5V | - | - | - | 20A | - | - | ITE (Commercial) | - | - | 96% | - | - | Through Hole | 0.91" L x 0.63" W x 0.56" H (23.0mm x 16.0mm x 14.1mm) | - | - | - | - |
|
|
MYRGM080150W31RADC DC CONVERTER 0.8-3.6V |
4,184 |
|
Техническая документация |
PicoBK™ MYRGM-W | 9-PowerTFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.8 ~ 3.6V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 105°C | 92% | - | - | Surface Mount | 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm) | - | - | - | - |
|
|
MYRGP080100W21RADC DC CONVERTER 0.8-3.6V |
3,773 |
|
Техническая документация |
PicoBK™ MYRGM-W | 8-PowerTDFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 105°C | 93% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | - | - | - | - |
|
|
MYRGM080150B31RADC DC CONVERTER 0.8-3.6V |
1,315 |
|
Техническая документация |
PicoBK™ MYRGM-B | 9-PowerTFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.8 ~ 3.6V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 105°C | 92% | - | - | Surface Mount | 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm) | - | - | - | - |
|
|
MYRGP080100B21RADC DC CONVERTER 0.8-3.6V |
2,257 |
|
Техническая документация |
PicoBK™ MYRGM-B | 8-PowerTDFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.8 ~ 3.6V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 105°C | 92% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | - | - | - | - |
|
|
IBC070Q01-01DC DC CONVERTER |
2,338 |
|
Техническая документация |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IBC060Q01-B2DC DC CONVERTER |
3,921 |
|
Техническая документация |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IBC070Q01-B1DC DC CONVERTER |
3,591 |
|
Техническая документация |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

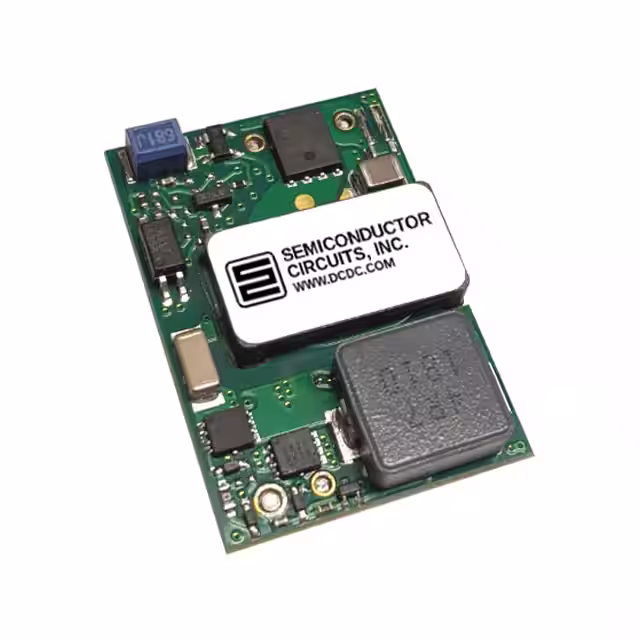

CPT8A18PDC DC CONVERTER 5V 40W |
1,193 |
|
Техническая документация |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 8A | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm) | Sixteenth Brick | Enable, Active High | CSA, TUV, UL | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
