DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MYRGM105150W31RADC DC CONVERTER 1.05V |
3,029 |
|
Техническая документация |
PicoBK MYRGM-W | 9-PowerTFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 1.05V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 105°C | 92% | - | - | Surface Mount | 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm) | - | - | - | - |
|
|

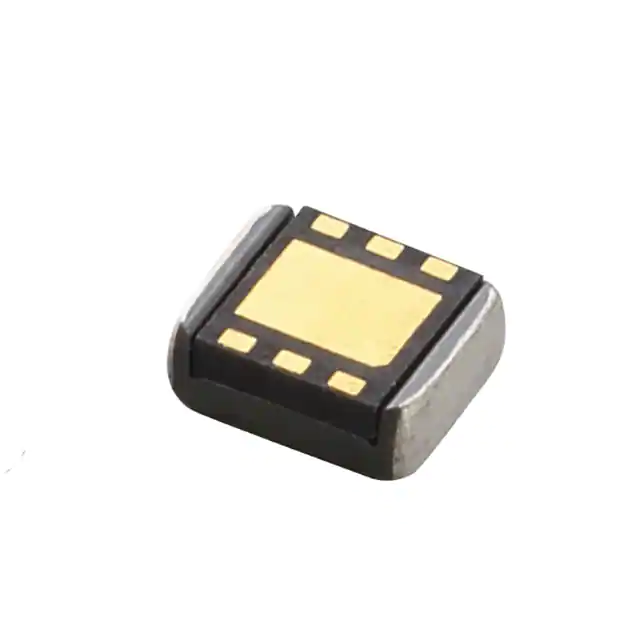

MYRGP090100W21RADC DC CONVERTER 0.9V |
1,722 |
|
Техническая документация |
PicoBK MYRGP-W | 8-PowerTDFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.5V | 5.5V | 0.9V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 105°C | 93% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | - | - | - | - |
|
MYRGP180100B21RADC DC CONVERTER 1.8V |
2,525 |
|
Техническая документация |
PicoBK MYRGP-B | 8-PowerTDFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.5V | 5.5V | 1.8V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 105°C | 93% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | - | - | - | - |
|
|
MYRGM085150B31RADC DC CONVERTER 0.85V |
2,459 |
|
Техническая документация |
PicoBK MYRGM-B | 9-PowerTFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.85V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 105°C | 92% | - | - | Surface Mount | 0.13" L x 0.10" W x 0.04" H (3.2mm x 2.5mm x 1.0mm) | - | - | - | - |
|
Q54SH12068NNDHDC DC CONVERTER 11.8V 802W |
3,720 |
|
Техническая документация |
Q54SH (800W) | Quarter Brick | Box | Active | Isolated Module | 1 | 40V | 60V | 11.8V | - | - | - | 68A | 802 W | 707 V | ITE (Commercial) | PMBus™, Remote On/Off | -20°C ~ 85°C | 97.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm) | Quarter Brick | Enable, Active Low | - | - |
|
|
MAXM15066AMB+TDC DC CONVERTER 5V |
2,222 |
|
Техническая документация |
Himalaya | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 60V | 5V | - | - | - | 300mA | - | - | ITE (Commercial) | OCP, OTP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm) | 10-eMGA (3x2.6) | - | - | - |
|
|
MEZDPD3603AS-8529DC DC CONVERTER 0.6-12V |
2,951 |
|
Техническая документация |
MEZDPD3603 | 13-PowerBLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 0.6 ~ 12V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output, I2C Interface | -40°C ~ 85°C | 93.2% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.24" H (15.0mm x 15.0mm x 6.2mm) | 13-LGA (15x15) | - | - | - |
|
|
MEZDPD4506A-8538DC DC CONVERTER 0.6-22V |
3,089 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-84E1DC DC CONVERTER 24V |
1,594 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 32V | 40V | 24V | - | - | - | 6A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-8533DC DC CONVERTER 0.6-22V |
1,704 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-851ADC DC CONVERTER 0.6-22V |
2,736 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-84E5DC DC CONVERTER 3.3V |
3,570 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 12V | 3.3V | - | - | - | 4A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-8539DC DC CONVERTER 0.6-22V |
4,643 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-84D9DC DC CONVERTER 5V |
3,507 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 15V | 5V | - | - | - | 6A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-8517DC DC CONVERTER 0.6-22V |
2,605 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-84D4DC DC CONVERTER 3.3V |
1,503 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 12V | 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | - | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-8512DC DC CONVERTER 0.6-22V |
2,704 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD4506A-8534DC DC CONVERTER 0.6-22V |
4,008 |
|
Техническая документация |
MEZDPD4506 | 8-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 45V | 0.6 ~ 22V | - | - | - | 6A | - | - | ITE (Commercial) | Adjustable Output | - | - | - | - | Through Hole | 0.74" L x 0.74" W x 0.34" H (18.8mm x 18.8mm x 8.5mm) | - | - | - | - |
|
|
MEZDPD1620A-84D3DC DC CONVERTER 2.5V |
2,931 |
|
Техническая документация |
MEZDPD1620 | 18-DIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4V | 10V | 2.5V | - | - | - | 15A | - | - | ITE (Commercial) | - | - | 96% | - | - | Through Hole | 0.91" L x 0.63" W x 0.56" H (23.0mm x 16.0mm x 14.1mm) | - | - | - | - |
|
|
MEZDPD1620AS-8522DC DC CONVERTER 0.6-5.5V |
1,631 |
|
Техническая документация |
MEZDPD1620 | 59-PowerBQFN Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 16V | 0.6 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Adjustable Output, I2C Interface | - | 96% | - | - | Surface Mount | 0.47" L x 0.39" W x 0.16" H (12.0mm x 10.0mm x 4.0mm) | 59-QFN (10x12) | - | - | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
