DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM1/2S-0307SH30ZDC DC CONVERTER 7.2V 500MW |
400 |
|
Техническая документация |
AM1/2S-Z (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 7.2V | - | - | - | 69mA | 0.5 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 9.7mm) | - | - | CE | - |
|
V78E09-500-SMT-TRDC DC CONVERTER 9V 4.5W |
1,518 |
|
Техническая документация |
V78E-500-SMT | 10-SMD Module, 8 Leads | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 12V | 36V | 9V | - | - | - | 500mA | 4.5 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | - | - | - |
|
PEME1-S12-D5-SDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
273 |
|
Техническая документация |
PEME1-S (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, cURus | 62368-1 |
|
AM1LS-2412DH30-NZDC DC CONVERTER +/-12V 1W |
512 |
|
Техническая документация |
AM1LS-NZ (1W) | SMD | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | -12 ~ 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 82% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm) | - | - | cULus, cURus | - |
|
1T10A1_0505D1.5UPISOLATED MODULE DC DC CONVERTERS |
495 |
|
Техническая документация |
1T10A1_1.5UP (1W) | 10-SMD Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | - | - |
|

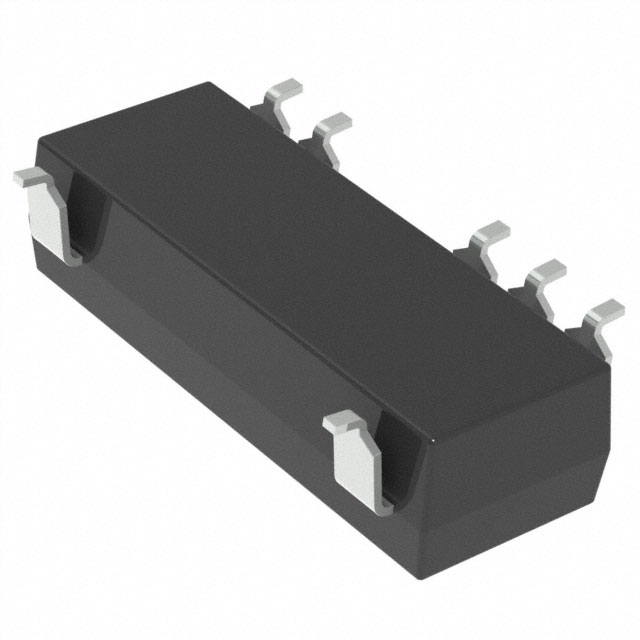

DCP011512DP-UIC ISOLATD +/-12V DL 7SOP |
150 |
|
Техническая документация |
* | 14-SMD Module, 7 Leads, Gull Wing | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 7-SOP | - | - | - |
|
|
PEME1-S24-S3-SDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
178 |
|
Техническая документация |
PEME1-S (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | CE, cURus | 62368-1 |
|
QA123C-1803R3DC/DC CONVERTER 12V 18/-3.0V 2.1 |
935 |
|
Техническая документация |
QA_C-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 18V | -3V | - | - | 100mA, 100mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
QA053-1509R3DC DC CONVERTER 5V 15/-8.7V 1. |
231 |
|
Техническая документация |
QA-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 15V | -8.7V | - | - | 80mA, 40mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
QA153C-2005R3DC DC CONVERTER 15V 20V/-5.0V 2. |
196 |
|
Техническая документация |
QA_C-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 20V | -5V | - | - | 90mA, 90mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
QA053C-1505R3DC DC CONVERTER 15V 15/-5.0V 1.4 |
193 |
|
Техническая документация |
QA_C-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 15V | -5V | - | - | 80mA, 40mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
AM2D-2407SH40ZDC DC CONVERTER 7.2V 2W |
996 |
|
Техническая документация |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 7.2V | - | - | - | 278mA | 2 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE | - |
|
AMSRB1-7812JZDC DC CONVERTER 12V 12W |
434 |
|
Техническая документация |
AMSRB1-78JZ | 3-SIP Module | Tube | Obsolete | Non-Isolated PoL Module | 1 | 16V | 36V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | 0.46" L x 0.32" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) | 3-SIP | - | - | - |
|
|
H1205WS-1WR3ISOLATED MODULE DC DC CONVERTER1 |
126 |
|
Техническая документация |
H_WS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm) | - | - | - | 60601-1; 62368-1 |
|
|
H1209WS-1WR3ISOLATED MODULE DC DC CONVERTER1 |
117 |
|
Техническая документация |
H_WS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 999 mW | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm) | - | - | - | 60601-1; 62368-1 |
|
|
H1215WS-1WR3ISOLATED MODULE DC DC CONVERTER1 |
110 |
|
Техническая документация |
H_WS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1.005 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.39" W x 0.94" H (19.5mm x 9.8mm x 24.0mm) | - | - | - | 60601-1; 62368-1 |
|

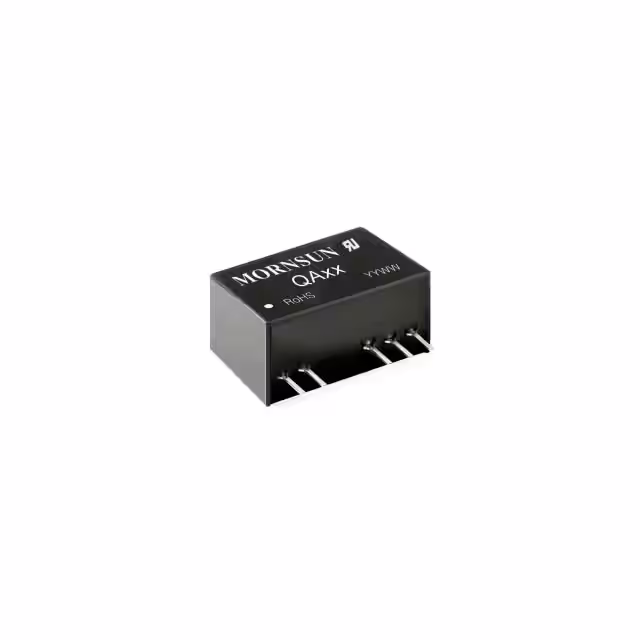

QA01DC DC CONVERTER FOR IGBT DRIVER, |
4,235 |
|
Техническая документация |
QA | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 14.5V | 15.5V | 15V | -8.7V | - | - | 80mA, 40mA | - | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | CB, CE, cURus | 60950-1; 62368-1 |
|
PDSE1-S5-S24-M-TRDC DC CONVERTER 24V 1W |
950 |
|
Техническая документация |
PDSE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 62368-1 |
|
AM1D-0505SH30ZDC DC CONVERTER 5V 1W |
320 |
|
Техническая документация |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cULus, cURus | - |
|
AM1D-0515SH30ZDC DC CONVERTER 15V 1W |
200 |
|
Техническая документация |
AM1D-Z (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | - |
