DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

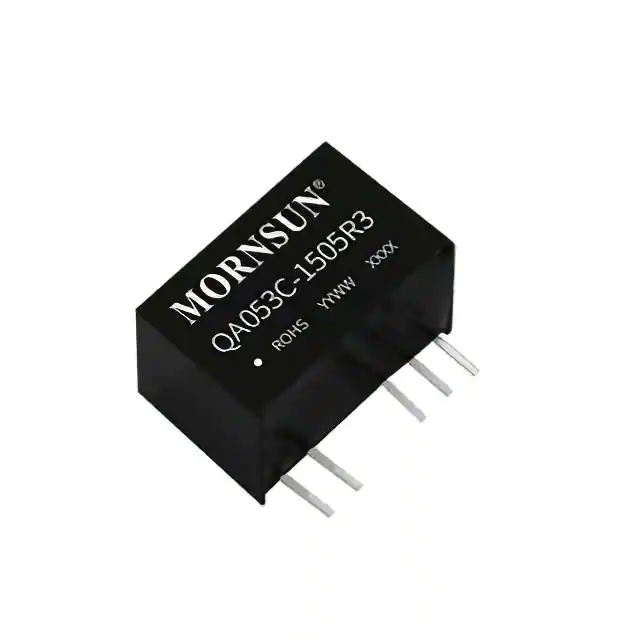

QA123C-2005R3DC/DC CONVERTER 12V 20/-5.0V 2.2 |
1,221 |
|
Техническая документация |
QA_C-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 20V | -5V | - | - | 90mA, 90mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|

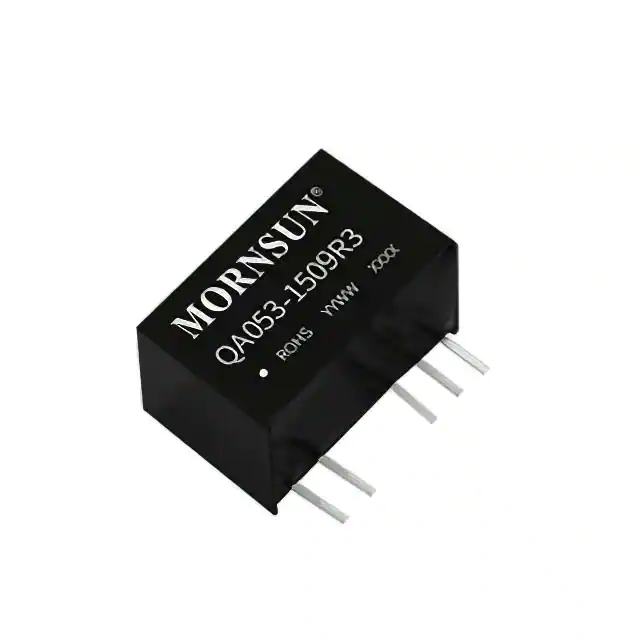

QA243-1509R3DC DC CONVERTER 15V 15/-9.0V 2.4 |
988 |
|
Техническая документация |
QA-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 15V | -9V | - | - | 100mA, 100mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
QA153C-1504R3DC DC CONVERTER 15V 15/-4.0V 2.4 |
731 |
|
Техническая документация |
QA_C-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 15V | -4V | - | - | 120mA, 120mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
QA243C-2005R3DC/DC CONVERTER 24V 20/-5.0V 2.2 |
402 |
|
Техническая документация |
QA_C-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 21.6V | 26.4V | 20V | -5V | - | - | 90mA, 90mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
QA123C-1504R3DC DC CONVERTER 12V 15V/-4.0V 2. |
328 |
|
Техническая документация |
QA_C-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 15V | -4V | - | - | 120mA, 120mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|
|
QA123-1509R3DC DC CONVERTER 12V 15/-9.0V 2.4 |
297 |
|
Техническая документация |
QA-R3 | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 15V | -9V | - | - | 100mA, 100mA | - | 5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | - | - | - | - |
|

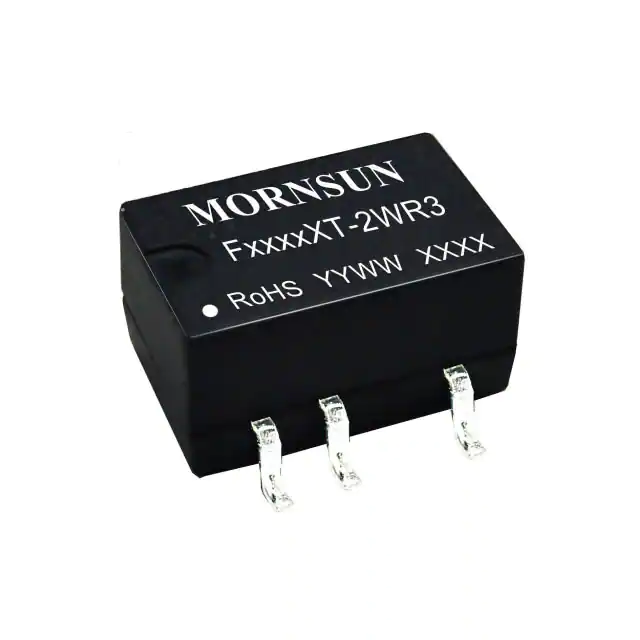

F0505XT-2WR3DC DC CONVERTER 5V 2W |
280 |
|
Техническая документация |
F0505XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, UKCA | 62368-1 |
|
F0524XT-2WR3DC DC CONVERTER 24V 2W |
156 |
|
Техническая документация |
F0524XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tray | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 86% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, UKCA | 62368-1 |
|
F0512XT-2WR3DC DC CONVERTER 12V 2W |
116 |
|
Техническая документация |
F0512XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tray | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, UKCA | 62368-1 |
|
F0509XT-2WR3DC DC CONVERTER 9V 2W |
103 |
|
Техническая документация |
F0509XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tray | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 222mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | CE, UKCA | 62368-1 |
|
MUS-0505NDC/DC CONVERTER INPUT: 5V OUTPUT |
126 |
|
Техническая документация |
MU-N (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 10.2mm) | - | - | CE, UKCA | - |
Gull Wing15.2mm.jpg)
|
PES1-S12-D5-M-TRDC DC CONVERTER +/-5V 1W |
379 |
|
Техническая документация |
PES1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
Gull Wing12.7mm.jpg)
|
PES1-S24-D5-M-TRDC DC CONVERTER +/-5V 1W |
352 |
|
Техническая документация |
PES1-M (1W) | 8-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PES1-S12-D24-M-TRDC DC CONVERTER +/-24V 1W |
279 |
|
Техническая документация |
PES1-M (1W) | 8-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PES1-S24-D9-M-TRDC DC CONVERTER +/-9V 1W |
258 |
|
Техническая документация |
PES1-M (1W) | 8-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
AM1/2S-0303SZDC DC CONVERTER 3.3V 500MW |
400 |
|
Техническая документация |
AM1/2S-Z (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 152mA | 0.5 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 9.7mm) | - | - | CE | - |
|
|
AM1/2S-0303SH30ZDC DC CONVERTER 3.3V 500MW |
400 |
|
Техническая документация |
AM1/2S-Z (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 152mA | 0.5 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 9.7mm) | - | - | CE | - |
|
|
AM1/2S-0305SZDC DC CONVERTER 5V 500MW |
400 |
|
Техническая документация |
AM1/2S-Z (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 100mA | 0.5 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 9.7mm) | - | - | CE | - |
|
|
AM1/2S-0305SH30ZDC DC CONVERTER 5V 500MW |
400 |
|
Техническая документация |
AM1/2S-Z (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 100mA | 0.5 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 9.7mm) | - | - | CE | - |
|
|
AM1/2S-0309SH30ZDC DC CONVERTER 9V 500MW |
400 |
|
Техническая документация |
AM1/2S-Z (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 9V | - | - | - | 56mA | 0.5 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 9.7mm) | - | - | CE | - |
