DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
I7A12060A008V-0C1-RDC DC CONVERTER 0.8-8V 400W |
4,262 |
|
Техническая документация |
i7A (750W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 18V | 0.8 ~ 8V | - | - | - | 60A | 480 W | - | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.50" H (36.8mm x 34.0mm x 12.7mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
PYD20-72WD12DC DC CONVERTER +/-12V 20W |
3,962 |
|
Техническая документация |
PYD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 8.5V | 160V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
|
PYD20-72WD15DC DC CONVERTER +/-15V 20W |
3,426 |
|
Техническая документация |
PYD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 8.5V | 160V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
|
PYD20-72WS12DC DC CONVERTER 12V 20W |
3,287 |
|
Техническая документация |
PYD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 8.5V | 160V | 12V | - | - | - | 1.67A | 20 W | 4.2 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
|
JHM3012S1230W PCB 9-18VDC INPUT 2:1 MEDICA |
1,000 |
|
Техническая документация |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 2.5A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3024S1230W PCB 18-36VDC INPUT 2:1 MEDIC |
4,737 |
|
Техническая документация |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 2.5A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3012S0530W PCB 9-18VDC INPUT 2:1 MEDICA |
3,684 |
|
Техническая документация |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 6A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3024S1530W PCB 18-36VDC INPUT 2:1 MEDIC |
3,209 |
|
Техническая документация |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3012S1530W PCB 9-18VDC INPUT 2:1 MEDICA |
3,996 |
|
Техническая документация |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 2A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
|
JHM3024S0530W PCB 18-36VDC INPUT 2:1 MEDIC |
1,352 |
|
Техническая документация |
JHM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 6A | 30 W | 4 kV | Medical | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, CE, TUV, UKCA, UL | 60601-1 |
|
TEN 40-4810WIEDC DC CONVERTER 3.3V 40W |
4,334 |
|
Техническая документация |
TEN 40WIE (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 12.2A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|
RP20-2415DFDC DC CONVERTER +/-15V 20W |
2,214 |
|
Техническая документация |
POWERLINE RP20-F (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
PTP20-48-S5DC-DC, ISOLATED, 15 W, 36~75 VDC |
2,072 |
|
Техническая документация |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 4A | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, UKCA | 60601-1 |
|
|
PTP20-48-S12DC-DC, ISOLATED, 15 W, 36~75 VDC |
3,164 |
|
Техническая документация |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.67A | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, UKCA | 60601-1 |
|
|
PTP20-48-S24DC-DC, ISOLATED, 15 W, 36~75 VDC |
1,720 |
|
Техническая документация |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 840mA | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, UKCA | 60601-1 |
|

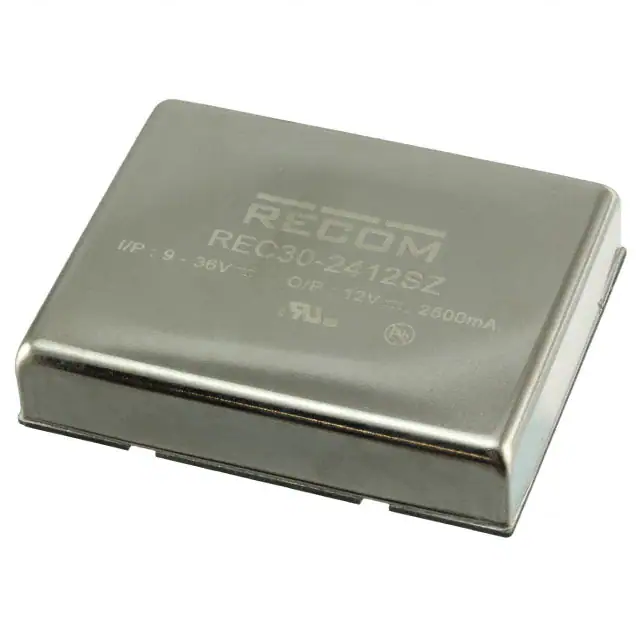

REC30-2412SZDC DC CONVERTER 12V 30W |
105 |
|
Техническая документация |
ECONOLINE REC30-Z (30W) | 8-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C | 88.5% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
BMR4560105/001DC DC CONVERTER 12V 420W |
3,120 |
|
Техническая документация |
BMR456 | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
QME48T35120-NJB0GDC DC CONVERTER 12V 420W |
270 |
|
Техническая документация |
ipwer™ | 5-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.30" L x 1.45" W x 0.43" H (58.4mm x 36.8mm x 11.0mm) | - | Enable, Active Low | - | - |
|
QME48T40033-NGB0GDC DC CONVERTER 3.3V 132W |
270 |
|
Техническая документация |
QME48T40 | 8-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 40A | 132 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.30" L x 1.45" W x 0.43" H (58.4mm x 36.8mm x 10.8mm) | - | Enable, Active Low | - | - |
|
|
QME48T40012-NGB0GDC DC CONVERTER 1.2V 48W |
270 |
|
Техническая документация |
QME48T40 | 8-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 1.2V | - | - | - | 40A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.30" L x 1.45" W x 0.43" H (58.4mm x 36.8mm x 10.9mm) | Quarter Brick | - | - | - |
