DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRC40W-110-S24DC-DC, ISOLATED, 40 W, 40 ~ 160 |
1,068 |
|
Техническая документация |
PRC40W (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 1.667A | 40 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | CE, UKCA | 62368-1 |
|
|
JMR2024S0520W PCB DIP24 9-36VDC INPUT 4:1 |
1,274 |
|
Техническая документация |
JMR20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 88.5% | - | - | Through Hole | 1.61" L x 1.00" W x 0.40" H (41.0mm x 25.4mm x 10.2mm) | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR2024S1220W PCB DIP24 9-36VDC INPUT 4:1 |
2,167 |
|
Техническая документация |
JMR20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 88.5% | - | - | Through Hole | 1.61" L x 1.00" W x 0.40" H (41.0mm x 25.4mm x 10.2mm) | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
RP10-2415DEW/M2DC DC CONVERTER +/-15V 10W |
1,132 |
|
Техническая документация |
POWERLINE RP10-EW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
BMR4560004/001DC DC CONVERTER 12V 420W |
3,434 |
|
Техническая документация |
BMR456 (468W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.44" H (57.9mm x 36.8mm x 11.3mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

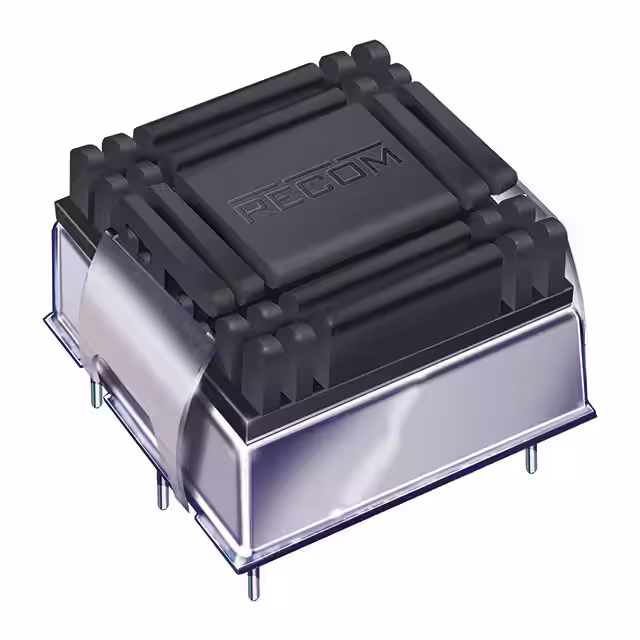

RP10-2412SAW/P-HCDC DC CONVERTER 12V 10W |
4,684 |
|
Техническая документация |
POWERLINE RP10-AW (10W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 830mA | 10 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 81°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.65" H (25.4mm x 25.4mm x 16.5mm) | - | Enable, Active High | cURus, EAC | - |
|
PKM4613ANHPISPDC DC CONVERTER 11.6V 580W |
2,373 |
|
Техническая документация |
PKM4000NH (580W) | Quarter Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 11.6V | - | - | - | 50A | 580 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.45" H (57.9mm x 36.8mm x 11.4mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
40IMX4-15-8GDC DC CONVERTER 15V 4.2W |
3,490 |
|
Техническая документация |
Melcher IMX4 (4W) | 24-DIP Module, 13 Leads | Bulk | Active | Isolated Module, Conformal Coated | 1 | 16.8V | 75V | 15V | - | - | - | 280mA | 4.2 W | 2 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.30" L x 0.79" W x 0.33" H (33.0mm x 20.1mm x 8.4mm) | - | - | - | - |
|
|
SSQE48T07120-NABFGDC DC CONVERTER 12V 84W |
199 |
|
Техническая документация |
SSQE48 | 8-DIP Module, 1/16 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 7A | 84 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm) | - | Enable, Active Low | - | - |
|
RP15-243.3SAW/PDC DC CONVERTER 3.3V 15W |
3,753 |
|
Техническая документация |
POWERLINE RP15-AW (15W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 4A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | - | - |
|
|
PTP20-24-S5DC-DC, ISOLATED, 15 W, 18~36 VDC |
2,066 |
|
Техническая документация |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 4A | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, UKCA | 60601-1 |
|
|
PTP20-24-S12DC-DC, ISOLATED, 15 W, 18~36 VDC |
3,585 |
|
Техническая документация |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.67A | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, UKCA | 60601-1 |
|
|
PTP20-24-S24DC-DC, ISOLATED, 15 W, 18~36 VDC |
1,021 |
|
Техническая документация |
PTP20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 840mA | 20 W | 7 kV | Medical | - | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CE, UKCA | 60601-1 |
|
|
PRC60-48-S5DC-DC, ISOLATED, 60 W, 18~75 VDC |
3,755 |
|
Техническая документация |
PRC60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | CE, UKCA | 62368-1 |
|
THM 15-2423WIDC DC CONVERTER +/-15V 15W |
2,123 |
|
Техническая документация |
THM 15WI (15W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
AVQ300-48S12B-4LDC DC CONVERTER 12V |
148 |
|
Техническая документация |
AVQ300 (300W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 25A | - | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 94.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | - | - |
|
AVD200-48S12TL12V 200W SIXTEENTH BRICK |
200 |
|
Техническая документация |
AVD200-48S12 (200W) | Sixteenth Brick | Tape & Reel (TR) | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 93.9% | - | - | Surface Mount | 1.30" L x 0.90" W x 0.44" H (33.0mm x 22.9mm x 11.1mm) | Sixteenth Brick | - | CE, CSA, TUV, UL | 62368-1 |
|
|
AVD200-48S12B-7TL12V 200W SIXTEENTH BRICK |
199 |
|
Техническая документация |
AVD200-48S12 (200W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 93.9% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | - | CE, CSA, TUV, UL | 62368-1 |
|
LTM4630IY-1B#PBFDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
2,340 |
|
Техническая документация |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 18A, 18A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) | 144-BGA (16x16) | - | - | - |
|
|
I7A12060A008V-0F1-RDC DC CONVERTER 0.8-8V 400W |
4,761 |
|
Техническая документация |
i7A (750W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 18V | 0.8 ~ 8V | - | - | - | 60A | 480 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.98" H (36.8mm x 34.0mm x 24.9mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 62368-1 |
