DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IK0512SADC DC CONVERTER 12V 250MW |
305 |
|
Техническая документация |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 20.83mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
|
IK1212SADC DC CONVERTER 12V 250MW |
204 |
|
Техническая документация |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 20.83mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 62% | - | - | Through Hole | 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm) | - | - | - | - |
|
1S7BE_2412D6UISOLATED MODULE DC DC CONVERTERS |
148 |
|
Техническая документация |
1S7B_6U (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 22.8V | 25.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
TMA 1215DDC DC CONVERTER +/-15V 1W |
488 |
|
Техническая документация |
TMA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
PMU8218 DDC DC CONVERTER 0.6-5.5V 22W |
843 |
|
Техническая документация |
PMU8000 | 24-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 17V | 0.6 ~ 5.5V | - | - | - | 4A | 22 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 88.5% | - | - | Surface Mount | 0.30" L x 0.30" W x 0.21" H (7.5mm x 7.5mm x 5.4mm) | - | Enable, Active High | CB, CSA, IEC, TUV, UL | 62368-1 |
|
IA2412SDC DC CONVERTER +/-12V 1W |
468 |
|
Техническая документация |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
|
IA1212SDC DC CONVERTER +/-12V 1W |
162 |
|
Техническая документация |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
|
1S7BE_2424S6UISOLATED MODULE DC DC CONVERTERS |
160 |
|
Техническая документация |
1S7B_6U (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 22.8V | 25.2V | 24V | - | - | - | 42mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
RPM5.0-2.0DC DC CONVERTER 5V |
652 |
|
Техническая документация |
INNOLINE RPM-2.0 | 25-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 5V | - | - | - | 2A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 98% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
|
RPX-2.5-CTDC DC CONVERTER 1.2-6V |
938 |
|
Техническая документация |
INNOLINE RPX-2.5 | 9-PowerQFN Module | Bag | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 1.2 ~ 6V | - | - | - | 2.5A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 91% | - | - | Surface Mount | 0.18" L x 0.16" W x 0.08" H (4.6mm x 4.1mm x 2.1mm) | 9-QFN (4.6x4.1) | - | - | - |
|
PUC2405S1BDC DC CONVERTER 5V 1W |
775 |
|
Техническая документация |
PUC-1B (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 6 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | 0.78" L x 0.28" W x 0.45" H (19.7mm x 7.1mm x 11.5mm) | - | - | cURus, IEC, UL | 62368-1 |
|
PCSA1-S12-S5-SDC DC CONVERTER 5V 1W |
285 |
|
Техническая документация |
PSCA1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
2S4E_4805S1UISOLATED MODULE DC DC CONVERTERS |
238 |
|
Техническая документация |
2S4E_1U (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 43.2V | 52.8V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | 60950-1 |
|
TME 2409SDC DC CONVERTER 9V 1W |
330 |
|
Техническая документация |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|
CRL2S1205SCDC DC CONVERTER 5V 2W |
117 |
|
Техническая документация |
CLR2 (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.55" L x 0.30" W x 0.39" H (14.0mm x 7.5mm x 10.0mm) | - | - | - | - |
|
MER1S0505SCDC DC CONVERTER 5V 1W |
420 |
|
Техническая документация |
MER1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
EPM78V2-06R5-01R0RSWITCH REG DCDC CONV 1000MA 6.5V |
349 |
|
Техническая документация |
- | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 8V | 32V | 6.5V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 90°C (With Derating) | 94% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|

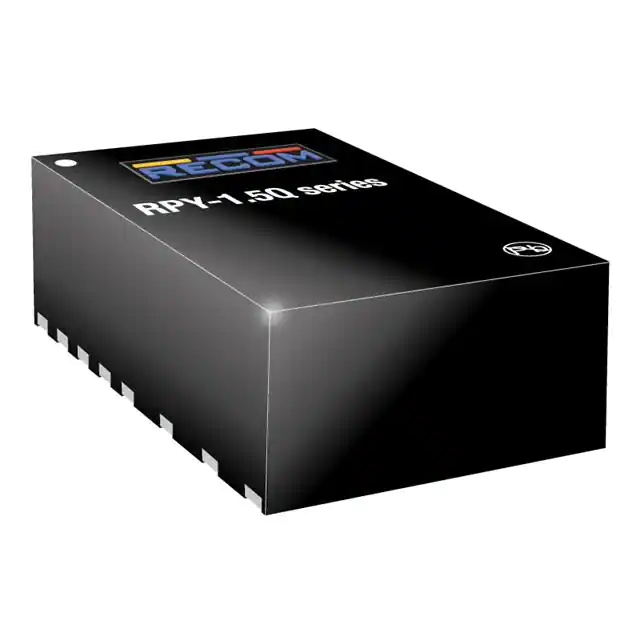

RPY-1.5Q-R1.5A DC/DC-CONVERTER 'INNOLINE' |
5,019 |
|
Техническая документация |
RPY-1.5Q | 17-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 0.8 ~ 34.8V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 109°C | 95% | - | - | Surface Mount, Wettable Flank | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 17-QFN (3x5) | - | - | - |
|
RM-123.3SDC DC CONVERTER 3.3V 250MW |
337 |
|
Техническая документация |
ECONOLINE RM (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 76mA | 250 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
R2SX-053.3-RDC DC CONVERTER 3.3V 2W |
423 |
|
Техническая документация |
ECONOLINE R2SX (2W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 606mA | 2 W | 1 kV | ITE (Commercial) | OCP | -40°C ~ 100°C (With Derating) | 79% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.31" H (15.2mm x 10.7mm x 8.0mm) | - | - | CB, cURus | - |
