DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0.5S7B_0505S3UPISOLATED MODULE DC DC CONVERTERS |
165 |
|
Техническая документация |
0.5S7B_3UP (0.5W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 100mA | 500 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.0mm x 10.0mm) | - | - | - | - |
|
SBTN01L-15DC DC CONVERTER 15V 1W |
246 |
|
Техническая документация |
SBTN01 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Surface Mount | 0.51" L x 0.43" W x 0.28" H (12.9mm x 10.9mm x 7.1mm) | - | - | - | - |
|
TBA 2-0513DC DC CONVERTER 15V 2W |
130 |
|
Техническая документация |
TBA 2 (2W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 130mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
LMO78_12-1.0NON-ISOLATED POL MODULE DC DC 1 |
2,032 |
|
Техническая документация |
LMO78_1.0 | 3-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 16V, 8V | 36V, 20V | 12V | - | - | - | 1A, 300mA | 16 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | 0.45" L x 0.30" W x 0.69" H (11.5mm x 7.5mm x 17.5mm) | - | - | CE, cURus | 60950-1 |
|
MPM38111GR-PDC DC CONVERTER 1.8V 1.2V |
2,028 |
|
Техническая документация |
- | 14-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 2 | 2.7V | 6V | 1.8V | 1.2V | - | - | 1A, 1A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 93% | - | - | Surface Mount | 0.16" L x 0.16" W x 0.06" H (4.1mm x 4.1mm x 1.5mm) | 14-QFN (4x4) | - | - | - |
|

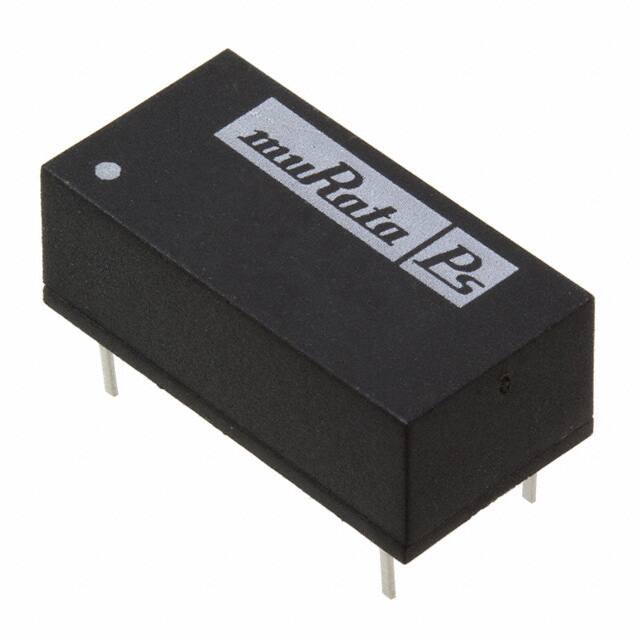

NMA1205DCDC DC CONVERTER +/-5V 1W |
1,777 |
|
Техническая документация |
NMA (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm) | - | - | - | - |
.jpg)
|
MEA1D1215SCDC DC CONVERTER +/-15V 1W |
479 |
|
Техническая документация |
MEA1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
MEU1S1212ZCDC DC CONVERTER 12V 1W |
307 |
|
Техническая документация |
MEU1 (1W) | 4-DIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.33" L x 0.24" W x 0.31" H (8.3mm x 6.1mm x 8.0mm) | - | - | - | - |
|
|
NMA2412SCDC DC CONVERTER +/-12V 1W |
300 |
|
Техническая документация |
NMA (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm) | - | - | - | - |
|

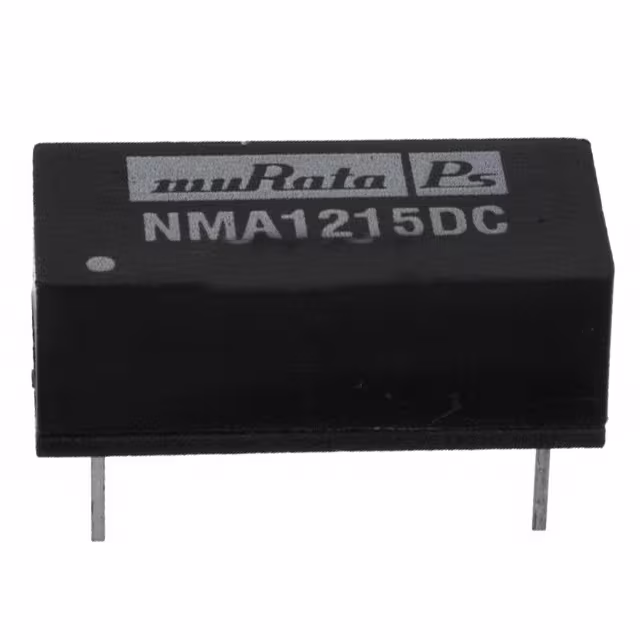

NMA1215DCDC DC CONVERTER +/-15V 1W |
213 |
|
Техническая документация |
NMA (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm) | - | - | - | - |
|
|
MEA1D1512SCDC DC CONVERTER +/-12V 1W |
125 |
|
Техническая документация |
MEA1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
MEF1S2403SPCDC DC CONVERTER 3.3V 1W |
122 |
|
Техническая документация |
MEF1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 22.8V | 25.2V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|

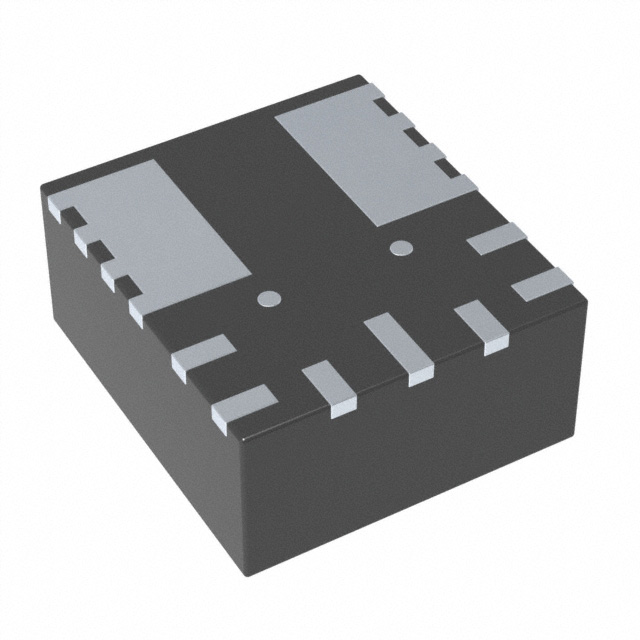

RPX-2.5-RDC DC CONVERTER 1.2-6V |
10,834 |
|
Техническая документация |
INNOLINE RPX-2.5 | 9-PowerQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 1.2 ~ 6V | - | - | - | 2.5A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 91% | - | - | Surface Mount | 0.18" L x 0.16" W x 0.08" H (4.6mm x 4.1mm x 2.1mm) | 9-QFN (4.6x4.1) | - | - | - |
|
2S7BE_0324S3UISOLATED MODULE DC DC CONVERTERS |
212 |
|
Техническая документация |
2S7BE_3U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 24V | - | - | - | 83.3mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | 60950-1 |
|
|
2S7BE_2412S3UISOLATED MODULE DC DC CONVERTERS |
149 |
|
Техническая документация |
2S7BE_3U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 166.7mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | 60950-1 |
|
|
2S7BE_2405S3UISOLATED MODULE DC DC CONVERTERS |
115 |
|
Техническая документация |
2S7BE_3U (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | CE, cURus | 60950-1 |
|
MEE1S1209SCDC DC CONVERTER 9V 1W |
103 |
|
Техническая документация |
MEE1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
EPM7121V-05R-200SHDC DC CONV 1W 12VIN 5VOUT 200MA |
284 |
|
Техническая документация |
EPM7-1V (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | 62368-1 |
|
LMS78_15-2.0RNON-ISOLATED POL MODULE DC DC CO |
143 |
|
Техническая документация |
LMS78_2.0R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 18V | 36V | 15V | - | - | - | 2A | 30 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm) | - | - | - | 62368-1 |
|
TMA 0515SDC DC CONVERTER 15V 1W |
1,024 |
|
Техническая документация |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
