DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEC 2-1210WIDC DC CONVERTER 3.3V 1.7W |
264 |
|
Техническая документация |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 3.3V | - | - | - | 500mA | 1.7 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TEC 2-1211WIDC DC CONVERTER 5V 2W |
183 |
|
Техническая документация |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 400mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 2-2412WIDC DC CONVERTER 12V 2W |
155 |
|
Техническая документация |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 167mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|

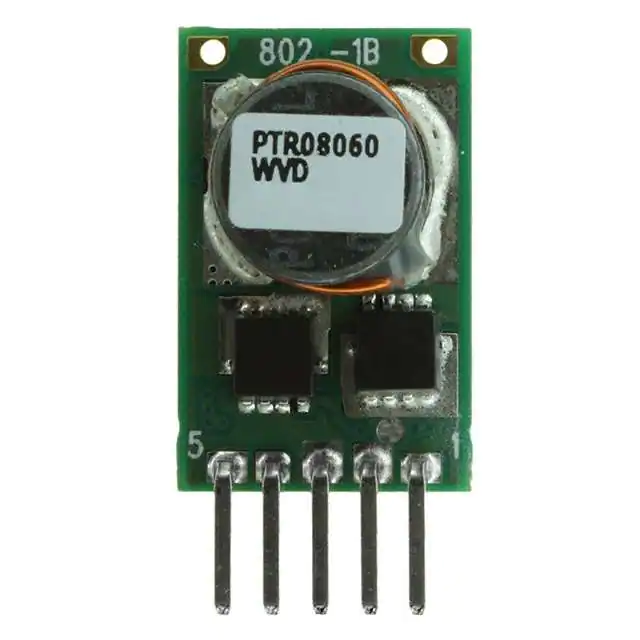

PTR08060WVDDC DC CONVERTER 0.6-5.5V |
246 |
|
Техническая документация |
PTR08060W | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.6 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.41" L x 0.37" W x 0.65" H (10.4mm x 9.4mm x 16.5mm) | - | - | - | - |
|
LCW78_03-1.0NON-ISOLATED POL MODULE DC DC CO |
193 |
|
Техническая документация |
LCW78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 5V | 72V | 3.3V | - | - | - | 1A | 3.3 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 0.48" L x 0.35" W x 0.69" H (12.1mm x 9.0mm x 17.5mm) | - | - | - | - |
|
CC3-2412DF-EDC DC CNVRTR +/-12V TO +/-15V 3W |
10,253 |
|
Техническая документация |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 12 ~ 15V | -12 ~ -15V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
CC3-1205SR-EDC DC CONVERTER 5V 3W |
1,835 |
|
Техническая документация |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC3-2412DR-EDC DC CNVRTR +/-12V TO +/-15V 3W |
1,767 |
|
Техническая документация |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 12 ~ 15V | -12 ~ -15V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC3-1212DF-EDC DC CNVRTR +/-12V TO +/-15V 3W |
1,147 |
|
Техническая документация |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 18V | 12 ~ 15V | -12 ~ -15V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC3-0505SF-EDC DC CONVERTER 5V 3W |
1,061 |
|
Техническая документация |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC3-2403SF-EDC DC CONVERTER 3.3V 3W |
120 |
|
Техническая документация |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 800mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
LGA03C-00SADJJDC DC CONVERTER 0.59-5.1V 15W |
596 |
|
Техническая документация |
LGAC (15W) | 24-PowerBLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 14V | 0.59 ~ 5.1V | - | - | - | 3A | 15 W | - | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.65" L x 0.65" W x 0.13" H (16.5mm x 16.5mm x 3.3mm) | 24-LGA (16.51x16.51) | Enable, Active High | - | - |
|
DCP010512BPDC DC CONVERTER 12V 1W |
244 |
|
Техническая документация |
DCP01B (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 85% | - | - | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | Enable, Active High | - | - |
|
SD02S2405ADC DC CONVERTER 5V 2W |
911 |
|
Техническая документация |
SD02S/D (2W) | 16-SMD Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.94" L x 0.71" W x 0.31" H (23.9mm x 18.1mm x 8.0mm) | - | - | - | - |
|
ADUM6020-5BRIZ-RLDC DC CONVERTER 3.3V 5V 0.5W |
581 |
|
Техническая документация |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V, 5V | - | - | - | 100mA | - | 5 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | 33% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.10" H (12.8mm x 7.5mm x 2.6mm) | 16-SOIC | - | - | - |
|
OKL2-T/12-W12N2-CDC DC CONVERTER 0.69-5.5V 66W |
783 |
|
Техническая документация |
Okami™ OKL2-T/12-W12 | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 12A | 66 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.34" H (20.3mm x 11.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
LCW78_24-0.7DC-DC POL |
117 |
|
Техническая документация |
LCW78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 27V | 72V | 24V | - | - | - | 700mA | 17 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 96% | - | - | Through Hole | 0.48" L x 0.35" W x 0.69" H (12.1mm x 9.0mm x 17.5mm) | - | - | - | - |
|
R-78B3.3-1.5LDC DC CONVERTER 3.3V 4.95W |
1,331 |
|
Техническая документация |
INNOLINE R-78B-1.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 18V | 3.3V | - | - | - | 1.5A | 4.95 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 91% | - | - | Through Hole, Right Angle | 0.69" L x 0.45" W x 0.33" H (17.5mm x 11.5mm x 8.5mm) | - | - | - | - |
|
|
AG9712-2BRDC DC CONVERTER 12V 12W |
201 |
|
Техническая документация |
AG9700 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | OCP, OTP | -20°C ~ 70°C | 84% | - | - | Through Hole | 2.20" L x 0.75" W x 0.55" H (56.0mm x 19.0mm x 14.0mm) | - | - | - | 60950-1 |
|
|
TEC 2-1223WIDC DC CONVERTER +/-15V 2W |
289 |
|
Техническая документация |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
