DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDQ2-D48-D5-SDC DC CONVERTER +/-5V 2W |
319 |
|
Техническая документация |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | EN | 55032 Class A |
|
PTH08000WASDC DC CONVERTER 0.9-5.5V |
117 |
|
Техническая документация |
PTH08000W | 6-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.9 ~ 5.5V | - | - | - | 2.25A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 93.5% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
R-78B9.0-1.0DC DC CONVERTER 9V 9W |
255 |
|
Техническая документация |
INNOLINE R-78B-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 12V | 32V | 9V | - | - | - | 1A | 9 W | - | ITE (Commercial), Medical | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.45" L x 0.33" W x 0.69" H (11.5mm x 8.5mm x 17.5mm) | - | - | - | - |
|
TSM 0515DDC DC CONVERTER +/-15V 900MW |
181 |
|
Техническая документация |
TSM (1W) | 18-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 30mA, 30mA | 900 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.60" L x 0.31" W x 0.28" H (15.2mm x 8.0mm x 7.1mm) | - | - | - | - |
|
TEC 2-2411DC DC CONVERTER 5V 2W |
1,622 |
|
Техническая документация |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 400mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TPSM84A21MOJRDC DC CONVERTER 0.55-1.35V |
1,072 |
|
Техническая документация |
SWIFT™ | 20-QFN Exposed Pad Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 0.55 ~ 1.35V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, UVLO | -40°C ~ 85°C | 86.5% | - | - | Surface Mount | 0.59" L x 0.35" W x 0.09" H (15.0mm x 9.0mm x 2.3mm) | 20-QFM (9x15) | - | - | - |
|

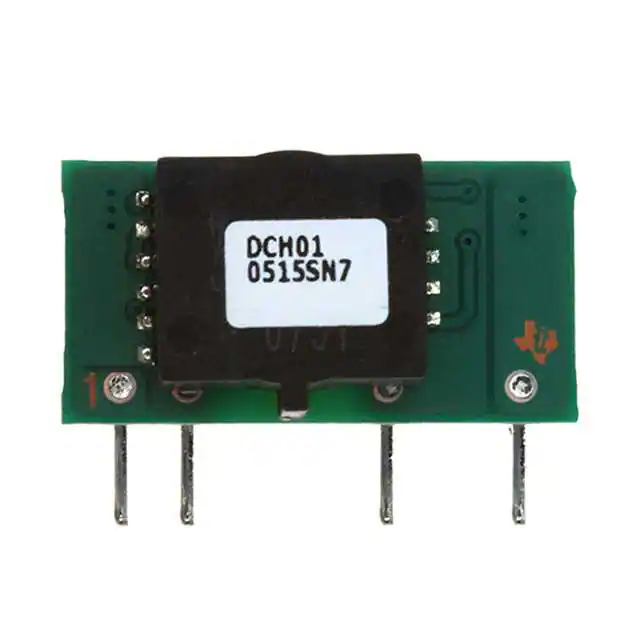

DCH010515SN7DC DC CONVERTER 15V 1W |
279 |
|
Техническая документация |
DCH01 (1W) | 7-SIP Module, 4 Leads | Tray | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
IU2415SADC DC CONVERTER 15V 2W |
2,708 |
|
Техническая документация |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | - | - | 62368-1 |
|
IU1224SADC DC CONVERTER 24V 2W |
780 |
|
Техническая документация |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | - | - | 62368-1 |
|
|
IU0512SADC DC CONVERTER 12V 2W |
154 |
|
Техническая документация |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | - | - | 62368-1 |
|
DCWN06B-12DC DC CONVERTER +/-12V 6W |
923 |
|
Техническая документация |
DCWN06 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
DCWN06B-05DC DC CONVERTER +/-5V 5W |
689 |
|
Техническая документация |
DCWN06 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
LMZ14201HTZE/NOPBDC DC CONVERTER 5-30V |
681 |
|
Техническая документация |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 5 ~ 30V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 97% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
|
SCWN06C-12DC DC CONVERTER 12V 6W |
660 |
|
Техническая документация |
SCWN06 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, EAC | - |
|
LMZ14201TZE-ADJ/NOPBDC DC CONVERTER 0.8-6V |
281 |
|
Техническая документация |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 0.8 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 90% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
SCWN06A-15DC DC CONVERTER 15V 6W |
225 |
|
Техническая документация |
SCWN06 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 400mA | 6 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, EAC | - |
|
|
TSM 0512DDC DC CONVERTER +/-12V 960MW |
225 |
|
Техническая документация |
TSM (1W) | 18-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 40mA, 40mA | 960 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | 0.60" L x 0.31" W x 0.28" H (15.2mm x 8.0mm x 7.1mm) | - | - | - | - |
|
|
TSM 1212DDC DC CONVERTER +/-12V 960MW |
115 |
|
Техническая документация |
TSM (1W) | 18-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 40mA, 40mA | 960 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.60" L x 0.31" W x 0.28" H (15.2mm x 8.0mm x 7.1mm) | - | - | - | - |
|
7812SR-CDC DC CONVERTER 12V 4.8W |
692 |
|
Техническая документация |
78xxSR | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 15V | 36V | 12V | - | - | - | 400mA | 4.8 W | - | ITE (Commercial) | SCP | -40°C ~ 70°C | - | - | - | Through Hole | 0.75" L x 0.41" W x 0.37" H (19.1mm x 10.4mm x 9.3mm) | - | - | - | - |
|
MEV3S1215SCDC DC CONVERTER 15V 3W |
263 |
|
Техническая документация |
MEV3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
