Промышленные блоки питания на DIN-рейку
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJA100F-24-N2AC/DC DIN RAIL SUPPLY 24V 103W |
1,737 |
|
Техническая документация |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.3A | 103W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Universal Input | 4.29" L x 1.61" W x 3.82" H (109.0mm x 40.9mm x 97.0mm) | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|

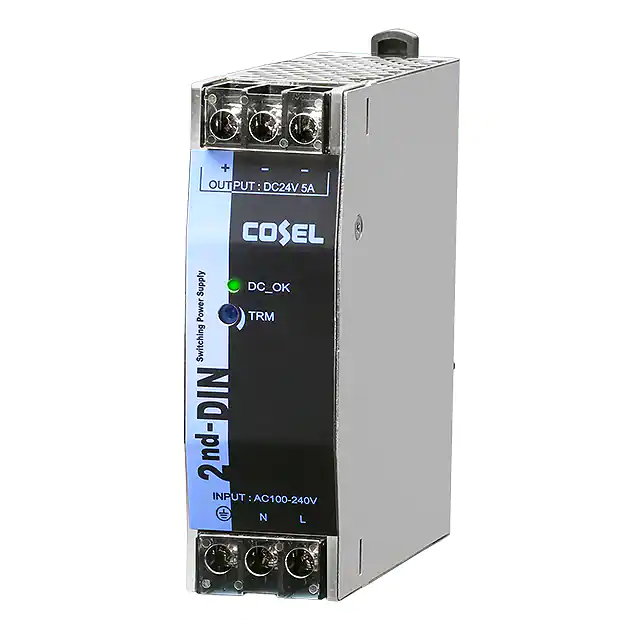

KLNA120F-24AC/DC DIN RAIL SUPPLY 24V 120W |
3,290 |
|
Техническая документация |
KLNA (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90% | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | 4.77" L x 1.46" W x 4.88" H (121.2mm x 37.1mm x 124.0mm) | CE, cULus, cURus, DEMKO | 60950-1 |
|
6EP33206SB000AY0DC/DC DIN RAIL SUPPLY 12V |
2,237 |
|
Техническая документация |
6EP3 | Box | Active | DC | 1 | - | 110V | 300V | 12V | - | - | - | - | - | 900mA | - | - | Industrial, ITE (Commercial) | 78% | -25°C ~ 70°C | Adjustable Output, IP20 | 2.09" L x 0.71" W x 3.54" H (53.0mm x 18.0mm x 90.0mm) | cCSAus, CE, CSA, cULus, cURus, EAC, UL | 60950-1; UL 508 |
|
PSC-6024AC/DC DIN RAIL SUPPLY 24V 60W |
4,318 |
|
Техническая документация |
PSC-60 (60W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 4.242 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, TUV, UR | 508; 60950-1 |
|
DRS-24V100W1ARAC/DC DIN RAIL SUPPLY 24V 100W |
1,879 |
|
Техническая документация |
Sync (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4A | 100W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | 3.94" L x 1.77" W x 2.95" H (100.0mm x 45.0mm x 75.0mm) | CB, CE, cULus, cURus, TUV | - |
|
DSR75PS24AC/DC DIN RAIL SUPPLY 24V 77W |
3,439 |
|
Техническая документация |
DSR75 (75W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.2A | 77W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.47" L x 1.26" W x 4.88" H (113.5mm x 32.0mm x 124.0mm) | CB, CE, cURus, cULus, TUV | 62368-1 |
|
|
WDA90F-48AC/DC POWER SUPPLY, DIN RAIL |
2,561 |
|
Техническая документация |
WDA (90W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.9A | 91W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.72" L x 1.26" W x 3.54" H (94.5mm x 32.0mm x 90.0mm) | CE, cURus, DEMKO, UKCA | 62368-1 |
|
|
WDA90F-24AC/DC POWER SUPPLY, DIN RAIL |
1,489 |
|
Техническая документация |
WDA (90W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.72" L x 1.26" W x 3.54" H (94.5mm x 32.0mm x 90.0mm) | CE, cURus, DEMKO, UKCA | 62368-1 |
|
|
WDA90F-12AC/DC POWER SUPPLY, DIN RAIL |
2,760 |
|
Техническая документация |
WDA (90W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 7.5A | 90W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.72" L x 1.26" W x 3.54" H (94.5mm x 32.0mm x 90.0mm) | CE, cURus, DEMKO, UKCA | 62368-1 |
|
DRP012V100W1AAAC/DC DIN RAIL SUPPLY 12V 100W |
4,333 |
|
Техническая документация |
CliQ (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.33A | 100W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.76" L x 1.97" W x 4.65" H (121.0mm x 50.0mm x 118.2mm) | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
|
|
PJA100F-12-N2AC/DC DIN RAIL SUPPLY 12V 101W |
4,388 |
|
Техническая документация |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.4A | 101W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 70°C (With Derating) | Universal Input | 4.29" L x 1.61" W x 3.82" H (109.0mm x 40.9mm x 97.0mm) | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|
|
PJA100F-15-N2AC/DC DIN RAIL SUPPLY 15V 101W |
3,940 |
|
Техническая документация |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 6.7A | 101W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Universal Input | 4.29" L x 1.61" W x 3.82" H (109.0mm x 40.9mm x 97.0mm) | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|
|
PJA100F-36-N2AC/DC DIN RAIL SUPPLY 36V 101W |
1,536 |
|
Техническая документация |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 2.8A | 101W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Universal Input | 4.29" L x 1.61" W x 3.82" H (109.0mm x 40.9mm x 97.0mm) | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|
|
PJA100F-48-N2AC/DC DIN RAIL SUPPLY 48V 101W |
2,859 |
|
Техническая документация |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.1A | 101W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Universal Input | 4.29" L x 1.61" W x 3.82" H (109.0mm x 40.9mm x 97.0mm) | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|
PS-S6005AC/DC DIN RAIL SUPPLY 5V 50W |
4,690 |
|
Техническая документация |
PS-S60 (60W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 10A | 50W | 3 kV | Industrial, ITE (Commercial) | 78% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CE, cULus | 508; 60950-1 |
|
|
PS-S6012AC/DC DIN RAIL SUPPLY 12V 60W |
1,875 |
|
Техническая документация |
PS-S60 (60W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 5A | 60W | 3 kV | Industrial, ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CE, cULus | 508; 60950-1 |
|
|
PS-6005AC/DC DIN RAIL SUPPLY 5V 32W |
2,302 |
|
Техническая документация |
PS-60 (60W) | Bulk | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 5V | - | - | - | - | - | 6.5A | 32W | 3 kV | ITE (Commercial) | 76% | -20°C ~ 60°C (With Derating) | Universal Input | 3.07" L x 2.20" W x 3.66" H (78.0mm x 56.0mm x 93.0mm) | CE, cURus | 60950-1 |
|
|
PS-6012AC/DC DIN RAIL SUPPLY 12V 54W |
4,888 |
|
Техническая документация |
PS-60 (60W) | Bulk | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 12V | - | - | - | - | - | 4.5A | 54W | 3 kV | ITE (Commercial) | 82% | -20°C ~ 60°C (With Derating) | Universal Input | 3.07" L x 2.20" W x 3.66" H (78.0mm x 56.0mm x 93.0mm) | CE, cURus | 60950-1 |
|
|
PS-6024AC/DC DIN RAIL SUPPLY 24V 60W |
4,533 |
|
Техническая документация |
PS-60 (60W) | Bulk | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 84% | -20°C ~ 60°C (With Derating) | Universal Input | 3.07" L x 2.20" W x 3.66" H (78.0mm x 56.0mm x 93.0mm) | CE, cURus | 60950-1 |
|
|
PS-S6048AC/DC DIN RAIL SUPPLY 48V 60W |
3,004 |
|
Техническая документация |
PS-S60 (60W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 1.25A | 60W | 3 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CE, cULus | 508; 60950-1 |
