Промышленные блоки питания на DIN-рейку
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYBE30-Q48-D5H-DINDC-DC ISOLATED, 30 W, 18~75 VDC |
2,697 |
|
Техническая документация |
PYBE30 (30W) | Tray | Not For New Designs | DC | 2 | - | 18V | 75V | 5V | -5V | - | - | - | - | 3A, 3A | 30W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 80°C (With Derating) | Heat Sink | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE, cURus, UKCA | 62368-1 |
|
|
PYBE30-Q48-D12H-DINDC-DC ISOLATED, 30 W, 18~75 VDC |
2,304 |
|
Техническая документация |
PYBE30 (30W) | Tray | Not For New Designs | DC | 2 | - | 18V | 75V | 12V | -12V | - | - | - | - | 1.25A, 1.25A | 30W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 80°C (With Derating) | Heat Sink | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE, cURus, UKCA | 62368-1 |
|
|
PYBE30-Q48-D15H-DINDC-DC ISOLATED, 30 W, 18~75VDC I |
2,427 |
|
Техническая документация |
PYBE30 (30W) | Tray | Not For New Designs | DC | 2 | - | 18V | 75V | 15V | -15V | - | - | - | - | 1A, 1A | 30W | 1.5 kV | ITE (Commercial) | 88% | -40°C ~ 80°C (With Derating) | Heat Sink | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE, cURus, UKCA | 62368-1 |
|
|
PYBE30-Q48-S3H-DINDC-DC ISOLATED, 30 W, 18~75 VDC |
4,226 |
|
Техническая документация |
PYBE30 (30W) | Tray | Not For New Designs | DC | 1 | - | 18V | 75V | 3.3V | - | - | - | - | - | 6A | 20W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 80°C (With Derating) | Heat Sink | 2.99" L x 1.24" W x 1.18" H (76.0mm x 31.5mm x 29.9mm) | CE, cURus, UKCA | 62368-1 |
|
|
WDA60F-24AC/DC POWER SUPPLY, DIN RAIL |
4,848 |
|
Техническая документация |
WDA (60W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.72" L x 1.26" W x 3.54" H (94.5mm x 32.0mm x 90.0mm) | CE, cURus, DEMKO, UKCA | 62368-1 |
|
|
WDA60F-12AC/DC POWER SUPPLY, DIN RAIL |
2,565 |
|
Техническая документация |
WDA (60W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.72" L x 1.26" W x 3.54" H (94.5mm x 32.0mm x 90.0mm) | CE, cURus, DEMKO, UKCA | 62368-1 |
|
|
WDA60F-48AC/DC POWER SUPPLY, DIN RAIL |
1,278 |
|
Техническая документация |
WDA (60W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.3A | 62W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.72" L x 1.26" W x 3.54" H (94.5mm x 32.0mm x 90.0mm) | CE, cURus, DEMKO, UKCA | 62368-1 |
|
PS-S2024AC/DC DIN RAIL SUPPLY 24V 24W |
1,698 |
|
Техническая документация |
PS-S20 (20W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 1A | 24W | 3 kV | Industrial, ITE (Commercial) | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 0.89" W x 3.54" H (100.0mm x 22.5mm x 90.0mm) | CE, cULus | 508; 60950-1 |
|
BB-MDR-20-5AC/DC DIN RAIL SUPPLY 5V 20W |
3,656 |
|
Техническая документация |
MDR-20 (20W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 3A | 20W | 3 kV | ITE (Commercial) | 76% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 0.89" W x 3.54" H (100.0mm x 22.5mm x 90.0mm) | CB, CE, cULus, TUVgs | - |
|
|
BB-MDR-20-24AC/DC DIN RAIL SUPPLY 24V 20W |
4,186 |
|
Техническая документация |
MDR-20 (20W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1A | 20W | 3 kV | ITE (Commercial) | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 0.89" W x 3.54" H (100.0mm x 22.5mm x 90.0mm) | CB, CE, cULus, TUVgs | - |
|
|
SPDE12751SWITCHING POWER SUPPLY, 24VDC 75 |
4,963 |
|
Техническая документация |
SPDE (75W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 6.3A | 76W | 4 kV | ITE (Commercial), Laboratory | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.45" L x 1.26" W x 4.92" H (87.5mm x 32.0mm x 125.0mm) | CE, cULus, cURus, UKCA | 61010-1; 62368-1 |
|
|
SPDE48751SWITCHING POWER SUPPLY, 48VDC 75 |
3,255 |
|
Техническая документация |
SPDE (75W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 1.6A | 77W | 4 kV | ITE (Commercial), Laboratory | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 3.45" L x 1.26" W x 4.92" H (87.5mm x 32.0mm x 125.0mm) | CE, cULus, cURus, UKCA | 61010-1; 62368-1 |
|
TPC 055-148AC/DC DIN RAIL SUPPLY 48V 55W |
4,389 |
|
Техническая документация |
TPC (55W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 48V | - | - | - | - | - | 1.15A | 55W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | 3.80" L x 1.77" W x 3.54" H (96.5mm x 45.0mm x 89.9mm) | CB, CE, cCSAus, SIQ | - |
|

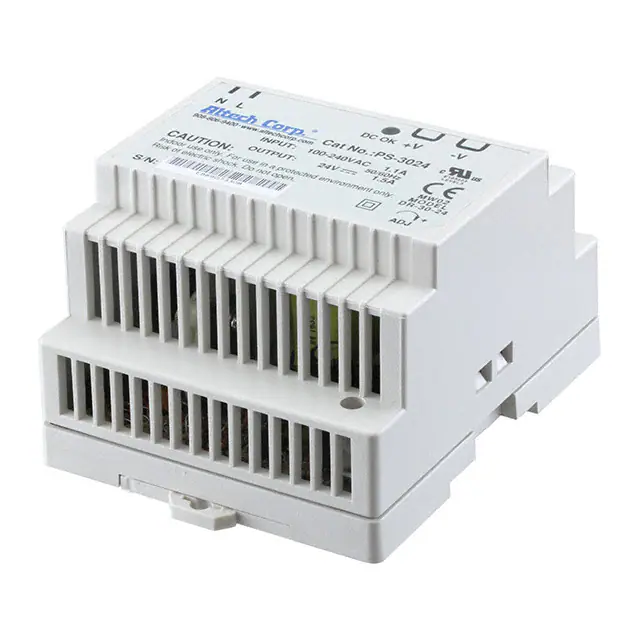

PS-3024AC/DC DIN RAIL SUPPLY 24V 36W |
3,180 |
|
Техническая документация |
PS-30 (30W) | Bulk | Obsolete | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 1.5A | 36W | 3 kV | ITE (Commercial) | 83% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 2.20" L x 3.07" W x 3.66" H (56.0mm x 78.0mm x 93.0mm) | CE, cURus | 60950-1 |
|
|
PS-S4005AC/DC DIN RAIL SUPPLY 5V 30W |
1,735 |
|
Техническая документация |
PS-S40 (40W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 6A | 30W | 3 kV | Industrial, ITE (Commercial) | 78% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CE, cULus | 508; 60950-1 |
|
|
PS-S4012AC/DC DIN RAIL SUPPLY 12V 40W |
2,136 |
|
Техническая документация |
PS-S40 (40W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 3.33A | 40W | 3 kV | Industrial, ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.94" L x 1.57" W x 3.54" H (100.0mm x 40.0mm x 90.0mm) | CE, cULus | 508; 60950-1 |
|
PYB20-Q48-D15-H-DINDC/DC DIN RAIL SUPPLY +/-15V 20W |
4,473 |
|
Техническая документация |
PYB20-DIN (20W) | Tray | Not For New Designs | DC | 2 | - | 18V | 75V | 15V | -15V | - | - | - | - | 667mA, 667mA | 20W | - | - | 87% | -40°C ~ 85°C | - | 2.99" L x 1.24" W x 1.17" H (76.0mm x 31.5mm x 29.7mm) | EN, IEC | - |
|

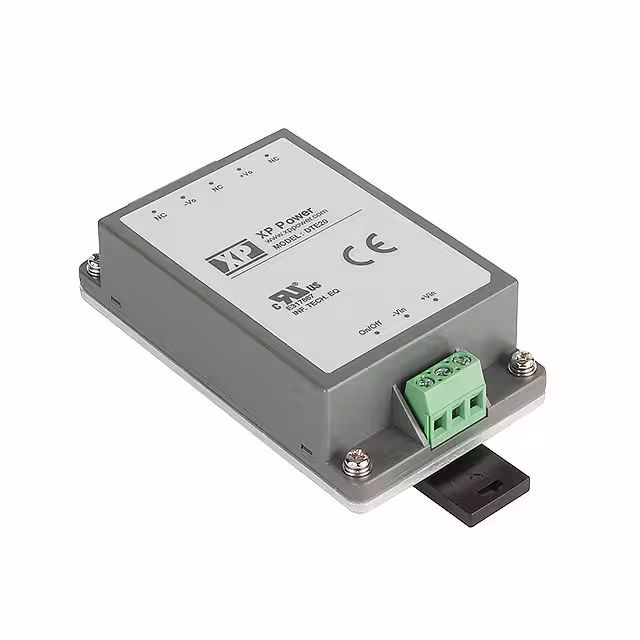

DTE2024S48-DDC/DC DIN RAIL SUPPLY 48V 20W |
2,959 |
|
Техническая документация |
DTE20 (20W) | Bulk | Active | DC | 1 | - | 9V | 36V | 48V | - | - | - | - | - | 420mA | 20W | - | ITE (Commercial) | 89% | -40°C ~ 85°C | - | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm) | CB, CE, cURus | 62368-1 |
|
PSC-6015AC/DC DIN RAIL SUPPLY 15V 60W |
4,375 |
|
Техническая документация |
PSC-60 (60W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 15V | - | - | - | - | - | 4A | 60W | 4.242 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, TUV, UR | 508; 60950-1 |
|
|
78.36.1.230.2401AC/DC DIN RAIL SUPPLY 24V 36W |
3,997 |
|
Техническая документация |
78 | Box | Obsolete | AC or DC | 1 | 100 ~ 265 VAC | 140V | 370V | 24V | - | - | - | - | - | 1.5A | 36W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | IP20 | 2.76" L x 2.39" W x 3.50" H (70.0mm x 60.8mm x 88.8mm) | CE, EAC | - |
