FET, MOSFET
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STW43N60DM2MOSFET N-CH 600V 34A TO247 |
600 |
|
Техническая документация |
MDmesh™ DM2 | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 93mOhm @ 17A, 10V | 5V @ 250µA | 56 nC @ 10 V | ±25V | 2500 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STP310N10F7MOSFET N CH 100V 180A TO-220 |
571 |
|
Техническая документация |
DeepGATE™, STripFET™ VII | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 2.7mOhm @ 60A, 10V | 3.8V @ 250µA | 180 nC @ 10 V | ±20V | 12800 pF @ 25 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 |
|
SUP57N20-33-E3MOSFET N-CH 200V 57A TO220AB |
401 |
|
Техническая документация |
TrenchFET® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 57A (Tc) | 10V | 33mOhm @ 30A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±20V | 5100 pF @ 25 V | - | 3.75W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
FDP025N06MOSFET N-CH 60V 120A TO220-3 |
939 |
|
Техническая документация |
PowerTrench® | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 2.5mOhm @ 75A, 10V | 4.5V @ 250µA | 226 nC @ 10 V | ±20V | 14885 pF @ 25 V | - | 395W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
TK125V65Z,LQMOSFET N-CH 650V 24A 5DFN |
10,000 |
|
Техническая документация |
DTMOSVI | 4-VSFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Ta) | 10V | 125mOhm @ 12A, 10V | 4V @ 1.02mA | 40 nC @ 10 V | ±30V | 2250 pF @ 300 V | - | 190W (Tc) | 150°C | - | - | Surface Mount | 4-DFN-EP (8x8) |
|

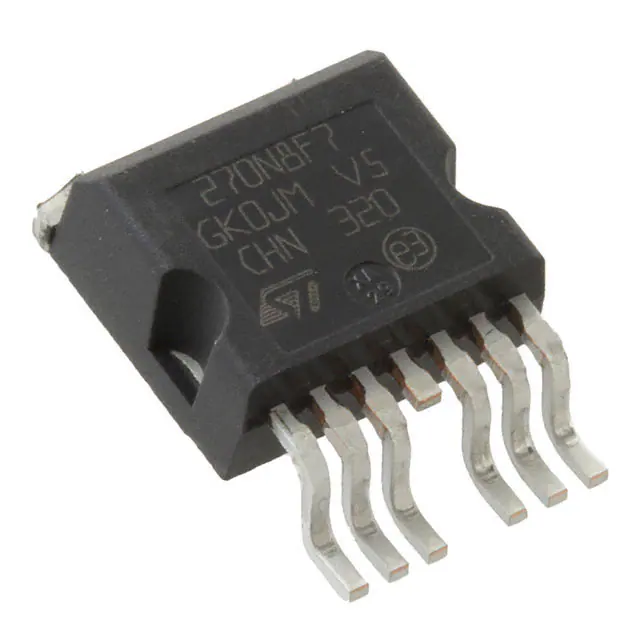

STH270N8F7-6MOSFET N-CH 80V 180A H2PAK |
2,814 |
|
Техническая документация |
DeepGATE™, STripFET™ VII | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 180A (Tc) | 10V | 2.1mOhm @ 90A, 10V | 4V @ 250µA | 193 nC @ 10 V | ±20V | 13600 pF @ 50 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | H2PAK |
|
STB18NM80MOSFET N-CH 800V 17A D2PAK |
9,305 |
|
Техническая документация |
MDmesh™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 17A (Tc) | 10V | 295mOhm @ 8.5A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±25V | 2070 pF @ 50 V | - | 190W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
STH260N6F6-2MOSFET N-CH 60V 180A H2PAK-2 |
978 |
|
Техническая документация |
DeepGATE™, STripFET™ VI | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 180A (Tc) | 10V | 2.4mOhm @ 60A, 10V | 4V @ 250µA | 183 nC @ 10 V | ±20V | 11800 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | H2PAK-2 |
|
STF11NM80MOSFET N-CH 800V 11A TO220FP |
954 |
|
Техническая документация |
MDmesh™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 11A (Tc) | 10V | 400mOhm @ 5.5A, 10V | 5V @ 250µA | 43.6 nC @ 10 V | ±30V | 1630 pF @ 25 V | - | 35W (Tc) | -65°C ~ 150°C (TJ) | - | - | Through Hole | TO-220FP |
|
NVMFS4C01NT1GMOSFET N-CH 30V 49A/319A 5DFN |
2,984 |
|
Техническая документация |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 49A (Ta), 319A (Tc) | 4.5V, 10V | 0.9mOhm @ 30A, 10V | 2.2V @ 250µA | 139 nC @ 10 V | ±20V | 10144 pF @ 15 V | - | 3.84W (Ta), 161W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
IXFA22N65X2MOSFET N-CH 650V 22A TO263 |
548 |
|
Техническая документация |
HiPerFET™, Ultra X2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 22A (Tc) | 10V | 160mOhm @ 11A, 10V | 5.5V @ 1.5mA | 38 nC @ 10 V | ±30V | 2310 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263HV |
|
IRFP048PBFMOSFET N-CH 60V 70A TO247-3 |
392 |
|
Техническая документация |
- | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 70A (Tc) | 10V | 18mOhm @ 44A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|
IPB011N04LGATMA1MOSFET N-CH 40V 180A TO263-7 |
2,111 |
|
Техническая документация |
OptiMOS™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 180A (Tc) | 4.5V, 10V | 1.1mOhm @ 100A, 10V | 2V @ 200µA | 346 nC @ 10 V | ±20V | 29000 pF @ 20 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-7-3 |
|
FCH104N60FMOSFET N-CH 600V 37A TO247-3 |
760 |
|
Техническая документация |
HiPerFET™, Polar™ | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 37A (Tc) | 10V | 104mOhm @ 18.5A, 10V | 5V @ 250µA | 139 nC @ 10 V | ±20V | 5950 pF @ 100 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
|
FCB125N65S3MOSFET N-CH 650V 24A TO263 |
568 |
|
Техническая документация |
SuperFET® III | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 125mOhm @ 12A, 10V | 4.5V @ 590µA | 46 nC @ 10 V | ±30V | 1940 pF @ 400 V | - | 181W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
FCPF125N65S3MOSFET N-CH 650V 24A TO220F |
534 |
|
Техническая документация |
SuperFET® III | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 125mOhm @ 12A, 10V | 4.5V @ 2.4mA | 44 nC @ 10 V | ±30V | 1790 pF @ 400 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F |
|
|
STP315N10F7MOSFET N-CH 100V 180A TO220 |
778 |
|
Техническая документация |
DeepGATE™, STripFET™ VII | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 2.7mOhm @ 60A, 10V | 4.5V @ 250µA | 180 nC @ 10 V | ±20V | 12800 pF @ 25 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | TO-220 |
|
|
FDH3632MOSFET N-CH 100V 12A/80A TO247-3 |
604 |
|
Техническая документация |
PowerTrench® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 12A (Ta), 80A (Tc) | 6V, 10V | 9mOhm @ 80A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 310W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
IXTA1R4N120PMOSFET N-CH 1200V 1.4A TO263 |
296 |
|
Техническая документация |
Polar | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 1.4A (Tc) | 10V | 13Ohm @ 500mA, 10V | 4.5V @ 100µA | 24.8 nC @ 10 V | ±20V | 666 pF @ 25 V | - | 86W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IPB60R125C6ATMA1MOSFET N-CH 600V 30A D2PAK |
1,840 |
|
Техническая документация |
CoolMOS™ C6 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 125mOhm @ 14.5A, 10V | 3.5V @ 960µA | 96 nC @ 10 V | ±20V | 2127 pF @ 100 V | - | 219W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
