FET, MOSFET
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSMN6R0-30YLDXMOSFET N-CH 30V 66A LFPAK56 |
1,845 |
|
Техническая документация |
- | SC-100, SOT-669 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 66A (Tc) | 4.5V, 10V | 6mOhm @ 15A, 10V | 2.2V @ 1mA | 13.7 nC @ 10 V | ±20V | 832 pF @ 15 V | - | 47W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
NVTFS027N10MCLTAGPTNG 100V LL U8FL |
1,700 |
|
Техническая документация |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.4A (Ta), 28A (Tc) | 4.5V, 10V | 26mOhm @ 7A, 10V | 3V @ 38µA | 11.5 nC @ 10 V | ±20V | 800 pF @ 50 V | - | 3.1W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
AOY66923MOSFET N-CH 100V 16.5/58A TO251B |
1,127 |
|
Техническая документация |
AlphaSGT™ | TO-251-3 Stub Leads, IPAK | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 16.5A (Ta), 58A (Tc) | 4.5V, 10V | 11mOhm @ 20A, 10V | 2.6V @ 250µA | 35 nC @ 10 V | ±20V | 1725 pF @ 50 V | - | 6.2W (Ta), 73W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251B |
|
CMUDM8004 TR PBFREEMOSFET P-CH 30V 450MA SOT523 |
231 |
|
Техническая документация |
- | SOT-523 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 450mA (Ta) | 1.8V, 4.5V | 1.1Ohm @ 430mA, 4.5V | 1V @ 250µA | 0.88 nC @ 4.5 V | 8V | 55 pF @ 25 V | - | 250mW (Ta) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-523 |
|
IRFHM3911TRPBFMOSFET N-CH 100V 3.2A/20A 8PQFN |
32,666 |
|
Техническая документация |
HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.2A (Ta), 20A (Tc) | 10V | 115mOhm @ 6.3A, 10V | 4V @ 35µA | 26 nC @ 10 V | ±20V | 760 pF @ 50 V | - | 2.8W (Ta), 29W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (3x3) |
|
IPD50N04S4L08ATMA1MOSFET N-CH 40V 50A TO252-3 |
15,652 |
|
Техническая документация |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 7.3mOhm @ 50A, 10V | 2.2V @ 17µA | 30 nC @ 10 V | +20V, -16V | 2340 pF @ 25 V | - | 46W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TO252-3-313 |
|
|
IPD50N04S408ATMA1MOSFET N-CH 40V 50A TO252-3 |
5,934 |
|
Техническая документация |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 10V | 7.9mOhm @ 50A, 10V | 4V @ 17µA | 22.4 nC @ 10 V | ±20V | 1780 pF @ 6 V | - | 46W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-313 |
|
SQ3461EV-T1_GE3MOSFET P-CHANNEL 12V 8A 6TSOP |
5,875 |
|
Техническая документация |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 8A (Tc) | 1.8V, 4.5V | 25mOhm @ 7.9A, 4.5V | 1V @ 250µA | 28 nC @ 4.5 V | ±8V | 2000 pF @ 6 V | - | 5W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
RUR040N02HZGTLMOSFET N-CH 20V 4A TSMT3 |
5,668 |
|
Техническая документация |
- | SC-96 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4.5V | 35mOhm @ 4A, 4.5V | 1.3V @ 1mA | 8 nC @ 4.5 V | ±10V | 680 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TSMT3 |
|
DMN6066SSS-13MOSFET N-CH 60V 3.7A 8SO |
4,970 |
|
Техническая документация |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 3.7A (Ta) | 4.5V, 10V | 66mOhm @ 4.5A, 10V | 3V @ 250µA | 10.3 nC @ 10 V | ±20V | 502 pF @ 30 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO |
|
RQ6E060ATTCRMOSFET P-CH 30V 6A TSMT6 |
3,499 |
|
Техническая документация |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Ta) | 4.5V, 10V | 26.4mOhm @ 6A, 10V | 2.5V @ 1mA | 25.9 nC @ 10 V | ±20V | 1200 pF @ 15 V | - | 950mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
|
PSMN6R0-30YL,115MOSFET N-CH 30V 79A LFPAK56 |
3,360 |
|
Техническая документация |
- | SC-100, SOT-669 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 30 V | 79A (Tc) | 4.5V, 10V | 6mOhm @ 15A, 10V | 2.15V @ 1mA | 24 nC @ 10 V | ±20V | 1425 pF @ 12 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | LFPAK56, Power-SO8 |
|
|
DMP3007SCG-13MOSFET P-CH 30V 50A 8DFN |
839 |
|
Техническая документация |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 6.8mOhm @ 11.5A, 10V | 3V @ 250µA | 64.2 nC @ 10 V | ±25V | 2826 pF @ 15 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | V-DFN3333-8 (Type B) |
|
SVD5867NLT4GMOSFET N-CH 60V 22A DPAK-3 |
4,220 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 60 V | 22A (Tc) | 4.5V, 10V | 39mOhm @ 11A, 10V | 2.5V @ 250µA | 15 nC @ 10 V | ±20V | 675 pF @ 25 V | - | 3.3W (Ta), 43W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK-3 |
|
|
RSQ035P03HZGTRMOSFET P-CH 30V 3.5A TSMT6 |
2,175 |
|
Техническая документация |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3.5A (Ta) | 4V, 10V | 65mOhm @ 3.5A, 10V | 2.5V @ 1mA | 9.2 nC @ 5 V | ±20V | 780 pF @ 10 V | - | 950mW (Ta) | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TSMT6 (SC-95) |
|
BUK9M15-40HXMOSFET N-CH 40V 30A LFPAK33 |
2,126 |
|
Техническая документация |
- | SOT-1210, 8-LFPAK33 (5-Lead) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 30A (Tc) | 4.5V, 10V | 15mOhm @ 10A, 10V | 2.2V @ 1mA | 16.2 nC @ 10 V | ±16V | 1026 pF @ 25 V | - | 44W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK33 |
|
|
RQ6E080AJTCRMOSFET N-CH 30V 8A TSMT6 |
1,419 |
|
Техническая документация |
- | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 8A (Ta) | 2.5V, 4.5V | 16.5mOhm @ 8A, 4.5V | 1.5V @ 2mA | 16.2 nC @ 4.5 V | ±12V | 1810 pF @ 15 V | - | 950mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT6 (SC-95) |
|
NTMFS5C673NT1GMOSFET N-CH 60V 14A/50A 5DFN |
495 |
|
Техническая документация |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Ta), 50A (Tc) | 10V | 10.7mOhm @ 7A, 10V | 4V @ 35µA | 9.6 nC @ 10 V | ±20V | 680 pF @ 30 V | - | 3.6W (Ta), 46W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|

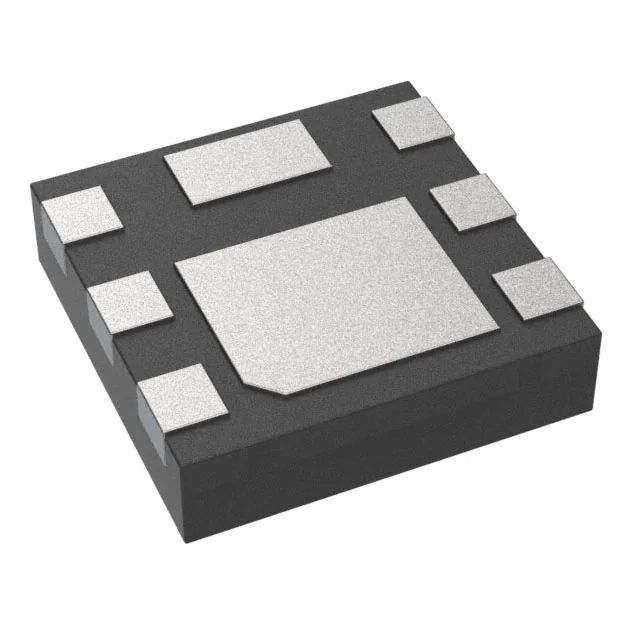

DMTH6016LFDFWQ-7RMOSFET N-CH 60V 9.4A 6UDFN |
6,745 |
|
Техническая документация |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 9.4A (Ta) | 4.5V, 10V | 18mOhm @ 10A, 10V | 3V @ 250µA | 15.3 nC @ 10 V | ±20V | 925 pF @ 30 V | - | 1.06W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | U-DFN2020-6 (SWP) (Type F) |
|
|
IPD80R3K3P7ATMA1MOSFET N-CH 800V 1.9A TO252-3 |
4,993 |
|
Техническая документация |
CoolMOS™ P7 | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.9A (Tc) | 10V | 3.3Ohm @ 590mA, 10V | 3.5V @ 30µA | 5.8 nC @ 10 V | ±20V | 120 pF @ 500 V | - | 18W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
