FET, MOSFET
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип полевого транзистора | Технология | Напряжение сток-исток (Vdss) | Ток - Непрерывный сток (Id) @ 25°C | Напряжение управления (Макс. Rds On, Мин. Rds On) | Rds On (Макс.) @ Id, Vgs | Vgs(th) (Макс.) @ Id | Заряд затвора (Qg) (Макс.) @ Vgs | Vgs (макс.) | Входная емкость (Ciss) (Макс.) @ Vds | Характеристика FET | Рассеиваемая мощность (макс.) | Рабочая температура | Марка | Квалификация | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMN3010LSS-13MOSFET N-CH 30V 16A 8SOP |
2,357 |
|
Техническая документация |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 9mOhm @ 16A, 10V | 2V @ 250µA | 43.7 nC @ 10 V | ±20V | 2096 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
DMNH6042SK3-13MOSFET N-CH 60V 25A TO252 |
2,297 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 25A (Tc) | 4.5V, 10V | 50mOhm @ 6A, 10V | 3V @ 250µA | 8.8 nC @ 10 V | ±20V | 492 pF @ 25 V | - | 2W (Ta) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
|
DMN6017SFV-7MOSFET N-CH 60V 35A POWERDI3333 |
1,882 |
|
Техническая документация |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 35A (Tc) | 4.5V, 10V | 18mOhm @ 6A, 10V | 3V @ 250µA | 55 nC @ 10 V | ±20V | 2711 pF @ 15 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 (Type UX) |
|
DMTH6012LPSWQ-13MOSFET N-CH 60V 11.5/50.5A PWRDI |
1,795 |
|
Техническая документация |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 11.5A (Ta), 50.5A (Tc) | 4.5V, 10V | 14mOhm @ 20A, 10V | 2.3V @ 250µA | 13.6 nC @ 10 V | ±20V | 785 pF @ 30 V | - | 2.8W (Ta), 53.6W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI5060-8 (Type Q) |
|
DMN6069SFGQ-7MOSFET N-CH 60V 18A POWERDI3333 |
5,535 |
|
Техническая документация |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Tc) | 4.5V, 10V | 50mOhm @ 4.5A, 10V | 3V @ 250µA | 25 nC @ 10 V | ±20V | 1480 pF @ 30 V | - | 2.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 |
|
SIAA00DJ-T1-GE3MOSFET N-CH 25V 20.1A/40A PPAK |
4,670 |
|
Техническая документация |
TrenchFET® Gen IV | PowerPAK® SC-70-6 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 20.1A (Ta), 40A (Tc) | 4.5V, 10V | 5.6mOhm @ 15A, 10V | 2.5V @ 250µA | 24 nC @ 10 V | +16V, -12V | 1090 pF @ 12.5 V | - | 3.5W (Ta), 19.2W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SC-70-6 |
|
|
IRF8721TRPBFXTMA1TRENCH <= 40V |
4,000 |
|
Техническая документация |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

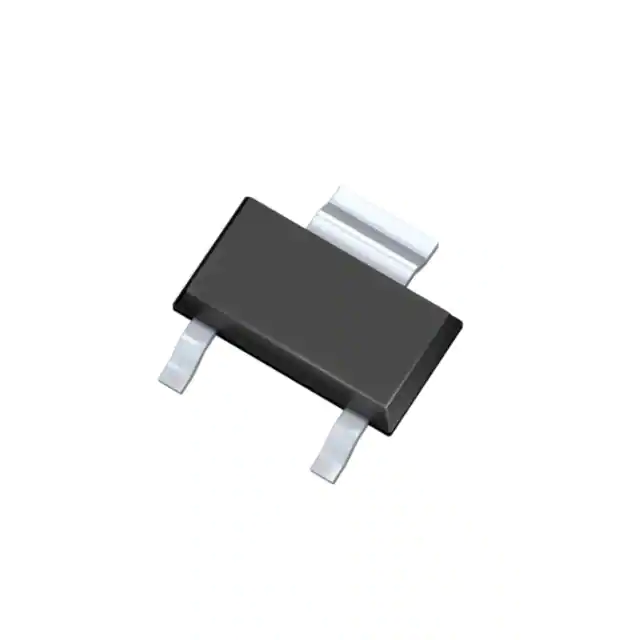

ISP13DP06NMSATMA1MOSFET P-CH 60V SOT223 |
3,000 |
|
Техническая документация |
OptiMOS™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.8A (Ta) | - | - | - | - | ±20V | - | - | - | - | - | - | Surface Mount | PG-SOT223 |
|
RQ1C075UNTRMOSFET N-CH 20V 7.5A TSMT8 |
2,960 |
|
Техническая документация |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.5A (Ta) | 1.5V, 4.5V | 16mOhm @ 7.5A, 4.5V | 1V @ 1mA | 18 nC @ 4.5 V | ±10V | 1400 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | TSMT8 |
|
|
DMN6069SFGQ-13MOSFET N-CH 60V 18A POWERDI3333 |
2,945 |
|
Техническая документация |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Tc) | 4.5V, 10V | 50mOhm @ 4.5A, 10V | 3V @ 250µA | 25 nC @ 10 V | ±20V | 1480 pF @ 30 V | - | 2.4W | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerDI3333-8 |
|
|
DMTH10H032SPSWQ-13MOSFET BVDSS: 61V~100V PowerDI50 |
2,488 |
|
Техническая документация |
- | 8-PowerTDFN | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 25A (Tc) | 10V | 32mOhm @ 5A, 10V | 4V @ 250µA | 8 nC @ 10 V | ±20V | 544 pF @ 50 V | - | 3.2W (Ta), 38W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerDI5060-8 (Type UX) |
Type-UX~~8.jpg)
|
DMTH47M2LPSWQ-13MOSFET BVDSS: 31V~40V POWERDI506 |
2,216 |
|
Техническая документация |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 73A (Tc) | 4.5V, 10V | 7.3mOhm @ 20A, 10V | 2.3V @ 250µA | 14 nC @ 10 V | ±20V | 891 pF @ 20 V | - | 3.8W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | PowerDI5060-8 (Type UX) |
|
|
IAUCN04S7L011ATMA1MOSFET_(20V 40V) |
915 |
|
Техническая документация |
OptiMOS™ 7 | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 222A (Tj) | 4.5V, 10V | 1.13mOhm @ 60A, 10V | 1.8V @ 45µA | 64 nC @ 10 V | ±16V | 4240 pF @ 20 V | - | 105W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PG-TDSON-8-34 |
|
PJD80N04_L2_0000140V N-CHANNEL ENHANCEMENT MODE M |
507 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 14A (Ta), 80A (Tc) | 4.5V, 10V | 5.5mOhm @ 20A, 10V | 2.5V @ 250µA | 25 nC @ 4.5 V | ±20V | 1258 pF @ 25 V | - | 2W (Ta), 66W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
|
|
PJQ4534P-AU_R2_002A130V N-CHANNEL (LL) SGT MOSFET |
5,000 |
|
Техническая документация |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PJQ2566A_R1_0020160V N-CHANNEL ENHANCEMENT MODE M |
3,000 |
|
Техническая документация |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TP89R103NL,LQMOSFET N CH 30V 15A 8SOP |
2,200 |
|
Техническая документация |
U-MOSVIII-H | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Tc) | 4.5V, 10V | 9.1mOhm @ 7.5A, 10V | 2.3V @ 100µA | 9.8 nC @ 10 V | ±20V | 820 pF @ 15 V | - | 1W (Tc) | 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|

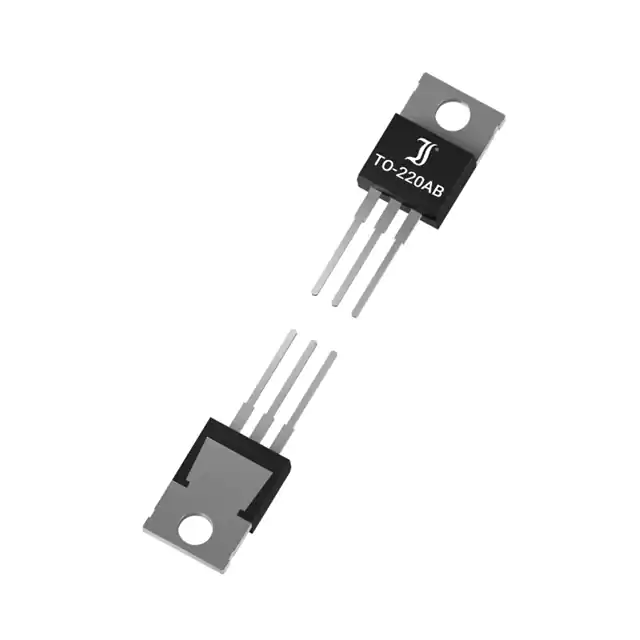

DIT090N06MOSFET TO220AB N 65V 0.0057OHM |
994 |
|
Техническая документация |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 65 V | 90A (Tc) | 10V | 7mOhm @ 30A, 10V | 4V @ 250µA | 94 nC @ 10 V | ±20V | 3400 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|

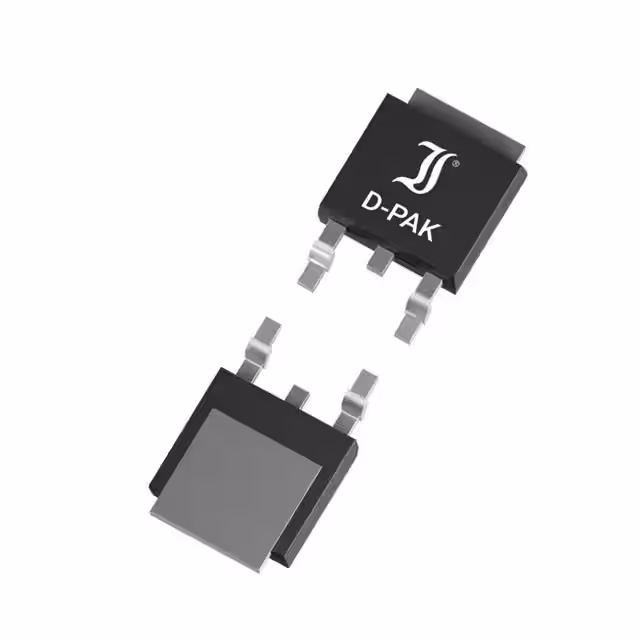

DI050N06D1MOSFET, DPAK, 60V, 50A, 0, 42W |
898 |
|
Техническая документация |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 65 V | 50A (Tc) | 4.5V, 10V | 11mOhm @ 10A, 10V | 2.5V @ 250µA | 14 nC @ 10 V | ±20V | 825 pF @ 30 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
TSM038N03PQ33 RGGMOSFET N-CH 30V 78A 8PDFN |
18,312 |
|
Техническая документация |
- | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 78A (Tc) | 4.5V, 10V | 3.8mOhm @ 19A, 10V | 2.5V @ 250µA | 25 nC @ 4.5 V | ±20V | 2557 pF @ 15 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (3.1x3.1) |
