Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6015M24B1-AGR-EMFAN AXIAL 60X15.3MM 24VDC WIRE |
1,530 |
|
Техническая документация |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 16.0 CFM (0.448m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 28.0dB(A) | - | 4000 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.059 lb (26.76 g) |
|
109R0605H4011FAN AXIAL 60X25MM BALL 5VDC WIRE |
1,076 |
|
Техническая документация |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.7 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
F8025E24B-FHR-CC-L16FAN AXIAL 80X25MM 24VDC WIRE |
3,790 |
|
Техническая документация |
F8025-H | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 46.0 CFM (1.29m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 35.0dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.182 lb (82.55 g) |
|
AFB02512LA-CF00FAN AXIAL 25X10MM 12VDC WIRE |
1,062 |
|
Техническая документация |
AFB | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 0.812 CFM (0.023m³/min) | 0.045 in H2O (11.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.0dB(A) | 360 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
AFB02512MA-CF00FAN |
4,188 |
|
Техническая документация |
AF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.085 in H2O (21.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 0.48 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|

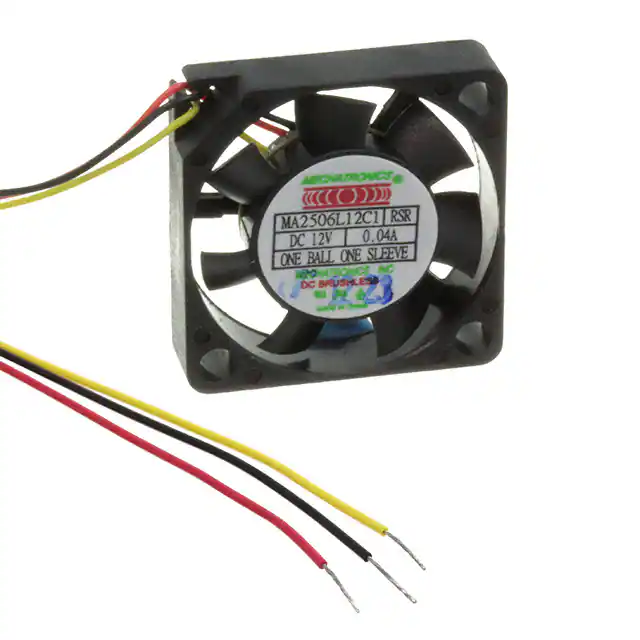

MA2506L12C1-RSRFAN AXIAL 25X6.1MM 12VDC WIRE |
2,725 |
|
Техническая документация |
MA2506 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 6.10mm | 1.2 CFM (0.034m³/min) | 0.050 in H2O (12.4 Pa) | 1 Ball/1 Sleeve | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 11.0dB(A) | - | 6500 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.018 lb (8.16 g) |
|
G6015X24B1-AGR-EMFAN AXIAL 60X15.3MM 24VDC WIRE |
1,252 |
|
Техническая документация |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 24.0 CFM (0.672m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.059 lb (26.76 g) |
|

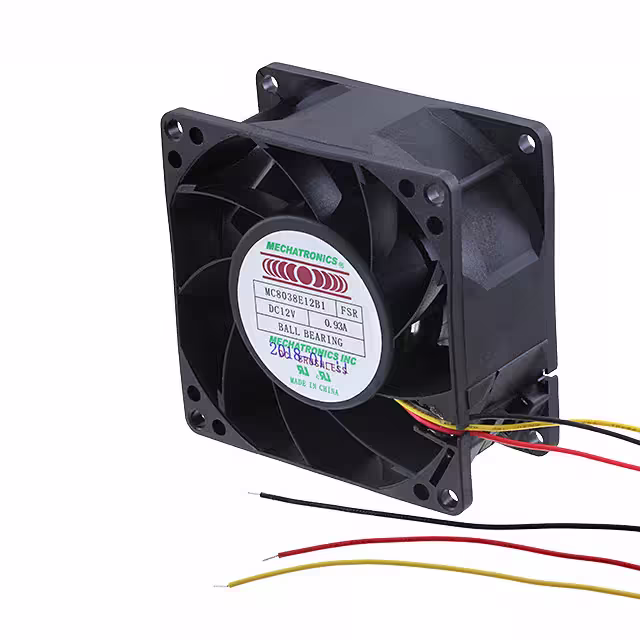

MC8038E12B1-FSRFAN AXIAL 80X38MM 12VDC WIRE |
1,088 |
|
Техническая документация |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 81.5 CFM (2.28m³/min) | 0.840 in H2O (209.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 52.1dB(A) | - | 5800 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|
|
9A0812M401FAN AXIAL 80X25MM 12VDC WIRE |
4,683 |
|
Техническая документация |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 23.0dB(A) | 1.08 W | 2350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
9A0912M401FAN AXIAL 92X25MM 12VDC WIRE |
3,153 |
|
Техническая документация |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 36.7 CFM (1.03m³/min) | 0.091 in H2O (22.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.44 W | 2250 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
G9225X12B2-FSRFAN AXIAL 92X25MM 12VDC WIRE |
1,629 |
|
Техническая документация |
G9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 66.0 CFM (1.85m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.218 lb (98.88 g) |
|
|
109P0624M701FAN AXIAL 60X15MM 24VDC WIRE |
4,716 |
|
Техническая документация |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 10.6 CFM (0.297m³/min) | 0.091 in H2O (22.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 960 mW | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
MC8038H12B-FSR-CCFAN AXIAL 80X38MM 12VDC WIRE |
1,123 |
|
Техническая документация |
MC8038 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 69.9 CFM (1.96m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 48.2dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|
9A0924G4011FAN AXIAL 92X25MM 24VDC WIRE |
2,467 |
|
Техническая документация |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 4.56 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
109P0812H6D01FAN AXIAL 80X20MM 12VDC WIRE |
3,968 |
|
Техническая документация |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB(A) | 2.52 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
G6015E24B-AGR-EMFAN AXIAL 60X15MM 24VDC WIRE |
1,313 |
|
Техническая документация |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 5200 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|

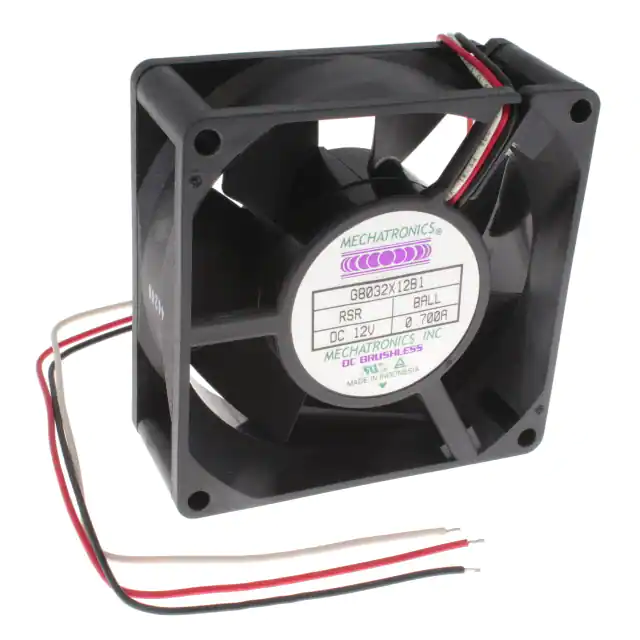

G8032X12B1-RSRFAN AXIAL 80X32MM 12VDC WIRE |
3,272 |
|
Техническая документация |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | - | - | - | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|
F1238E48B-FHRFAN AXIAL 119X38MM 48VDC WIRE |
3,439 |
|
Техническая документация |
F1238-H | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 121.0 CFM (3.39m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.097 lb (44 g) |
|
|

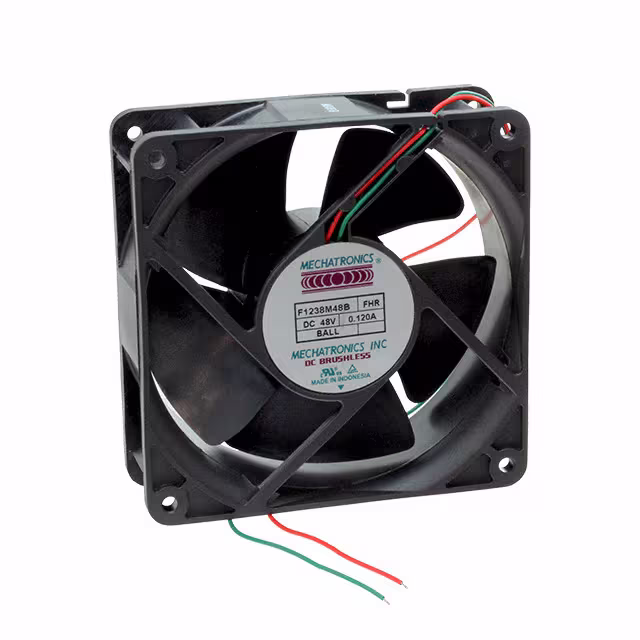

F1238M48B-FHRFAN AXIAL 119X38MM 48VDC WIRE |
4,290 |
|
Техническая документация |
F1238-H | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 103.0 CFM (2.88m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB(A) | - | 2700 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.59 lb (267.62 g) |
|
MR9238M12B-FSRFAN AXIAL 92X38MM 12VDC WIRE |
2,133 |
|
Техническая документация |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 131.0 CFM (3.67m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Tubeaxial | Auto Restart | 55.4dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
