Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9LG1212P1H001FAN AXIAL 119X38MM 12VDC WIRE |
2,048 |
|
Техническая документация |
San Ace 120L | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 176.6 CFM (4.94m³/min) | 0.760 in H2O (189.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 16.8 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|
9WL1412P5S001FAN AXIAL 140X51MM 12VDC WIRE |
4,184 |
|
Техническая документация |
San Ace 140W | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 212.0 CFM (5.94m³/min) | 1.180 in H2O (294.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 22 W | 5000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|

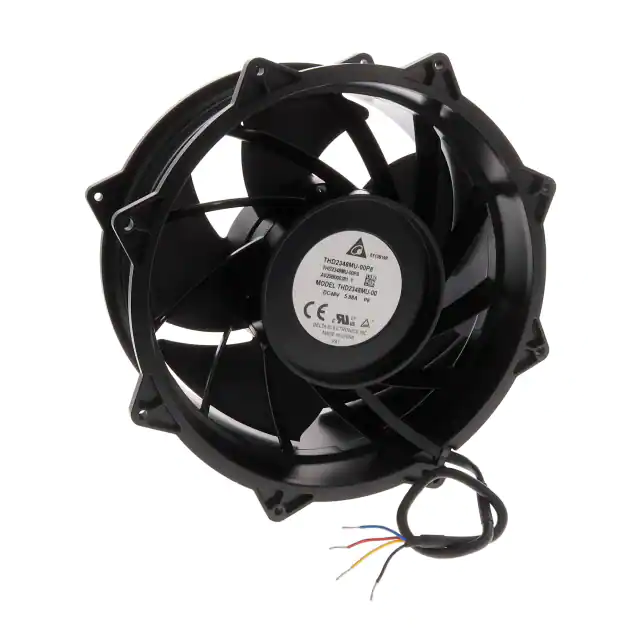

THD2348MU-00P8FAN AXIAL 225X100MM 48VDC WIRE |
1,775 |
|
Техническая документация |
THD | Box | Active | 48VDC | Round - 225mm Dia | 100.00mm | 915.0 CFM (25.62m³/min) | 2.291 in H2O (570.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 180 W | 5000 RPM | 4 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | CE, cURus, TUV | - |
|

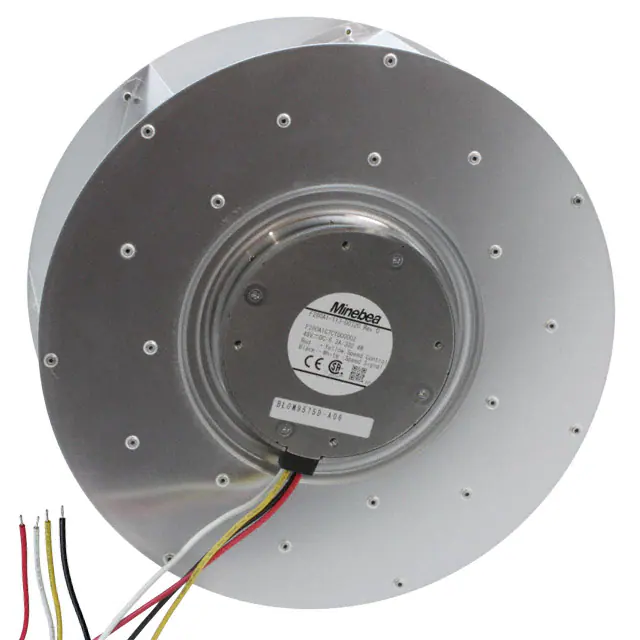

F280A1-113-D0720FAN IMP MTRZD 280X128.7MM 48VDC |
3,325 |
|
Техническая документация |
F280 | Bulk | Active | 48VDC | Round - 280mm Dia | 128.7mm | 1304.0 CFM (36.51m³/min) | 2.346 in H2O (584.4 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 81.0dB | 225.6 W | 2400 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 4.6 lbs (2.1 kg) |
|

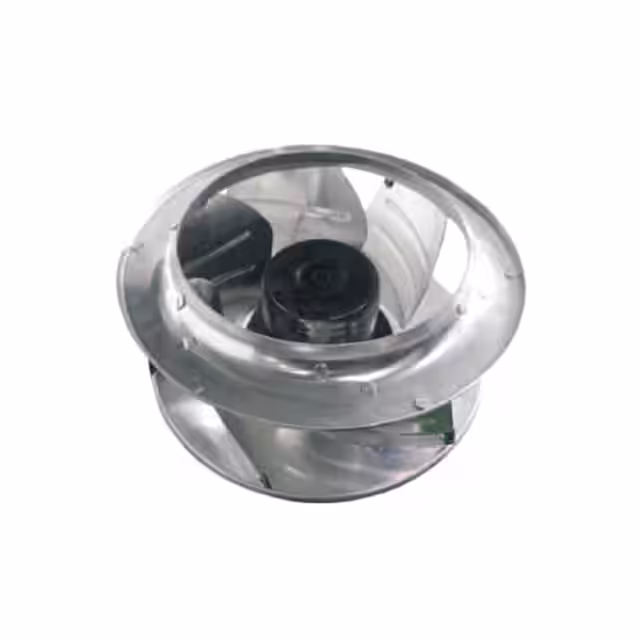

MSI3116H48B1+7-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
1,331 |
|
Техническая документация |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 161.0mm | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 76.0dB(A) | - | 2100 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 6.6 lbs (3 kg) |
|
CFM-5015CF-160-374-20FAN AXIAL 50X15.5MM 12VDC WIRE |
2,300 |
|
Техническая документация |
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 15.6 CFM (0.437m³/min) | 0.200 in H2O (49.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.4dB(A) | 1.8 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
05015SS-12R-WL-D0FAN AXIAL 50X15.35MM 12VDC WIRE |
4,525 |
|
Техническая документация |
05015SS | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.35mm | 14.8 CFM (0.414m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.5dB | 1.68 W | 6550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

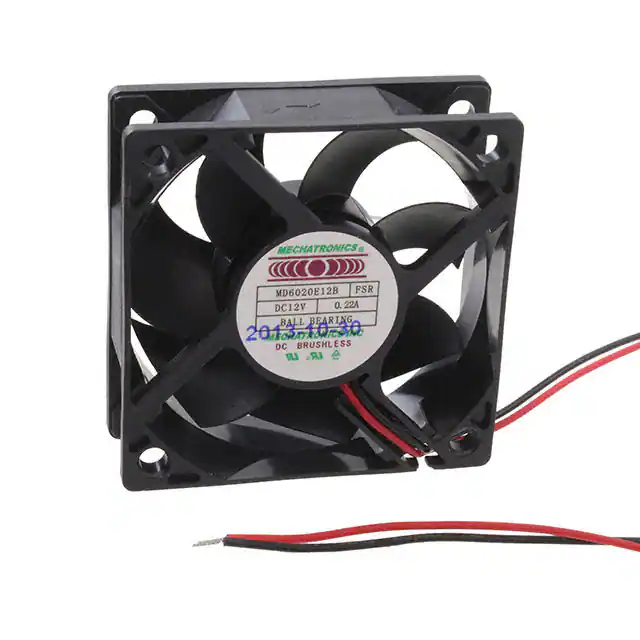

MD6020E12B-FSRFAN AXIAL 60X20.2MM 12VDC WIRE |
1,935 |
|
Техническая документация |
MD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.20mm | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 33.5dB(A) | - | 4400 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.094 lb (42.64 g) |
|

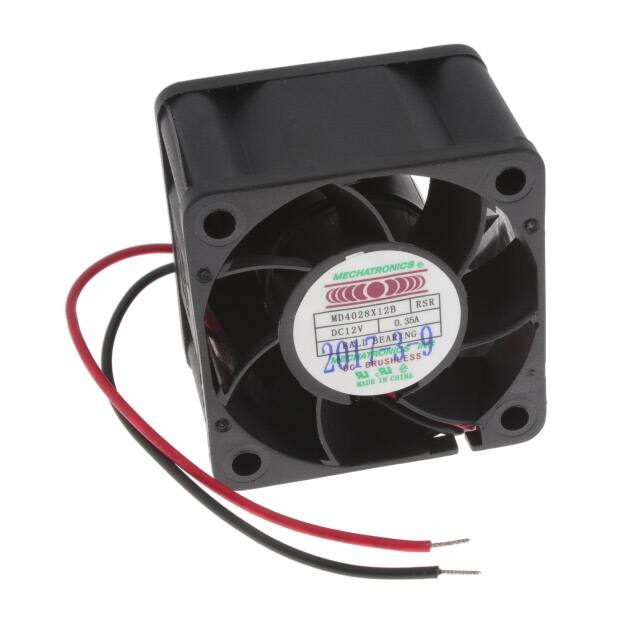

MD4028X12B-RSRFAN AXIAL 40X28MM 12VDC WIRE |
4,683 |
|
Техническая документация |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.709 in H2O (176.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 47.3dB(A) | - | 11500 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
|
ASB0305MA-DR00FAN AXIAL 30X10MM 5VDC WIRE |
2,726 |
|
Техническая документация |
ASB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.7 CFM (0.104m³/min) | 0.167 in H2O (41.6 Pa) | Sleeve | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 550 mW | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
CFM-8025V-229-300-20FAN AXIAL 80X25MM 24VDC WIRE |
3,596 |
|
Техническая документация |
CFM-80V | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.1 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.4 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|

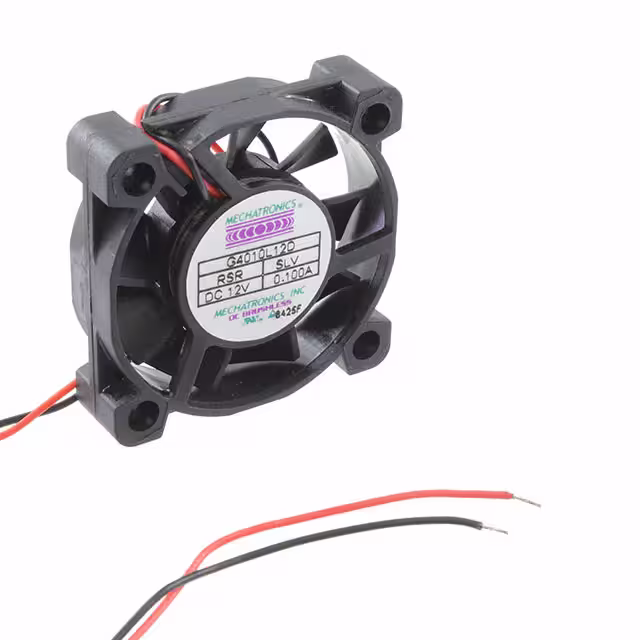

G4010L12D-RSRFAN AXIAL 40X10.3MM 12VDC WIRE |
4,779 |
|
Техническая документация |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 6.0 CFM (0.168m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 22.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
FAD1-06025DHLW12-AFAN AXIAL 60X25MM 24VDC WIRE |
3,054 |
|
Техническая документация |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.080 in H2O (19.9 Pa) | Hydrodynamic | Tubeaxial | - | 18.9dB(A) | 720 mW | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
AUB0512HHB-F00FAN AXIAL 50X15MM 12VDC WIRE |
2,502 |
|
Техническая документация |
AUB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 16.2 CFM (0.454m³/min) | 0.315 in H2O (78.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.56 W | 6400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
F6025X12B1-RHR-WSFAN AXIAL 60X25MM 12VDC WIRE |
3,751 |
|
Техническая документация |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 5800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.139 lb (63.05 g) |
|

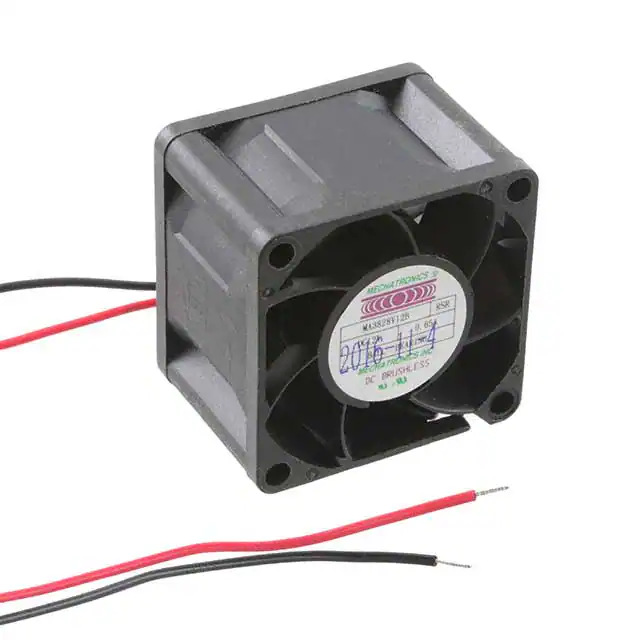

MA3828V12B-RSRFAN AXIAL 38X28MM 12VDC WIRE |
2,881 |
|
Техническая документация |
MA3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 19.5 CFM (0.546m³/min) | 1.145 in H2O (285.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.1dB(A) | - | 15000 RPM | 2 Wire Leads | - | - | cUL, UL | 0.078 lb (35.38 g) |
|
|
BFB0312HA-CR00FAN BLOWER 30X10MM 12VDC WIRE |
4,182 |
|
Техническая документация |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Blower | Locked Rotor Sensor | 29.0dB(A) | 840 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
|
BFB03512HA-CR00FAN BLOWER 35X10MM 12VDC WIRE |
2,095 |
|
Техническая документация |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Blower | Locked Rotor Sensor | 29.0dB(A) | 960 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|

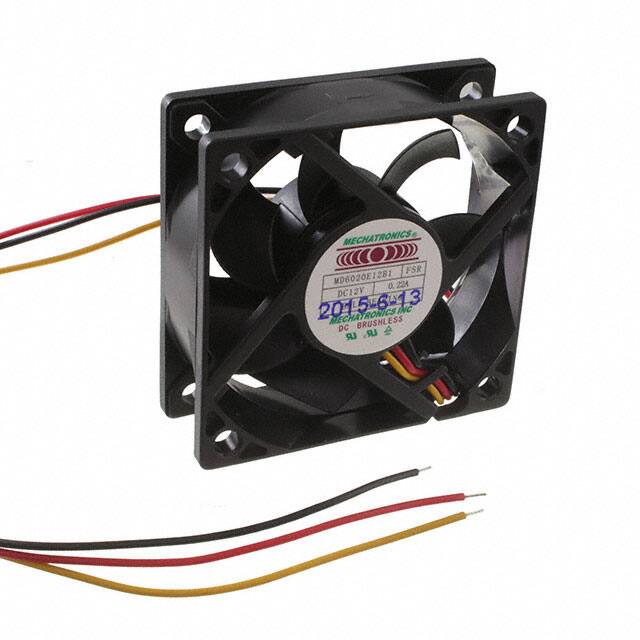

MD6020E12B1-FSRFAN AXIAL 60X20.2MM 12VDC WIRE |
3,182 |
|
Техническая документация |
MD6020 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.20mm | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 33.5dB(A) | - | 4400 RPM | 3 Wire Leads | - | - | cUL, TUV, UL | 0.094 lb (42.64 g) |
|
MS2507H12D-RSRFAN AXIAL 25X7.4MM SLEEVE 12VDC |
3,265 |
|
Техническая документация |
MS2507 | Box | Active | 12VDC | Square - 25mm L x 25mm H | 7.40mm | 1.9 CFM (0.053m³/min) | 0.150 in H2O (37.4 Pa) | Sleeve | Tubeaxial | - | 28.0dB(A) | - | 14000 RPM | - | - | - | CE, cUL, TUV, UL | 0.011 lb (4.99 g) |
