Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

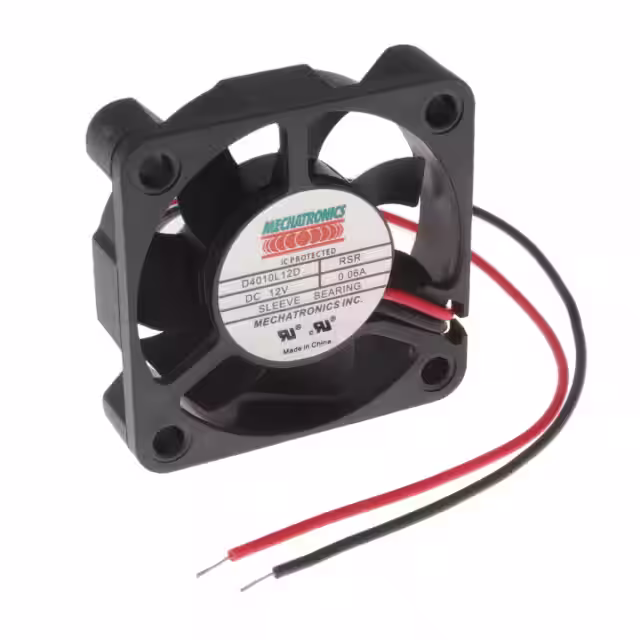

D4010L12D-RSRFAN AXIAL 40X10MM 12VDC WIRE |
3,623 |
|
Техническая документация |
D4010 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | - | - | Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | - | - | - | 2 Wire Leads | - | - | - | - |
|
YW08025012BMFAN AXIAL 80X25MM 12VDC WIRE |
1,747 |
|
Техническая документация |
YW | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.92 W | 2500 RPM | 2 Wire Leads | - | - | CE, cURus, TUV | - |
|
CFM-7020V-146-415FAN AXIAL 70X20MM 12VDC WIRE |
4,744 |
|
Техническая документация |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 43.0 CFM (1.20m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 41.5dB(A) | 3.94 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.177 lb (80.29 g) |
|
|
CFM-7020V-140-375-20FAN AXIAL 70X20MM 12VDC WIRE |
2,364 |
|
Техническая документация |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.5dB(A) | 2.7 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.176 lb (79.83 g) |
|
|
99484603FAN AXIAL 80X25MM 24VDC WIRE |
2,128 |
|
Техническая документация |
- | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 7.8 CFM (0.218m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | - | 29.0dB(A) | 0.6 W | 6500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.078 lb (35.38 g) |
|
FN-PX08-21SILENT 8 PWM - BLACK |
3,056 |
|
Техническая документация |
FN | Retail Package | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 20.7 CFM (0.580m³/min) | 0.041 in H2O (10.3 Pa) | Hydrodynamic | Tubeaxial | - | 18.9dB(A) | 2.16 W | 1600 RPM | 3 Position Rectangular Connector | - | - | - | 0.15 lb (68.04 g) |
|
109P0624H602FAN AXIAL 60X20MM 24VDC WIRE |
4,849 |
|
Техническая документация |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.68 W | 4200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
08025SA-24N-ET-00FAN AXIAL 80X25MM 24VDC WIRE |
2,732 |
|
Техническая документация |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1.92 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
FN-PX09-20FAN AXL 92X25MM 12VDC RECT CONN |
2,539 |
|
Техническая документация |
Silent 9 PWM | Retail Package | Last Time Buy | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.9 CFM (1.07m³/min) | 0.079 in H2O (19.6 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 23.5dB(A) | - | 2000 RPM | 4 Position Rectangular Connector | - | - | CE | - |
|

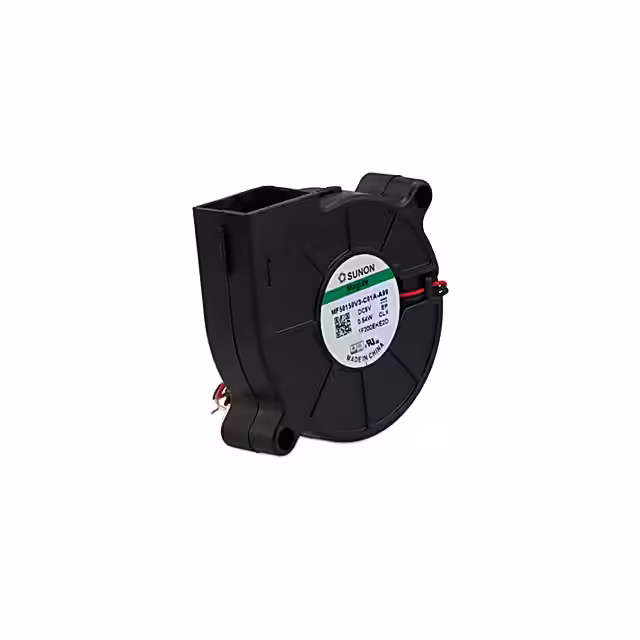

4520HQ/MF50150V3-C01A-A99DC BLOWER 50X15MM VAPO 2.7CFM |
2,112 |
|
Техническая документация |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

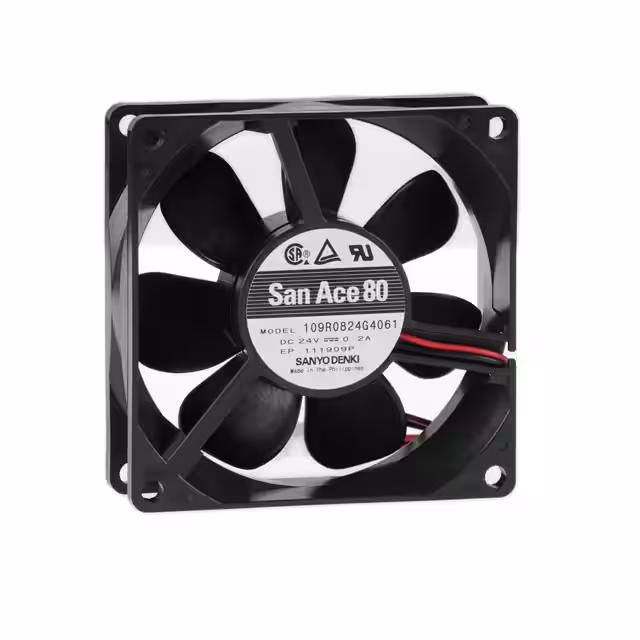

109R0824G4061FAN AXIAL 80X25MM 24VDC |
3,771 |
|
Техническая документация |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 4.8 W | 4500 RPM | 2 Position Rectangular Connector | - | -4 ~ 140°F (-20 ~ 60°C) | - | 0.243 lb (110.22 g) |
|
1604KL-01W-B49-B50FAN AXIAL 40X10MM BALL 5VDC WIRE |
1,416 |
|
Техническая документация |
04010KA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB | 600 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.033 lb (14.97 g) |
|
|
FN-TX09-20FAN AXL 92X25MM 12VDC RECT CONN |
3,523 |
|
Техническая документация |
Silent 9 TC | Retail Package | Last Time Buy | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 38.0 CFM (1.06m³/min) | 0.079 in H2O (19.6 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Temperature Sensor | 23.5dB(A) | - | 2000 RPM | 3 Position Rectangular Connector | - | - | CE | - |
|
|
BW09733012BH-597X33MM 12V BALL 3300RPM W/TACH, |
4,672 |
|
Техническая документация |
BW09733 | Box | Active | 12VDC | Square/Rounded - 97mm L x 97mm H | 33.00mm | 32.4 CFM (0.907m³/min) | 1.106 in H2O (275.5 Pa) | Ball | Blower | - | 48.5dB(A) | 8.88 W | 3300 RPM | 2 Wire Leads | - | - | - | - |
|
|
NYW03010005BH-630X10MM 5V BALL 7800RPM W/AR, 2 |
3,962 |
|
Техническая документация |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
YW04020012LL-N-12FAN AXIAL 40X20MM 12VDC WIRE |
2,979 |
|
Техническая документация |
YW04020-N | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.4 CFM (0.151m³/min) | 0.087 in H2O (21.7 Pa) | Sintec | Tubeaxial | - | 17.0dB(A) | 360 mW | 4000 RPM | 2 Wire Leads | - | - | - | - |
|
E9225L12B-FSRFAN AXIAL 92X25MM 12VDC WIRE |
3,850 |
|
Техническая документация |
E9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 35.0 CFM (0.980m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 27.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.245 lb (111.13 g) |
|
|
XYW08032024BL-680X32MM 24V BALL, 3500RPM W/AR, |
3,947 |
|
Техническая документация |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2410ML-04W-B50-E00FAN AXIAL 60X25MM 12VDC WIRE |
3,605 |
|
Техническая документация |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | - | 35.0dB | 2.4 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
|
|
2410ML-04W-B40-E00FAN AXIAL 60X25MM 12VDC WIRE |
1,978 |
|
Техническая документация |
2410ML | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.208 in H2O (51.8 Pa) | Ball | Tubeaxial | - | 33.5dB | 2.04 W | 4550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.144 lb (65.32 g) |
