Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E5724H5D01FAN AXIAL 172X51MM 24VDC WIRE |
1,520 |
|
Техническая документация |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 52.0dB(A) | 13.92 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E1748H501FAN AXIAL 172X51MM 48VDC WIRE |
2,329 |
|
Техническая документация |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 47.0dB(A) | 13.44 W | 3050 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (780.0 g) |
|
ODB22071-24HB10AFAN IMP MTRZD 221.5X71MM 24VDC |
3,284 |
|
Техническая документация |
- | Bulk | Active | 24VDC | Round - 221.5mm Dia | 71.00mm | 618.0 CFM (17.30m³/min) | 2.410 in H2O (600.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 68.0dB | 106 W | 3150 RPM | 4 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | CE, cURus, TUV, UR | 3.1 lbs (1.4 kg) |
|
|
9EC2048H001FAN AXIAL 200X70MM 48VDC WIRE |
4,721 |
|
Техническая документация |
San Ace 200 | Box | Active | 48VDC | Round - 200mm Dia | 70.00mm | 388.0 CFM (10.86m³/min) | 1.446 in H2O (360.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 60.0dB(A) | 57.6 W | 3600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 3.9 lbs (1.8 kg) |
|
|
F225H1-092-D0720225X92MM 48VDC TACH/PWM |
1,421 |
|
Техническая документация |
F225H | Bulk | Active | 48VDC | Round - 225mm Dia | 99.00mm | 689.0 CFM (19.50m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB | 96 W | 2650 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | CE, cURus | - |
|
|
F225G1-092-D0720225X92MM 48VDC IP68 TACH/PWM |
1,841 |
|
Техническая документация |
F225G | Bulk | Active | 48VDC | Round - 225mm Dia | 99.00mm | 689.0 CFM (19.50m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB | 96 W | 2650 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 158°F (-30 ~ 70°C) | CE, cURus | - |
|
|
8315100209AXITWIN FAN,AXIAL,48VDC,321CFM,1 |
4,724 |
|
Техническая документация |
- | Box | Active | 48VDC | Square - 100mm L x 100mm H | 90.00mm | 319.0 CFM (8.93m³/min) | 6.102 in H2O (1520.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 84.0dB(A) | 135 W | 11000 RPM | 4 Position Rectangular Connector | IP20 | -4 ~ 158°F (-20 ~ 70°C) | CCC, CE, CSA, EAC, UL | - |
|

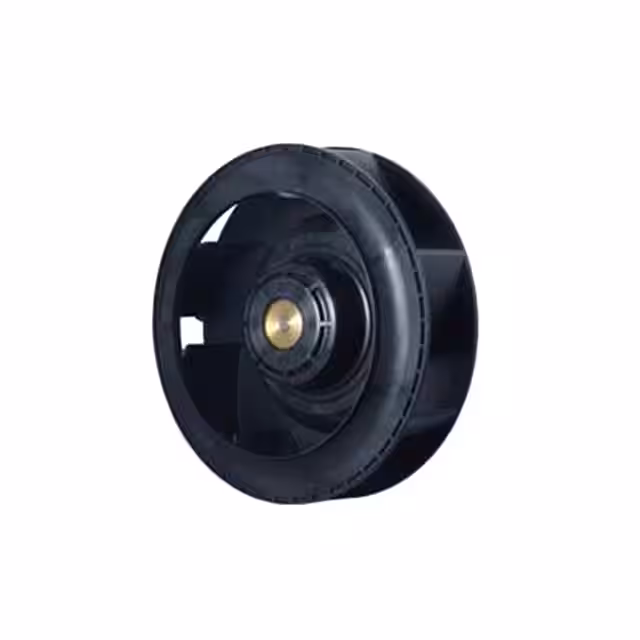

9W2TP48P0S001FAN IMP MTRZD 221X71MM 48VDC |
2,303 |
|
Техническая документация |
San Ace 221W | Box | Active | 48VDC | Round - 221mm Dia | 71.00mm | 693.0 CFM (19.40m³/min) | 2.650 in H2O (660.0 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 73.5dB(A) | 110.4 W | 3400 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | cURus, TUV | 2.6 lbs (1.2 kg) |
|
|
5158HQ/MF40070V1-D05U-S99DC BLOWER 40X7MM TACH/PWM |
2,649 |
|
Техническая документация |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

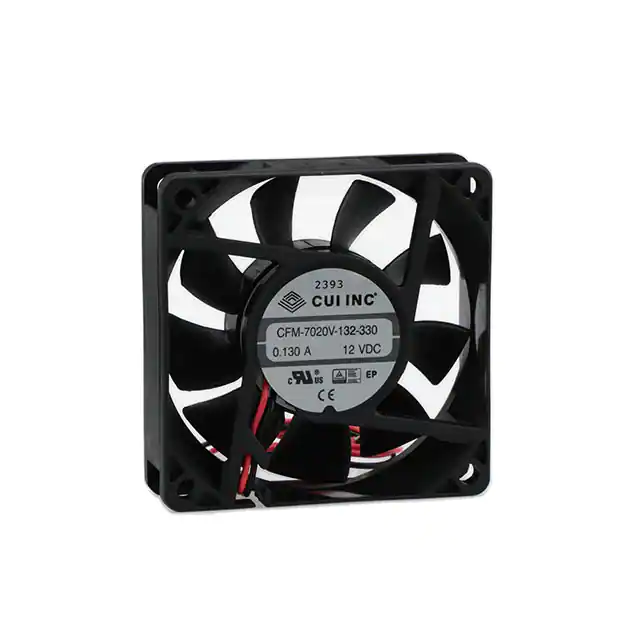

CFM-7020V-132-330FAN AXIAL 70X20MM 12VDC WIRE |
4,201 |
|
Техническая документация |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 29.0 CFM (0.812m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 1.8 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
CFM-8020V-146-480FAN AXIAL 80X20MM 12VDC WIRE |
4,986 |
|
Техническая документация |
CFM-80V | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.6 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 48.0dB(A) | 3.94 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
YW05015012BL50X15MM 12V BALL, 3900RPM, 2 WIR |
1,524 |
|
Техническая документация |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | - | 24.5dB(A) | 1.02 W | 3800 RPM | 2 Wire Leads | - | - | CE, cURus, TUV | - |
|
CFM-7020V-229-300-20FAN AXIAL 70X20MM 24VDC WIRE |
1,347 |
|
Техническая документация |
CFM-70V | Tray | Obsolete | 24VDC | Square - 70mm L x 70mm H | 20.00mm | 27.0 CFM (0.756m³/min) | 0.120 in H2O (29.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.54 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
|
CFM-8015V-230-347-20FAN AXIAL 80X15MM 24VDC WIRE |
2,947 |
|
Техническая документация |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.1 CFM (1.04m³/min) | 0.140 in H2O (34.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.7dB(A) | 2.55 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
|
CFM-8015V-227-320-20FAN AXIAL 80X15MM 24VDC WIRE |
2,439 |
|
Техническая документация |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.110 in H2O (27.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 1.8 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.15 lb (68.04 g) |
|
CFM-8015-13-10FAN AXIAL 80X15.4MM 12VDC WIRE |
1,019 |
|
Техническая документация |
CFM-80 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.40mm | 44.0 CFM (1.23m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | Auto Restart | 39.8dB(A) | 2.88 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.132 lb (59.87 g) |
|
|
FN-SX07-22FAN AXL 70X15MM 12VDC RECT CONN |
1,952 |
|
Техническая документация |
Silent 7 | Retail Package | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 19.8 CFM (0.554m³/min) | 0.102 in H2O (25.5 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 21.8dB(A) | - | 2200 RPM | 3 Position Rectangular Connector | - | - | CE | - |
|
|
FN-SX05-40FAN AXL 50X15MM 12VDC RECT CONN |
4,379 |
|
Техническая документация |
Silent 5 | Retail Package | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.9 CFM (0.361m³/min) | 0.110 in H2O (27.4 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 23.0dB(A) | - | 4000 RPM | 3 Position Rectangular Connector | - | - | CE | 0.012 lb (5.44 g) |
|
|
FN-SX06-32FAN AXL 60X15.5MM 12VDC RECT |
2,647 |
|
Техническая документация |
Silent 6 | Retail Package | Active | 12VDC | Square - 60mm L x 60mm H | 15.50mm | 16.0 CFM (0.448m³/min) | 0.102 in H2O (25.5 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 24.0dB(A) | - | 3200 RPM | 3 Position Rectangular Connector | - | - | CE | - |
|

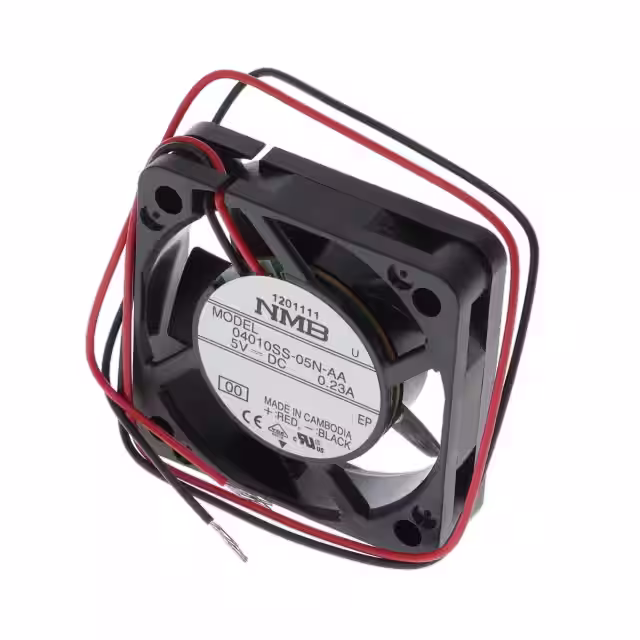

04010SS-05N-AA-00FAN AXIAL 40X10MM 5VDC WIRE |
1,541 |
|
Техническая документация |
04010SS | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 29.0dB | 850 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
