Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD4028-12HBXCFAN AXIAL 40X28MM 12VDC WIRE |
545 |
|
Техническая документация |
OD4028 XC | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 26.5 CFM (0.742m³/min) | 1.600 in H2O (398.6 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB | - | 16000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
AFB0624H-AFAN AXIAL 60X25.4MM 24VDC WIRE |
1,383 |
|
Техническая документация |
AFB | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 23.4 CFM (0.655m³/min) | 0.211 in H2O (52.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.16 W | 4250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
AFB0624SH-AFAN AXIAL 60X25.4MM 24VDC WIRE |
678 |
|
Техническая документация |
AFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 34.2 CFM (0.958m³/min) | 0.422 in H2O (105.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.5dB(A) | 4.08 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
AFB0612H-AFAN AXIAL 60X25.4MM 12VDC WIRE |
471 |
|
Техническая документация |
AFB | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 23.4 CFM (0.655m³/min) | 0.211 in H2O (52.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 1.68 W | 4250 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
06025VE-24Q-CT-00FAN AXIAL 60X25MM 24VDC WIRE |
123 |
|
Техническая документация |
06025VE | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 54.0dB(A) | 6.48 W | 9200 RPM | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cULus, VDE | - |
|
G9225X24B6-FSR-L20FAN AXIAL 92X25MM 24VDC WIRE |
107 |
|
Техническая документация |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 66.0 CFM (1.85m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | PWM Control, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.218 lb (98.88 g) |
|
AFB0412VB-AR00FAN AXIAL 40X15MM 12VDC WIRE |
277 |
|
Техническая документация |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 15.2 CFM (0.426m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.0dB(A) | 2.52 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.057 lb (25.85 g) |
|
AFB0812LD-AFAN AXIAL 80X20MM 12VDC WIRE |
311 |
|
Техническая документация |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 33.5 CFM (0.938m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.5dB(A) | 1.44 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.161 lb (73.03 g) |
|
OD6025-12HBIP55FAN AXIAL 60X25MM 12VDC WIRE |
109 |
|
Техническая документация |
OD6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 1.8 W | 3975 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | cURus, TUV | 0.141 lb (63.96 g) |
|
AFB0712HB-F00FAN AXIAL 70X15MM 12VDC WIRE |
381 |
|
Техническая документация |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 33.2 CFM (0.930m³/min) | 0.162 in H2O (40.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.5dB(A) | 2.16 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
AFB0712SH-AF00FAN AXIAL 70X25.4MM 12VDC WIRE |
634 |
|
Техническая документация |
AFB | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.40mm | 61.1 CFM (1.71m³/min) | 0.625 in H2O (155.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.5dB(A) | 7.56 W | 6300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.238 lb (107.95 g) |
|
G6015X24B1-RGR-CC-GBFAN AXIAL 60X15.3MM 24VDC WIRE |
188 |
|
Техническая документация |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 24.0 CFM (0.672m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Conformal Coating, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.059 lb (26.76 g) |
|
|
G1238E12B1+6-FSR-WSFAN AXIAL 119X38MM 12VDC WIRE |
133 |
|
Техническая документация |
G1238 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Alarm Sensor, PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 5 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
G6015X24B2-AGR-EMFAN AXIAL 60X15.3MM 24VDC WIRE |
131 |
|
Техническая документация |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.30mm | 24.0 CFM (0.672m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5800 RPM | 3 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.059 lb (26.76 g) |
|
|
11925SA-12M-EAD-0FAN AXIAL 119X25MM 12VDC WIRE |
422 |
|
Техническая документация |
11925SA | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 79.4 CFM (2.22m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.5dB | 1.92 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
109R0648H4021FAN AXIAL 60X25MM 48VDC WIRE |
125 |
|
Техническая документация |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.92 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
CBM-979433B-135-540FAN BLOWER 97.68X32.7MM 12VDC |
220 |
|
Техническая документация |
CBM-97B-2 | Box | Active | 12VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 32.70mm | 23.9 CFM (0.669m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Blower | Auto Restart | 54.1dB(A) | 10.32 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

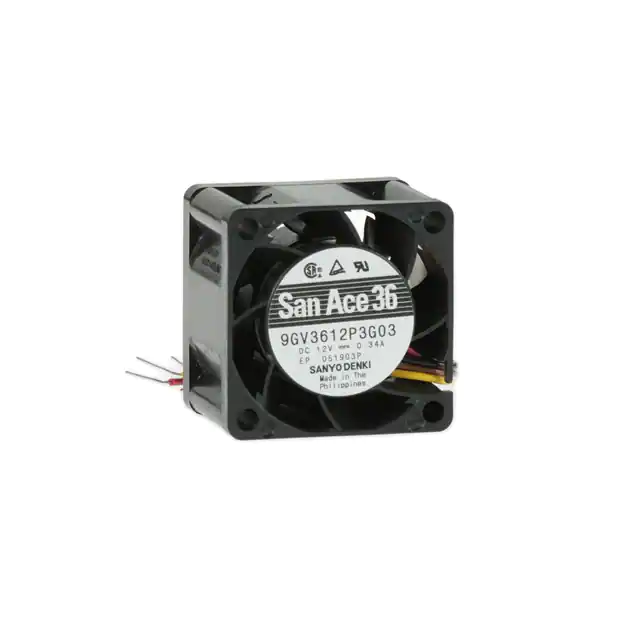

9GV3612P3G03FAN AXIAL 36X28MM 12VDC WIRE |
4,594 |
|
Техническая документация |
San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 14.1 CFM (0.395m³/min) | 1.104 in H2O (275.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 4.08 W | 14000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.102 lb (46.27 g) |
|
AFB0612H-AF00FAN AXIAL 60X25.4MM 12VDC WIRE |
1,100 |
|
Техническая документация |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 23.4 CFM (0.655m³/min) | 0.211 in H2O (52.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 4250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
OD9225-24HBXEFAN AXIAL 92X25.5MM 24VDC WIRE |
628 |
|
Техническая документация |
OD9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 94.0 CFM (2.63m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart | 53.0dB(A) | 8.4 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
