Бесщеточные вентиляторы постоянного тока (BLDC)
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Напряжение - Номинальное | Размер/измерение | Ширина | Поток воздуха | Статическое давление | Тип подшипника | Тип вентилятора | Особенности | Шум | Мощность (Вт) | Об/мин | Оконечная нагрузка | Защита от проникновения | Рабочая температура | Сертифицирующее агентство | Вес |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

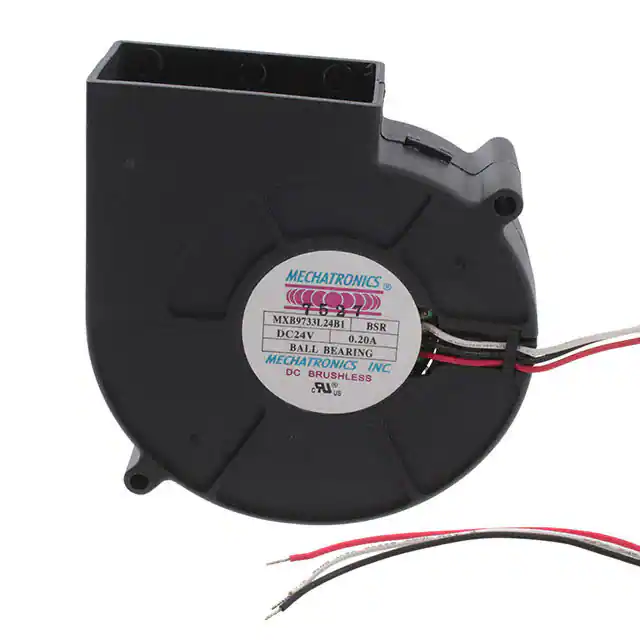

MXB9733L24B1-BSRFAN BLOWER 97X33MM 24VDC WIRE |
210 |
|
Техническая документация |
MXB9733 | Bulk | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.4mm H | 33.00mm | 18.8 CFM (0.526m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Blower | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 41.0dB(A) | - | 2200 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.397 lb (180.08 g) |
|
109R0812S402FAN AXIAL 80X25MM 12VDC WIRE |
136 |
|
Техническая документация |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.16 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0812S4021FAN AXIAL 80X25MM 12VDC WIRE |
120 |
|
Техническая документация |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.16 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
03828DA-12R-AU-00FAN AXIAL 38X28MM 12VDC WIRE |
163 |
|
Техническая документация |
03828DA | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 21.5 CFM (0.602m³/min) | 2.610 in H2O (650.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.0dB | 7.56 W | 22000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
(4028BG).jpg)
|
CFM-4028BG-1160-520-22FAN AXIAL 40X28MM 12VDC WIRE |
155 |
|
Техническая документация |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.5 CFM (0.546m³/min) | 1.560 in H2O (388.6 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 6.48 W | 16000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
FAD1-12032DBMW12FAN AXIAL 120X32.3MM 24VDC WIRE |
2,494 |
|
Техническая документация |
FAD1-12032 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 32.30mm | 99.1 CFM (2.77m³/min) | 0.167 in H2O (41.6 Pa) | Ball | Tubeaxial | - | 41.1dB(A) | 3.84 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.469 lb (212.73 g) |
|

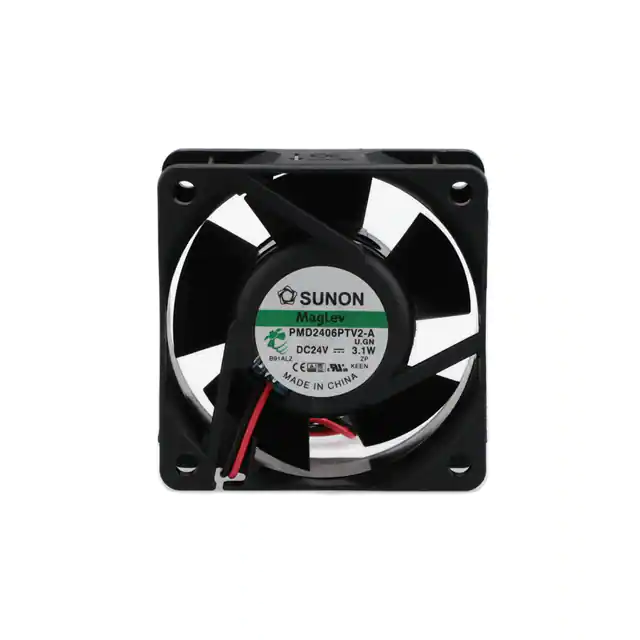

PMD2406PTV2-A.U.GNFAN AXIAL 60X25MM 24VDC WIRE |
188 |
|
Техническая документация |
MagLev® PMD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.420 in H2O (104.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 41.0dB(A) | 3.1 W | 6100 RPM | 2 Wire Leads | - | - | - | 0.167 lb (75.75 g) |
|
9G0924G1011FAN AXIAL 92X38MM 24VDC WIRE |
966 |
|
Техническая документация |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 13.2 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.397 lb (180.08 g) |
|
G8020H12B1+6-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
200 |
|
Техническая документация |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 43.0 CFM (1.20m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 33.0dB(A) | - | 3500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
AFB0412VB-AF00FAN AXIAL 40X15MM 12VDC WIRE |
839 |
|
Техническая документация |
AFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 15.2 CFM (0.426m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 2.52 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.057 lb (25.85 g) |
|
MR1225H24B-FSRFAN AXIAL 120X25MM 24VDC WIRE |
200 |
|
Техническая документация |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 136.0 CFM (3.81m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart | 53.8dB(A) | - | 4500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
OD8032-24MBFAN AXIAL 80.5X32MM 24VDC WIRE |
200 |
|
Техническая документация |
OD8032 | Bulk | Active | 24VDC | Square - 80.5mm L x 80.5mm H | 32.00mm | 44.0 CFM (1.23m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 36.0dB | - | 3400 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
MC8038L24B-FSRFAN AXIAL 80X38MM 24VDC WIRE |
222 |
|
Техническая документация |
MC8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 45.5 CFM (1.27m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 39.0dB(A) | - | 3400 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.397 lb (180.08 g) |
|

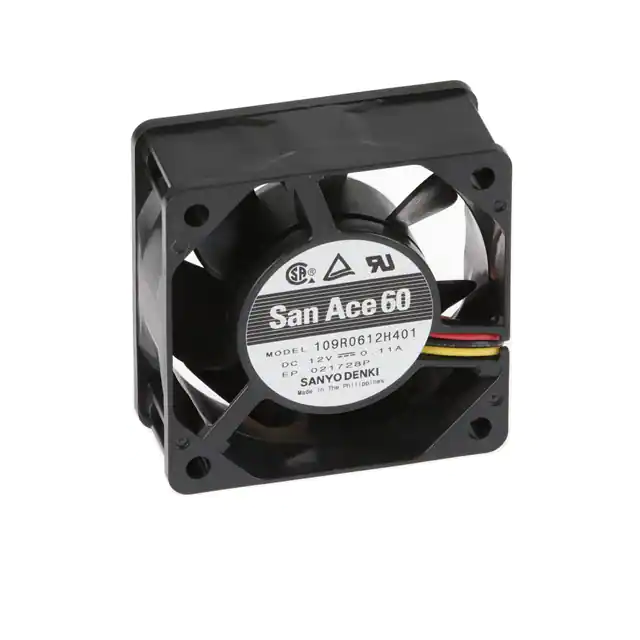

109R0612H401FAN AXIAL 60X25MM 12VDC WIRE |
1,537 |
|
Техническая документация |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.32 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109R0624H401FAN AXIAL 60X25MM 24VDC WIRE |
562 |
|
Техническая документация |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 1.44 W | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0624D401FAN AXIAL 60X25MM 24VDC WIRE |
147 |
|
Техническая документация |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.88 W | 5150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0612D4011FAN AXIAL 60X25MM 12VDC WIRE |
132 |
|
Техническая документация |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.52 W | 5150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
BFB04512VHD-R00FAN BLOWER 45X20MM 12VDC WIRE |
220 |
|
Техническая документация |
BFB | Box | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 20.00mm | 6.0 CFM (0.168m³/min) | 0.557 in H2O (138.7 Pa) | Ball | Blower | Locked Rotor Sensor | 30.5dB(A) | 1.92 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.038 lb (17.24 g) |
|
|
MR1225M24B-FSRFAN AXIAL 120X25MM 24VDC WIRE |
135 |
|
Техническая документация |
MR1225 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 122.1 CFM (3.42m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.5dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.275 lb (124.74 g) |
|
CFM-A238B-238-529-20FAN AXIAL 120X37.5MM 24VDC WIRE |
508 |
|
Техническая документация |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 146.9 CFM (4.11m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.0dB(A) | 13.92 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
