Автомобильные реле
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

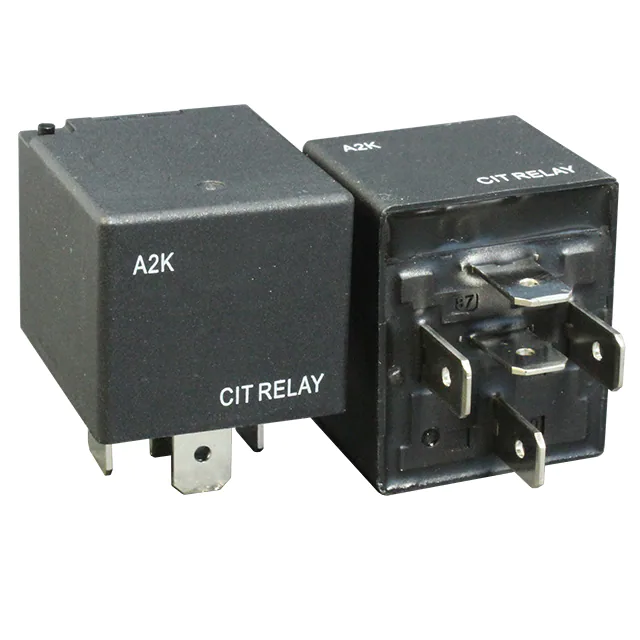

A2KM1ASP12VDC1.6RRELAY AUTOMOTIVE SPST 120A 12V |
3,094 |
|
Техническая документация |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
CM1AF-D-24VCM RELAY 1 FORM A 24V |
2,790 |
|
Техническая документация |
CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 15 ms | Diode, Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|
CB1AHF-P-24VCB RELAY 1 FORM A 24V |
3,667 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 58 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A2KM1ASP24VDC1.6RRELAY AUTOMOTIVE SPST 120A 24V |
4,968 |
|
Техническая документация |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A2KM1ASP24VDC1.6DRELAY AUTOMOTIVE SPST 120A 24V |
4,837 |
|
Техническая документация |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
CB1AF-R-M-12VRELAY AUTOMOTIVE SPST 40A 12V |
4,283 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CA1BS-12V-A-5RELAY AUTOMOTIVE SPST 20A 12V |
1,903 |
|
Техническая документация |
CA | Bulk | Active | Non Latching | 120 mA | 12VDC | SPST-NC (1 Form B) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C |
|
|
G8PM-K1A71R DC12LATCHING AUTOMOTIVE PCB RELAY |
3,668 |
|
Техническая документация |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CB1A-R-SM-12VRELAY AUTOMOTIVE SPST 40A 12V |
3,632 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1F-SM-12VRELAY AUTOMOTIVE SPDT 40A 12V |
2,155 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CB1F-R-P-12VRELAY AUTOMOTIVE SPDT 40A 12V |
2,882 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CM1A-24VCM RELAY 1 FORM A 24V |
2,944 |
|
Техническая документация |
CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
A2K1CCQ12VDC1.6RELAY AUTOMOTIVE SPST 120A 12V |
1,075 |
|
Техническая документация |
A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
CB1AF-R-M-24VRELAY AUTOMOTIVE SPST 20A 24V |
3,541 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CA1B-12V-C-5RELAY AUTOMOTIVE SPST 20A 12V |
1,483 |
|
Техническая документация |
CA | Bulk | Active | Non Latching | 150 mA | 12VDC | SPST-NC (1 Form B) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C |
|
|
CA1AR-12V-C-5RELAY AUTOMOTIVE SPST 30A 12V |
3,790 |
|
Техническая документация |
CA | Bulk | Active | Non Latching | 160.9 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C |
|
|
CA1BS-12V-C-5RELAY AUTOMOTIVE SPST 20A 12V |
1,502 |
|
Техническая документация |
CA | Bulk | Active | Non Latching | 120 mA | 12VDC | SPST-NC (1 Form B) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -30°C ~ 80°C |
|
|
CB1-SM-12VRELAY AUTOMOTIVE SPDT 40A 12V |
3,142 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1F-R-SM-12VRELAY AUTOMOTIVE SPDT 40A 12V |
2,202 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AH-R-24VRELAY AUTOMOTIVE 20A |
4,584 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
