Автомобильные реле
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

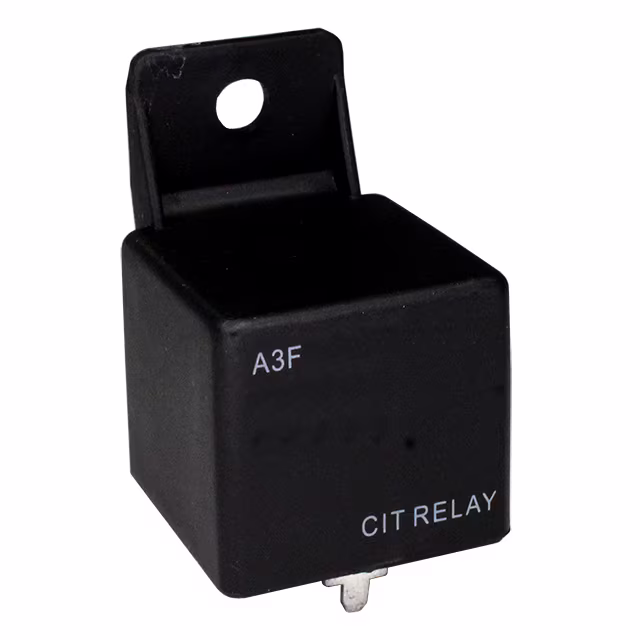

A3F1CSP24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
4,514 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
AZ983-1B-12DRELAY AUTOMOTIVE SPST 60A 12V |
4,956 |
|
Техническая документация |
AZ983 | Box | Active | Non Latching | 150 mA | 12VDC | SPST-NC (1 Form B) | 60 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
CM1AF-D-P-12VRELAY AUTOMOTIVE SPST 35A 12V |
2,239 |
|
Техническая документация |
CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 15 ms | Diode, Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CM1AF-24VCM RELAY 1 FORM A 24V |
3,326 |
|
Техническая документация |
CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|
CM1AF-P-24VCM RELAY 1 FORM A 24V |
4,915 |
|
Техническая документация |
CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A3F1CSP24VDC2RRELAY AUTOMOTIVE SPDT 80A 24V |
1,598 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A3F1CSP24VDC2DRELAY AUTOMOTIVE SPDT 80A 24V |
4,243 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
CB1AF-24VRELAY AUTOMOTIVE SPST 20A 24V |
3,424 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AVF-24VCB RELAY 1 FORM A 35A 24V |
3,389 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AV-D-12VCB RELAY 1 FORM A 35A 12V |
1,675 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1AV-R-12VCB RELAY 1 FORM A 35A 12V |
1,208 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1V-12VCB RELAY 1 FORM C 35A 12V |
4,015 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
ACQW131RELAY AUTOMOTIVE SPDT 20A 12V |
3,451 |
|
Техническая документация |
CQ | Bulk | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
02040605ZRELAY AUTOMOTIVE SPST 25A 12V |
4,212 |
|
Техническая документация |
MICRO | Bulk | Obsolete | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 25 A | 12VDC - Nom | - | - | - | - | Resistor | Socketable | Plug In | - |
|
|
CM1AF-12VRELAY AUTOMOTIVE SPST 35A 12V |
1,708 |
|
Техническая документация |
CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|
|
CM1A-P-24VCM RELAY |
2,905 |
|
Техническая документация |
CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
CB1AV-24VCB RELAY 1 FORM A 35A 24V |
4,402 |
|
Техническая документация |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CM1AF-R-24VCM RELAY 1 FORM A 24V |
4,293 |
|
Техническая документация |
CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|
|
AZ988-1CT-12DEC3RELAY AUTOMOTIVE SPDT 30A 12V |
3,262 |
|
Техническая документация |
AZ988 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 27VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 125°C |
|
ACNM5112SAZRELAY AUTO SPDT 30A 12V |
2,430 |
|
Техническая документация |
ACNM | Tape & Reel (TR) | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Surface Mount | Gull Wing | -40°C ~ 110°C |
