Автомобильные реле
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A61CC24VDC1.3RRELAY AUTOMOTVIE SPDT 30A 24V |
3,796 |
|
Техническая документация |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ988-1CT-24DEC1RELAY AUTOMOTIVE SPDT 30A 24V |
4,107 |
|
Техническая документация |
AZ988 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 30 A | 27VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | MICRO-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ9841-1C-12DERELAY AUTOMOTIVE SPDT 40A 12V |
4,149 |
|
Техническая документация |
AZ9841 | Box | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | 280-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
AZ988-1CT-12DEC1RRELAY AUTOMOTIVE SPDT 30A 12V |
3,422 |
|
Техническая документация |
AZ988 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 27VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | MICRO-ISO, Resistor, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2M1CCQ24VDC1.9RELAY AUTOMOTIVE SPDT 40A 24V |
3,664 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A3M1ACQ12VDC1RELAY AUTOMOTIVE SPST 60A 12V |
3,053 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ984-1C-12DRRELAY AUTOMOTIVE SPDT 20A 12V |
3,274 |
|
Техническая документация |
AZ984 | Box | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 20 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 4 ms | 1.5 ms | 280-ISO, Resistor | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
AZ9701-1A-24DTRELAY AUTOMOTIVE SPST 45A 24V |
2,211 |
|
Техническая документация |
AZ9701 | Box | Active | Non Latching | 66.3 mA | 24VDC | SPST-NO (1 Form A) | 45 A | 150VDC - Max | 13.9 VDC | 1.44 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
A31ACQ24VDC1RELAY AUTOMOTIVE SPST 60A 24V |
4,235 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31ACQ24VDC1DRELAY AUTOMOTIVE SPST 60A 24V |
1,540 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3F1ACQ24VDC1RRELAY AUTOMOTIVE SPST 60A 24V |
1,997 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1ACQ24VDC1DRELAY AUTOMOTIVE SPST 60A 24V |
4,364 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1UCQ12VDC1RELAY AUTOMOTIVE SPST 25A 12V |
2,831 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ12VDC1RRELAY AUTOMOTIVE SPST 60A 12V |
4,063 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ12VDC1DRELAY AUTOMOTIVE SPST 60A 12V |
2,823 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2M1CCQ24VDC1.9DRELAY AUTOMOTIVE SPDT 40A 24V |
4,928 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

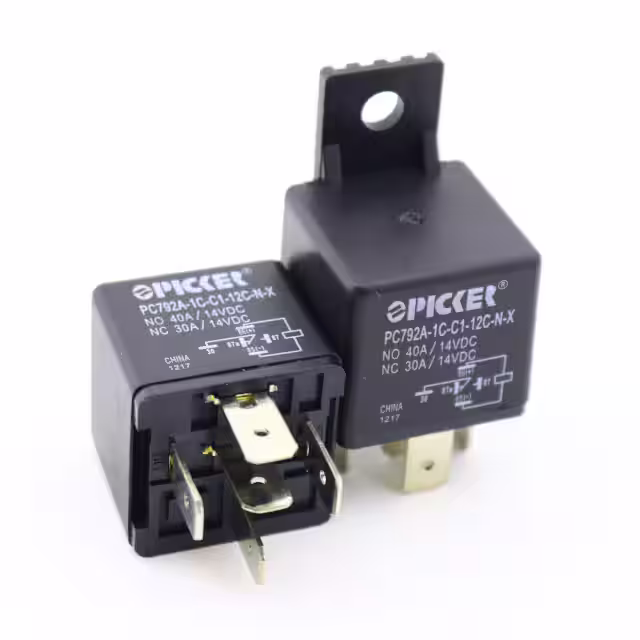

PC792E-1C-C1-12C-N-XRELAY AUTOMOTIVE SPDT 50A 12V |
3,171 |
|
Техническая документация |
- | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ988-1CT-12DSEC1RRELAY AUTOMOTIVE SPDT 30A 12V |
4,071 |
|
Техническая документация |
AZ988 | Box | Active | Non Latching | 96.8 mA | 12VDC | SPDT (1 Form C) | 30 A | 27VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | MICRO-ISO, Resistor, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ9841-1C-24DERELAY AUTOMOTIVE SPDT 40A 24V |
1,841 |
|
Техническая документация |
AZ9841 | Box | Active | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 14.4 VDC | 2.4 VDC | 5 ms | 2 ms | 280-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
A3M1ACQ24VDC1RELAY AUTOMOTIVE SPST 60A 24V |
3,992 |
|
Техническая документация |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
