Автомобильные реле
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2M1ACQ24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V |
4,876 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1ASQ24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V |
1,889 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

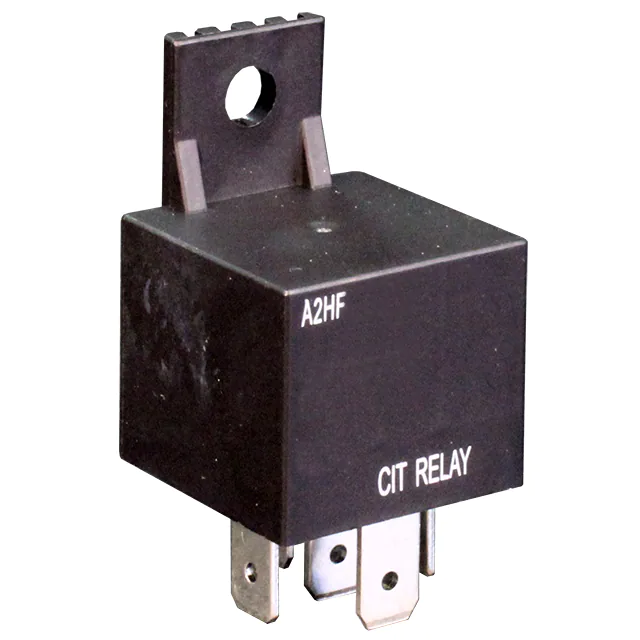

A2HF1CCQ24VDC1.6DRELAY AUTOMOTIVE SPDT 50A 24V |
1,814 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HF1CCQ24VDC1.6RRELAY AUTOMOTIVE SPDT 50A 24V |
2,406 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

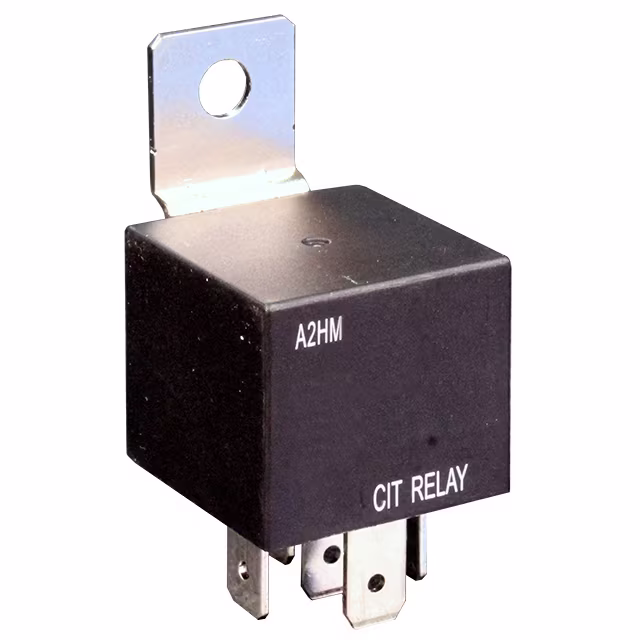

A2HM1CCQ24VDC1.6RELAY AUTOMOTIVE SPDT 50A 24V |
1,586 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

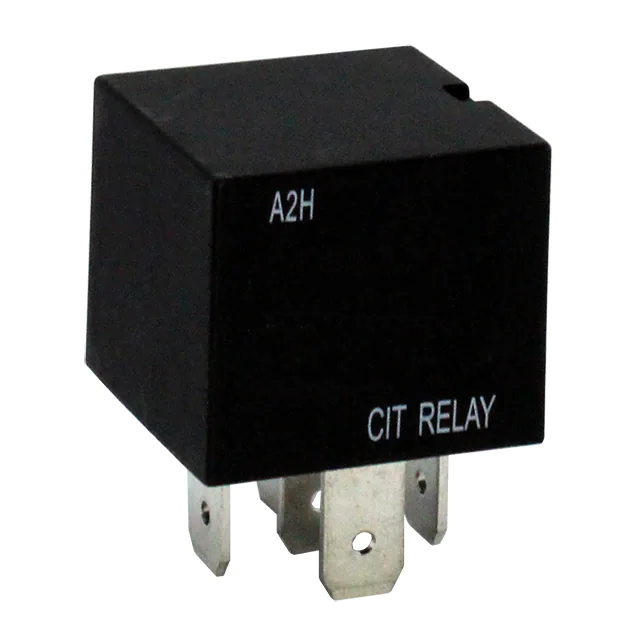

A2H1CCQ24VDC1.6DRELAY AUTOMOTIVE SPDT 50A 24V |
3,714 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2H1CCQ24VDC1.6RRELAY AUTOMOTIVE SPDT 50A 24V |
4,814 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
AZ984-1A-12DRRELAY AUTOMOTIVE SPST 20A 12V |
3,925 |
|
Техническая документация |
AZ984 | Box | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 40VDC - Max | 7.2 VDC | 1.2 VDC | 4 ms | 1.5 ms | 280-ISO, Resistor | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
AZ9731T5-1C-24DC2ED2RELAY AUTOMOTIVE SPDT 50A 24V |
4,186 |
|
Техническая документация |
AZ9731T5 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode, MINI-ISO w/ Plastic mounting bracket, Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1CSQ24VDC1.9RRELAY AUTOMOTIVE SPDT 40A 24V |
4,157 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ988-1CT-12DC1RELAY AUTOMOTIVE SPDT 30A 12V |
3,226 |
|
Техническая документация |
AZ988 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 27VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | MICRO-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A61CC12VDC1.3RELAY AUTOMOTIVE SPDT 30A 12V |
2,658 |
|
Техническая документация |
A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A61CC12VDC.9RELAY AUTOMOTIVE SPDT 30A 12V |
2,614 |
|
Техническая документация |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A2M1CSQ24VDC1.9DRELAY AUTOMOTIVE SPDT 40A 24V |
4,096 |
|
Техническая документация |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ988-1AT-12DEC1RRELAY AUTOMOTIVE SPST 30A 12V |
3,640 |
|
Техническая документация |
AZ988 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 27VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | MICRO-ISO, Resistor, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ9731-1A-48DC2D1RELAY AUTOMOTIVE SPST 40A 48V |
4,913 |
|
Техническая документация |
AZ9731 | Box | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 31.2 VDC | 7.2 VDC | 7 ms | 5 ms | Diode, MINI-ISO w/ Plastic mounting bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8K-17SR DC12MINIATURE POWER PCB RELAY FOR DC |
4,643 |
|
Техническая документация |
G8K | Tube | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
|
A2HM1CCQ24VDC1.6RRELAY AUTOMOTIVE SPDT 50A 24V |
3,477 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HM1CCQ24VDC1.6DRELAY AUTOMOTIVE SPDT 50A 24V |
2,456 |
|
Техническая документация |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9841-1C-12DRELAY AUTOMOTIVE SPDT 40A 12V |
4,849 |
|
Техническая документация |
AZ9841 | Box | Active | Non Latching | 110.1 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | 280-ISO | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
