Настольные, настенные блоки питания переменного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMF18US24AC/DC WALL MOUNT ADAPTER 24V 18W |
4,923 |
|
Техническая документация |
AMF18 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 24V | 750mA | 18 W | - | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11mm | - | Multi-Blade (Sold Separately) | IP22 | 3.56" L x 1.32" W x 2.30" H (90.4mm x 33.5mm x 58.4mm) | CB, CE, CSA, UKCA, UL | 60601-1; 62368-1 |
|
|
AMF18US12AC/DC WALL MOUNT ADAPTER 12V 18W |
2,273 |
|
Техническая документация |
AMF18 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 12V | 1.5A | 18 W | - | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11mm | - | Multi-Blade (Sold Separately) | IP22 | 3.56" L x 1.32" W x 2.30" H (90.4mm x 33.5mm x 58.4mm) | CB, CE, CSA, UKCA, UL | 60601-1; 62368-1 |
|
SMM12-9-4W-MUBAC-DC, 9 VDC, 1.33 A, SW, MULTI- |
3,596 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | USB Micro | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV | 60601-1; 60950-1 |
|

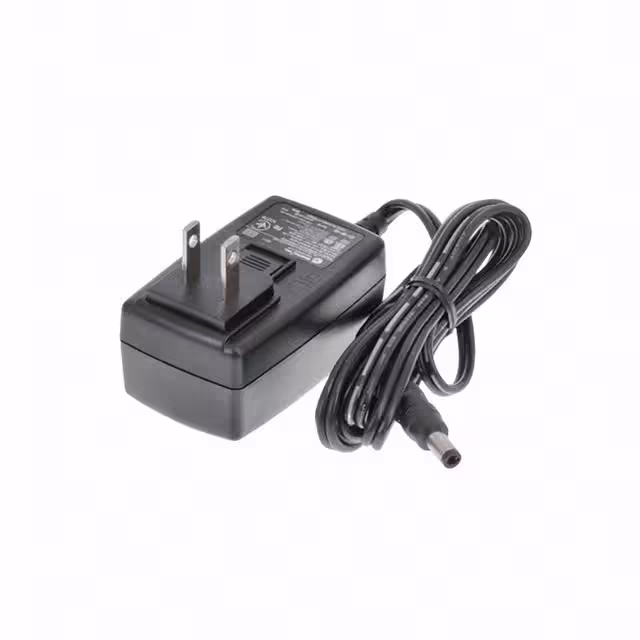

WR9QX833LCPNNAR6BAC/DC WALL MOUNT ADAPTER 48V 40W |
3,139 |
|
Техническая документация |
GTM46402-40VV-x.x-Q | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 830mA | 40 W | 75mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 1.71" L x 2.91" W x 1.39" H (43.5mm x 74.0mm x 35.3mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKRSepro, UL, VCCI | 1310; 60335-1; 60601-1-11; 60601-1-2; 60950-1; 62368-1 |
|
750-00009AC/DC WALL MNT ADAPTER 7.5V 12W |
2,161 |
|
Техническая документация |
- | Box | Discontinued at Digi-Key | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 7.5V | 1.6A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | Multi-Blade | - | - | - | - |
|
SDI40-12-UDC-P5AC/DC DESKTOP ADAPTER 12V 36W |
3,016 |
|
Техническая документация |
SDI40-UD (40W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | IEC 320-C8 | - | 4.37" L x 2.05" W x 1.27" H (111.0mm x 52.0mm x 32.3mm) | CE, cULus, GS, PSE | - |
|
|
WR9QH2200LRPNNAR6BAC/DC WALL MOUNT ADAPTER 18V 40W |
3,597 |
|
Техническая документация |
GTM46402-4018 | Bulk | Active | North America | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 18V | 2.2A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.91" L x 1.71" W x 1.39" H (74.0mm x 43.5mm x 35.3mm) | CB, CCC, CE, cETLus, EAC, ETL, FCC, LPS, PSE, RCM, UKCA, Ukraine, UL, VCCI, WEEE | 60335-1; 60601-1; 60950-1; 62368-1 |
|
TRH25180-A-01E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W |
2,240 |
|
Техническая документация |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 1.4A | 25 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | - | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, GS, TUV | 60950-1 |
|
TRH25240-A-01E03 VIAC/DC WALL MOUNT ADAPTER 24V 25W |
2,852 |
|
Техническая документация |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.05A | 25 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, GS, TUV | - |
|
TRH25180-A-11E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W |
2,560 |
|
Техническая документация |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 1.4A | 25 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, GS, TUV | - |
|
SMM12-5-4W-P5AC/DC WALL MOUNT ADAPTER 5V 12W |
3,939 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cULus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
|
SMM12-5-4W-P6AC/DC WALL MOUNT ADAPTER 5V 12W |
3,902 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cULus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
|
SMM12-5-4W-P5RAC-DC, 5 VDC, 2.4 A, SW, MULTI-B |
2,695 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
|
TOL-23584RASPBERRY PI 27W USB-C PD POWER |
4,770 |
|
Техническая документация |
- | Bag | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 9V, 12V, 15V | 3A, 2.25A, 1.8A | 27 W | - | - | ITE (Commercial) | Level VI | - | USB C Power Delivery (PD) | - | NEMA 1-15P | - | - | cULus, FCC | - |
|
|
TOL-23583RASPBERRY PI 27W USB-C PD POWER |
2,767 |
|
Техническая документация |
- | Bag | Active | North America | Wall Mount (Class II) | Fixed Blade | - | 9V, 12V, 15V | 3A, 2.25A, 1.8A | 27 W | - | - | ITE (Commercial) | - | - | USB C Power Delivery (PD) | - | NEMA 1-15P | - | - | - | - |
|
|
GSM12U12-P1JAC/DC WALL MNT MED ADPT USA CBL |
2,522 |
|
Техническая документация |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 12V | 1A | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.8" (1.80m) | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | cURus, EAC, FCC | 60601-1 |
|
|
GSM12U07-P1JAC/DC WALL MNT MED ADPT USA CBL |
3,313 |
|
Техническая документация |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 7.5V | 1.6A | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39" (1.00m) | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | cURus, EAC, FCC | 60601-1 |
|
|
GSM12U05-P1JAC/DC WALL MNT ADAPTER USA |
3,997 |
|
Техническая документация |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 5V | 2.4A | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39" (1.00m) | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | cURus, EAC, FCC | 60601-1 |
|
|
GSM12E05-P1JAC/DC WALL MNT MED ADPT EU CBL C |
1,049 |
|
Техническая документация |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 5V | 2.4A | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39" (1.00m) | CEE 7/16 | - | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | CE, EAC, TUV, UKCA | 60601-1 |
|
|
GSM12E48-P1JAC/DC WALL MNT ADAPTER EU CBL |
4,255 |
|
Техническая документация |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 48V | 250mA | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.8" (1.80m) | CEE 7/16 | - | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | CE, EAC, TUV, UKCA | 60601-1 |
