Настольные, настенные блоки питания переменного тока
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Используемая область | Форма | Тип входа | Напряжение - Вход | Напряжение - выход | Ток - выход (макс.) | Мощность (Вт) | Потребляемая мощность без нагрузки | Поляризация | Применение | Эффективность | Рабочая температура | Выходной разъем | Длина шнура | Входной разъем | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSM36U48-P1JAC/DC WALL MOUNT ADAPTER 48V 36W |
3,992 |
|
Техническая документация |
GSM36U (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC | 48V | 750mA | 36 W | 100mW (Max) | Positive Center | Medical | Level VI | -25°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | CB, cRUus, TUV | - |
|
ICM20-050UV1INT'L 20W WALL MOUNT,POWER, 5V |
1,906 |
|
Техническая документация |
Tri-Mag, ICM20 (20W) | Bulk | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 3A | 15 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB A Receptacle | - | Multi-Blade (Included) | - | 2.32" L x 1.61" W x 1.28" H (58.9mm x 40.9mm x 32.5mm) | cUL, UL | 62368-1 |
|
GST60A12-P1JRAC/DC DESKTOP ADAPTER 12V 60W |
4,556 |
|
Техническая документация |
GST60A (60W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | - |
|

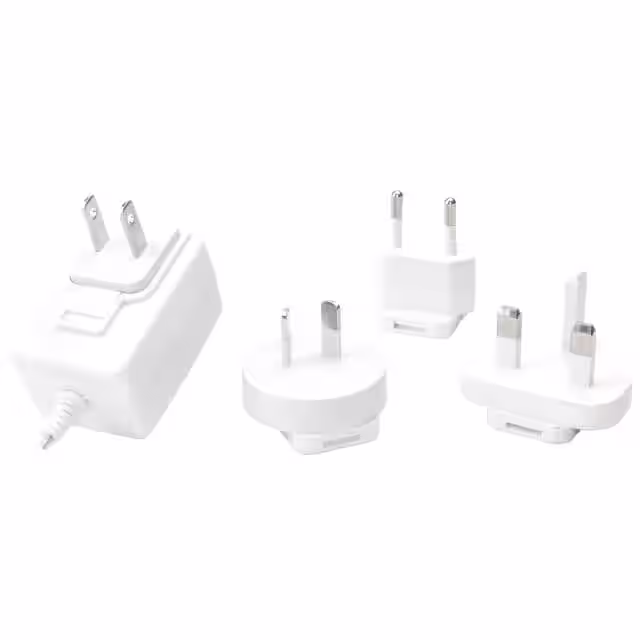

SMM12-9-4W-P5AC/DC WALL MOUNT ADAPTER 9V 12W |
4,064 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cULus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
|
SMM12-9-4W-P6AC/DC WALL MOUNT ADAPTER 9V 12W |
1,652 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cULus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
|
SMM12-9-4W-P5RAC-DC, 9 VDC, 1.33 A, SW, MULTI- |
3,067 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 1.33A | 12 W | 100mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
25HK-AB-120A250-CP6AC/DC DSKTP/WALL MT ADPT 12V 30W |
1,302 |
|
Техническая документация |
25HK-AB (30W) | Box | Obsolete | International | Desktop, Wall Mount (Class II) | Cord, Multi-Blade | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 100mW (Max) | - | ITE (Commercial) | 86.94% | 0°C ~ 40°C | Power DIN, 2 Pin | 72" (1.83m) | IEC 320-C8, Multi-Blade (Included) | - | 3.98" L x 2.05" W x 1.42" H (101.0mm x 52.0mm x 36.0mm) | CB, CE, cUL, FCC, GS, RCM, TUV, UL | 60950-1 |
|
|
25HK-AB-090A250-CP6AC/DC DSKTP/WALL MT ADAPT 9V 23W |
1,379 |
|
Техническая документация |
25HK-AB (30W) | Box | Obsolete | International | Desktop, Wall Mount (Class II) | Cord, Multi-Blade | 90 ~ 264 VAC | 9V | 2.5A | 23 W | 100mW (Max) | - | ITE (Commercial) | 85.96% | 0°C ~ 40°C | Power DIN, 2 Pin | 72" (1.83m) | IEC 320-C8, Multi-Blade (Included) | - | 3.98" L x 2.05" W x 1.42" H (101.0mm x 52.0mm x 36.0mm) | CB, CE, cUL, FCC, GS, RCM, TUV, UL | 60950-1 |
|

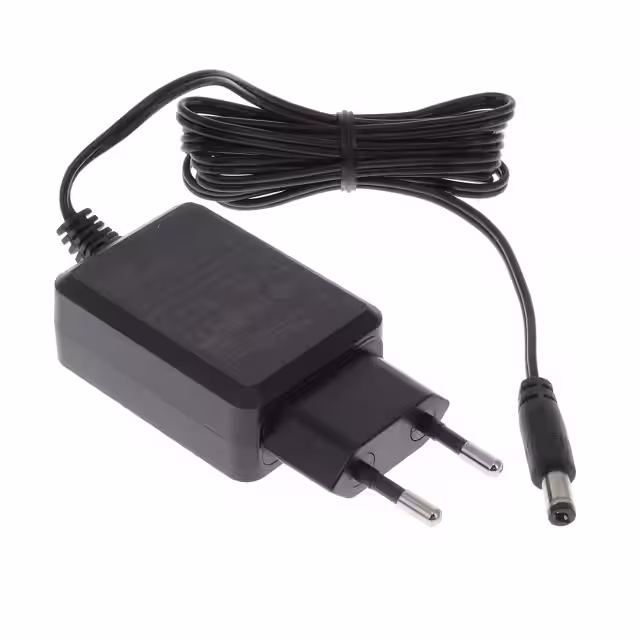

SGAS15E05-P1JAC/DC WALL MOUNT ADAPTER 5V 12W |
2,469 |
|
Техническая документация |
SGAS15E (15W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 75mW | Positive Center | ITE (Commercial) | 79% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | CEE 7/16 | - | 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm) | CB, CE, EAC, FCC, GS, TUV, UKCA | 62368-1 |
|

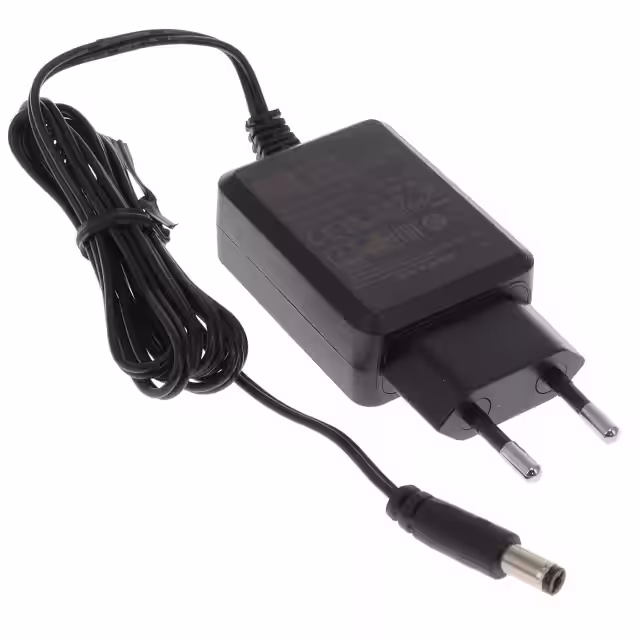

SGAS15E12-P1JAC/DC WALL MOUNT ADAPTER 12V 15W |
4,696 |
|
Техническая документация |
SGAS15E (15W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 75mW | Positive Center | ITE (Commercial) | 85% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | CEE 7/16 | - | 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm) | CB, CE, EAC, FCC, GS, TUV, UKCA | 62368-1 |
|

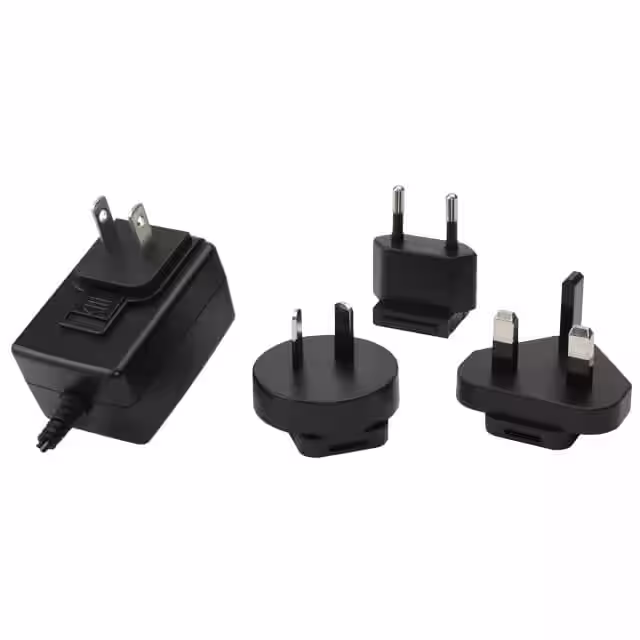

SMM12-5-4B-P5AC/DC WALL MOUNT ADAPTER 5V 12W |
2,345 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cULus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
|
SMM12-5-4B-P6AC/DC WALL MOUNT ADAPTER 5V 12W |
4,634 |
|
Техническая документация |
SMM12 (12W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cULus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
|
GSM12E05-USBAC/DC WALL MNT ADAPTER EU |
3,139 |
|
Техническая документация |
GSM12E (12W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 5V | 2.4A | 12 W | - | - | Medical | Level VI | -20°C ~ 70°C | USB A Receptacle | - | CEE 7/16 | - | 2.45" L x 1.08" W x 1.56" H (62.2mm x 27.4mm x 39.7mm) | CE, EAC, TUV, UKCA | 60601-1 |
|

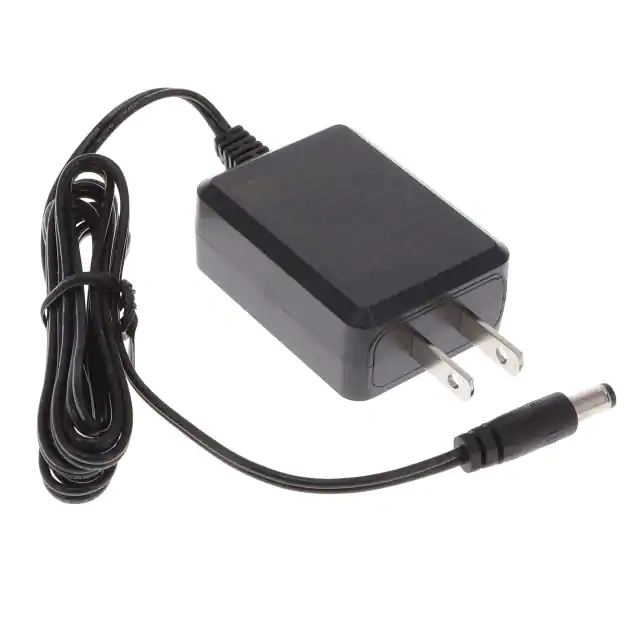

SGAS15U05-P1JAC/DC WALL MOUNT ADAPTER 5V 15W |
4,790 |
|
Техническая документация |
SGAS15U (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2.4A | 15 W | 75mW | Positive Center | ITE (Commercial) | 79% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | NEMA 1-15P | - | 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm) | CB, cULus, EAC, FCC | 62368-1 |
|
|
GST60A12-P2LRAC/DC DESKTOP ADAPTER 12V 60W |
1,536 |
|
Техническая документация |
GST60A (60W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | - |
|
SDI36-24-U-STAC/DC DESKTOP ADAPTER 24V 36W |
4,312 |
|
Техническая документация |
SDI36-U (36W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Stripped, Tinned Wire Leads | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
ACM24US15AC/DC WALL MOUNT ADAPTER 15V 24W |
3,949 |
|
Техническая документация |
ACM24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | 87.7% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | - | - | 3.46" L x 1.18" W x 2.24" H (87.9mm x 30.0mm x 56.9mm) | CB, CE, CSA, TUV, UL | 60601-1; 62368-1 |
|
|
ACM24US18AC/DC WALL MOUNT ADAPTER 18V 24W |
1,812 |
|
Техническая документация |
ACM24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.33A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | 88.4% | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | - | - | 3.46" L x 1.18" W x 2.24" H (87.9mm x 30.0mm x 56.9mm) | CB, CE, CSA, TUV, UL | 60601-1; 62368-1 |
|
|
ACM24US48AC/DC WALL MOUNT ADAPTER 48V 24W |
4,211 |
|
Техническая документация |
ACM24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 500mA | 24 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 3.46" L x 1.18" W x 2.24" H (87.9mm x 30.0mm x 56.9mm) | CB, CE, CSA, TUV, UL | 60601-1; 62368-1 |
|
MW170KB2403F01AC/DC DESKTOP ADAPTER 24V 15W |
2,619 |
|
Техническая документация |
MW170KB (10-15W) | Box | Not For New Designs | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 630mA | 15 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C14 | - | 3.30" L x 1.81" W x 1.26" H (84.6mm x 46.0mm x 33.0mm) | CE, cULus | - |
