Динамики
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Технология | Тип | Диапазон частот | Частота - саморезонансная | Импеданс | Эффективность - дБА | Эффективность - тестирование | Эффективность - тип | Мощность - Номинальная | Мощность - макс. | Расположение порта | Форма | Материал - конус | Материал - Магнит | Защита от проникновения | Номинальные значения | Оконечная нагрузка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

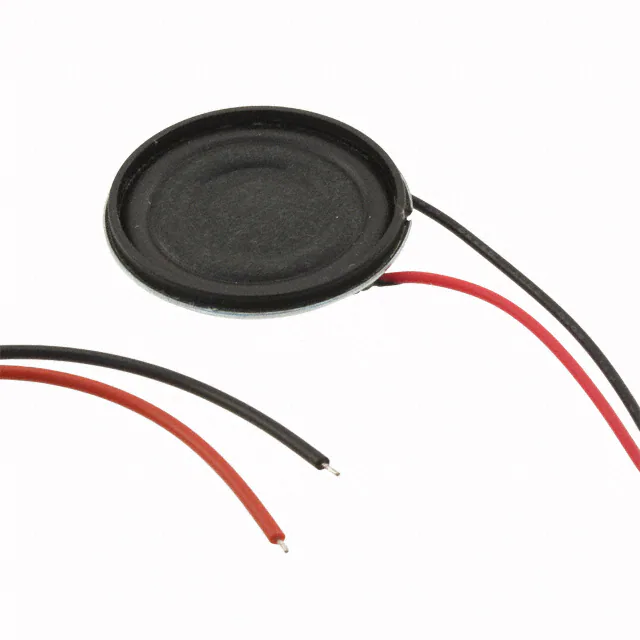

CLS0301-L152SPEAKER 8OHM 1W TOP PORT 86DB |
239 |
|
Техническая документация |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 20 kHz | 550Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 1.181" Dia (30.00mm) | 0.232" (5.90mm) |
|

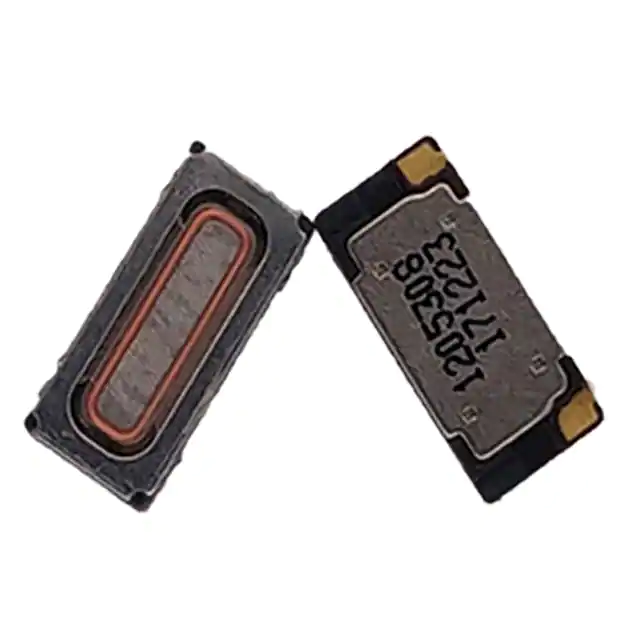

TR1205S030YN8SPEAKER 8OHM 300MW TOP PORT 73DB |
895 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1.4kHz | 8 Ohms | 73.00 | 1W/1M | Sensitivity | 300 mW | 500 mW | Top | Rectangular | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.472" L x 0.217" W (12.00mm x 5.50mm) | 0.111" (2.83mm) |
|
CR1506L025YN8WPGDA6x15mm speaker with gasket |
433 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose | - | 950Hz | 8 Ohms | 70.00 | 1W/1m | Sensitivity | 500 mW | 700 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Contacts | 0.591" L x 0.236" W (15.00mm x 6.00mm) | 0.098" (2.50mm) |
|
|
SOD20722X4CVT-CCSPEAKER - 50MM DIAMETER WITH WIR |
120 |
|
Техническая документация |
- | Tray | Active | - | General Purpose | 300 Hz ~ 10 kHz | 300Hz | 4 Ohms | 84.00 | 1W/1M | Sensitivity | 1 W | 2 W | Top | Round | - | - | - | - | Wire Leads | 1.969" Dia (50.00mm) | 0.717" (18.20mm) |
|

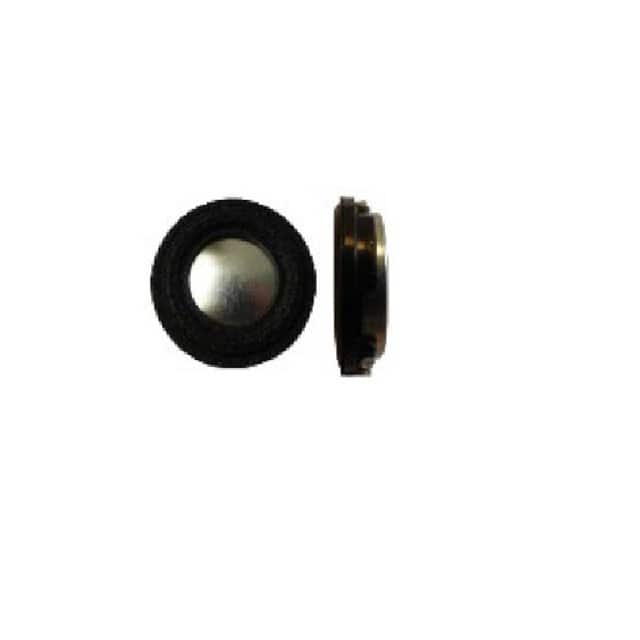

CC18S05YN4SPEAKER 4OHM 1W TOP PORT 72DB |
103 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 5 kHz | 350Hz | 4 Ohms | 72.00 | 1W/1M | Sensitivity | 1 W | 1.2 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 0.709" Dia (18.00mm) | 0.205" (5.20mm) |
|
CS18-01S100-05-1SPEAKER 8OHM 1W TOP PORT 97DB |
1,906 |
|
Техническая документация |
- | Tape & Reel (TR) | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 97.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Square | Polyimide (PI) | SmCo | - | - | Solder Pads | 0.709" L x 0.709" W (18.00mm x 18.00mm) | 0.201" (5.10mm) |
|
|
CAC45-02W70-06-1CHAMBER ASSEMBLY |
769 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 560 Hz ~ 20 kHz | 700Hz | 4 Ohms | 92.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Side | Rectangular | Polyphthalamide (PPA) | Nd-Fe-B | - | - | Wire Leads | 1.783" L x 0.804" W (45.30mm x 20.41mm) | 0.266" (6.75mm) |
|
|
CS32-03W23-16-1XSPEAKER 8OHM 3W 83DB |
1,000 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose | 184 Hz ~ 20 kHz | 230Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Square Frame | Foam | Nd-Fe-B | IP65 - Dust Tight, Waterproof Face | - | Wire Leads | 1.287" L x 1.248" W (32.70mm x 31.70mm) | 0.650" (16.50mm) |
|
|
CAC44-01W85-15-1XCHAMBER ASSEMBLY |
737 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 10 kHz | 850Hz | 4 Ohms | 105.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.732" Dia (44.00mm) | 0.591" (15.00mm) |
|

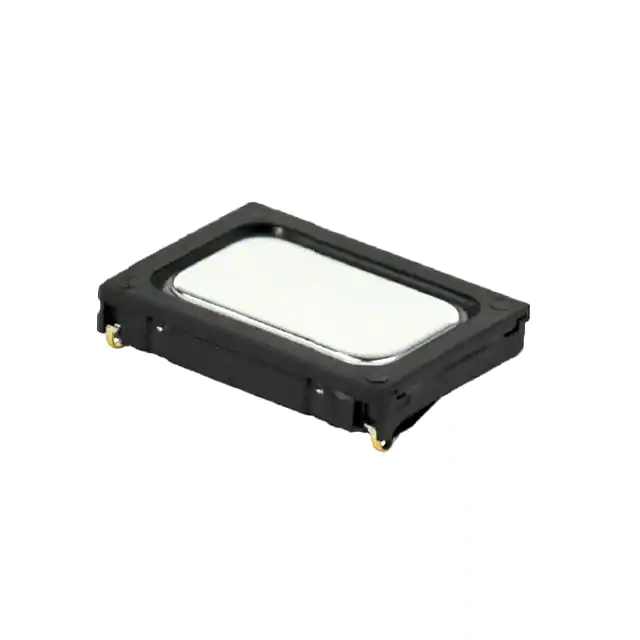

CMS-15118-25-SPSPEAKER 8OHM 700MW TOP PT 91.5DB |
2,812 |
|
Техническая документация |
CMS | Bulk | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 8 Ohms | 91.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.098" (2.50mm) |
|
|
CS27-01P60-02-1XSPEAKER 8OHM 1W 94DB |
990 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 600Hz | 8 Ohms | 94.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Thermoplastic Polyester Elastomer (TPEE) | Nd-Fe-B | IPX7 | - | Solder Pads | 1.063" L x 0.472" W (27.00mm x 12.00mm) | 0.100" (2.55mm) |
|
|
CS20-00P27-03-1SPEAKER 25OHM 0.1W 85DB |
868 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 270Hz | 25 Ohms | 85.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 120 mW | Top | Rectangular | Thermoplastic Polyester Elastomer (TPEE) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.315" W (20.00mm x 8.00mm) | 0.122" (3.10mm) |
|

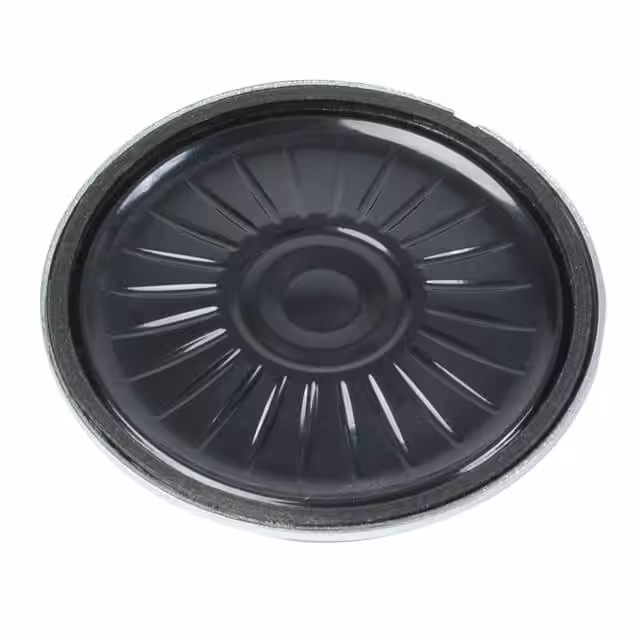

GC0402MASPEAKER 8OHM 500MW TOP PORT 96DB |
1,741 |
|
Техническая документация |
GC | Bulk | Active | Magnetic | Low Profile | 580 Hz ~ 20 kHz | - | 8 Ohms | 96.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) | 0.193" (4.90mm) |
|
|
CAC40-02W90-15-1XCHAMBER ASSEMBLY |
1,030 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 20 kHz | 900Hz | 4 Ohms | 104.00 | 2W/10cm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IPX8 | - | Wire Leads with Connector | 1.575" L x 1.339" W (40.00mm x 34.00mm) | 0.614" (15.60mm) |
|
|
OWS-525229TA-4SPEAKER 4OHM 5W TOP PORT 82.5DB |
250 |
|
Техническая документация |
- | Tray | Active | Magnetic | Full Range | 120 Hz ~ 20 kHz | 120Hz | 4 Ohms | 82.50 | 5W/10cm | Sensitivity | 5 W | 8 W | Top | Round | Plastic | Nd-Fe-B | - | - | Solder Pads | 2.047" L x 2.047" W (52.00mm x 52.00mm) | 1.244" (31.60mm) |
|
CLS0401M-L152SPEAKER 8OHM 200MW TOP PORT 80DB |
256 |
|
Техническая документация |
CLS | Box | Active | Magnetic | Low Profile | 600 Hz ~ 8 kHz | 600Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) | 0.382" (9.70mm) |
|

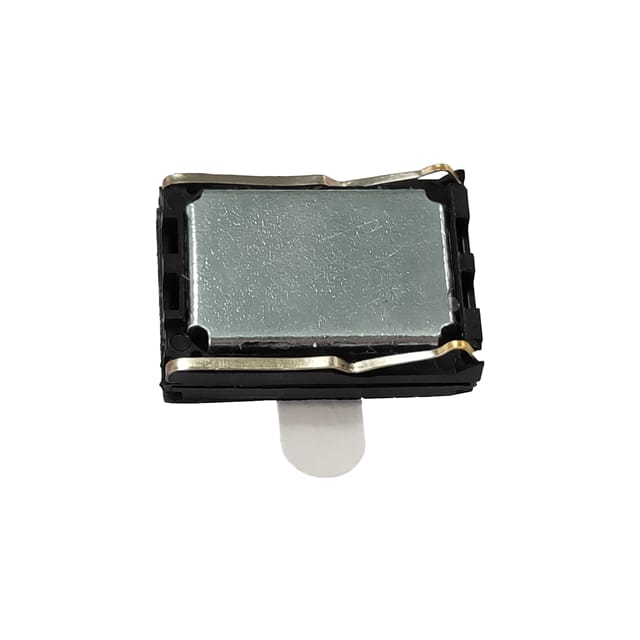

BMS1511F-11C-08H3.5RPSPEAKER 8OHM 700MW TOP PORT 89DB |
2,525 |
|
Техническая документация |
BMS | Box | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 89.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.138" (3.50mm) |
|
|
OWS-434320TA-4A-WSPEAKER 4OHM 4W TOP PORT 82DB |
550 |
|
Техническая документация |
- | Tray | Active | Magnetic | High Power Speaker | 100 Hz ~ 20 kHz | 230Hz | 4 Ohms | 108.00 | 3W/10cm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | Plastic | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Solder Pads | 1.654" L x 1.654" W (42.00mm x 42.00mm) | 0.850" (21.60mm) |
|
|
CAC43-01F64-03-1CHAMBER WITH FPC CONNECTOR |
1,000 |
|
Техническая документация |
- | Tray | Active | Magnetic | General Purpose | 640 Hz ~ 10 kHz | 640Hz | 8 Ohms | 93.50 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Thermoplastic Polyester Elastomer (TPEE) | Nd-Fe-B | - | - | Solder Pads | 1.694" L x 1.469" W (43.03mm x 37.30mm) | 0.136" (3.45mm) |
|

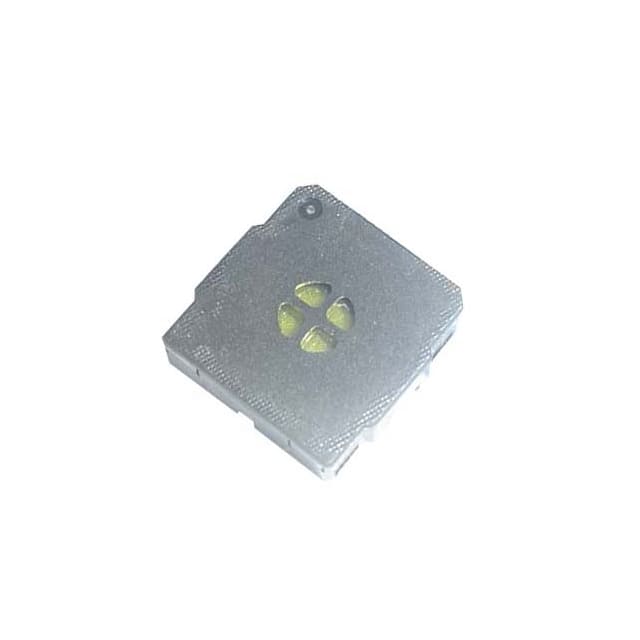

SMS1515-08H04SPEAKER 8OHM 500MW TOP PORT 87DB |
160 |
|
Техническая документация |
SMS | Box | Active | Magnetic | General Purpose | 950 Hz ~ 950 Hz | 800Hz | 8 Ohms | 87.00 | 500mW/10cm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Square | - | Nd-Fe-B | - | - | - | 0.591" Dia (15.00mm) | 0.161" (4.10mm) |
