РЧ-антенны
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
665-15GAIN HORN, STD W/G 26.5-40 GHZ W |
2,650 |
|
Техническая документация |
665 | Box | Active | - | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.18 | - | 15dB | - | - | - | - | - | - | Bracket Mount | 1.870" (47.50mm) | - |
|
|
664-15GAIN HORN, STD W/G 22.0-33.0G WR |
2,195 |
|
Техническая документация |
664 | Box | Active | - | SHF (f > 4GHz) | 22.5GHz | 22GHz ~ 23GHz | Horn | 1 | 1.18 | - | 15dB | - | - | - | - | - | - | Bracket Mount | 2.120" (53.85mm) | - |
|
|
659-20GAIN HORN, STD W/G 8.20-12.4GHZ, |
2,025 |
|
Техническая документация |
659 | Box | Active | - | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.15 | - | 20dB | - | - | - | - | - | - | Bracket Mount | 10.060" (255.52mm) | - |
|
|
663-15GAIN HORN, STD W/G 18-26.5 GHZ W |
2,542 |
|
Техническая документация |
663 | Box | Active | - | SHF (f > 4GHz) | 22.25GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.18 | - | 15dB | - | - | - | - | - | - | Bracket Mount | 2.370" (60.20mm) | - |
|
|
653-10GAIN HORN, STD W/G 3.30-4.90GHZ, |
1,635 |
|
Техническая документация |
653 | Box | Active | - | SHF (f > 4GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.25 | - | 10dB | - | - | - | - | - | - | Bracket Mount | 6.450" (163.83mm) | - |
|
|
656-20GAIN HORN, STD W/G 5.85-8.20GHZ, |
3,547 |
|
Техническая документация |
656 | Box | Active | - | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.15 | - | 20dB | - | - | - | - | - | - | Bracket Mount | 12.190" (309.63mm) | - |
|
|
662-15GAIN HORN, STD W/G 15.0-22.0GHZ |
3,834 |
|
Техническая документация |
662 | Box | Active | - | SHF (f > 4GHz) | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.18 | - | 15dB | - | - | - | - | - | - | Bracket Mount | 2.840" (72.14mm) | - |
|
|
655-20GAIN HORN STD W/G 4.90-7.05GHZ W |
3,530 |
|
Техническая документация |
655 | Box | Active | - | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.15 | - | 20dB | - | - | - | - | - | - | Bracket Mount | 11.730" (297.94mm) | - |
|
|
660-10GAIN HORN, STD W/G 10.0-15.0GHZ, |
1,147 |
|
Техническая документация |
660 | Box | Active | - | SHF (f > 4GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.25 | - | 10dB | - | - | - | - | - | - | Bracket Mount | 1.940" (49.28mm) | - |
|
|
657-10GAIN HORN, STD W/G 7.05-10.0GHZ, |
2,146 |
|
Техническая документация |
657 | Box | Active | - | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.25 | - | 10dB | - | - | - | - | - | - | Bracket Mount | 2.550" (64.77mm) | - |
|
|
657-20GAIN HORN, STD W/G 7.05-10.0GHZ |
2,290 |
|
Техническая документация |
657 | Box | Active | - | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.15 | - | 20dB | - | - | - | - | - | - | Bracket Mount | 10.780" (273.81mm) | - |
|
|
651-10GAIN HORN, STD W/G 1.70-2.60GHZ, |
4,013 |
|
Техническая документация |
651 | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.15GHz | 1.7GHz ~ 2.6GHz | Horn | 1 | 1.25 | - | 10dB | - | - | - | - | - | - | Bracket Mount | 10.500" (266.70mm) | - |
|
|
662-20GAIN HORN, STD W/G 15.0-22.0GHZ |
4,195 |
|
Техническая документация |
662 | Box | Active | - | SHF (f > 4GHz) | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.15 | - | 20dB | - | - | - | - | - | - | Bracket Mount | 4.880" (123.95mm) | - |
|

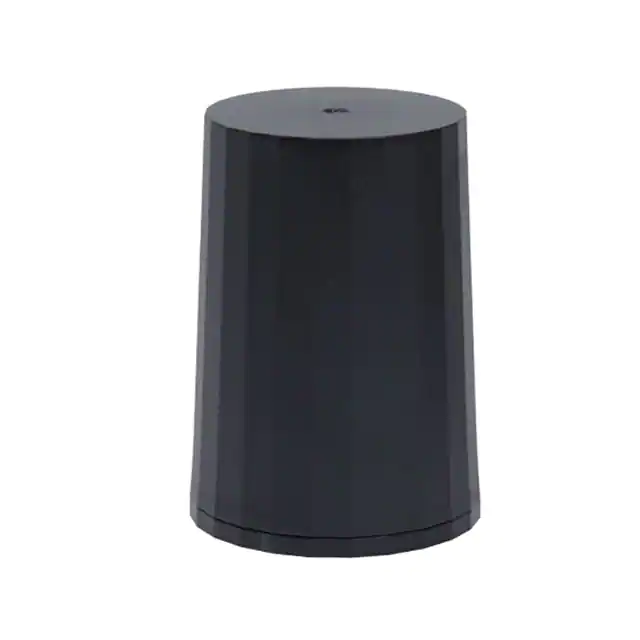

33-HC975-35TRIPLE BAND ANTENNA + L BAND |
3,936 |
|
Техническая документация |
- | Bulk | Obsolete | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.202GHz, 1.5655GHz | 1.164GHz ~ 1.24GHz, 1.525GHz ~ 1.606GHz | Helical | 2 | 1.8 | - | 35dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GPS, LTE |
|
|
33-HC975-28TRIPLE BAND ANTENNA + L BAND |
2,094 |
|
Техническая документация |
- | Bulk | Obsolete | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.202GHz, 1.5655GHz | 1.164GHz ~ 1.24GHz, 1.525GHz ~ 1.606GHz | Helical | 2 | 1.8 | - | 28dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GPS, LTE |
|
|
SRG9002KIT INSTALL N6 INDOOR ANT LTE |
1,663 |
|
Техническая документация |
- | Box | Discontinued at Digi-Key | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | - | - | - | - | - | - | Connector | - | - | - | Connector Mount | - | LTE |
|
|
SRG9001KIT INSTALL N6 INDOOR ANT/MOUNT |
1,035 |
|
Техническая документация |
- | Box | Discontinued at Digi-Key | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | - | - | - | - | - | - | Connector | - | - | - | Connector Mount | - | - |
|

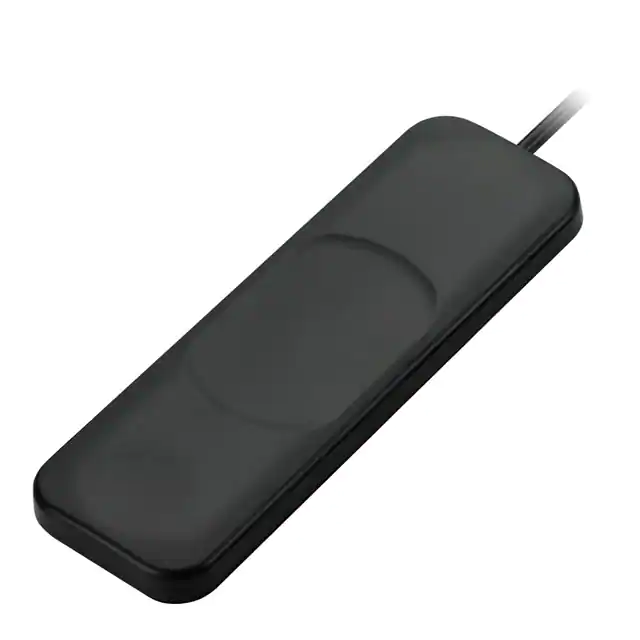

FS.700.A.10WW111FS.700 FIRSTNET / BAND 14 ADHESI |
3,188 |
|
Техническая документация |
- | Bag | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 1.5885GHz, 1.85GHz, 2.045MHz, 2.3325GHz, 2.45GHz, 2.6GHz, 3.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.565GHz ~ 1.612GHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.305GHz ~ 2.36GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz, 4.8GHz ~ 6GHz | Module | 9 | - | - | 1.36dBi, 0.98dBi, 3.4dBi, 2.69dBi, 3.85dBi, 4.3dBi, 2.06dBi | 5 W | Cable - 1m | SMA Male | IP65 | - | - | Adhesive | 0.535" (13.60mm) | CDMA, GNSS, GSM, HSDPA, LTE, UMTS, Wi-Fi |
|
FMA959.A.LBFCG.001FMA959 5IN1 ADHESIVE MOUNT ANTEN |
3,833 |
|
Техническая документация |
- | Box | Obsolete | Cellular, Navigation, WiFi | Wide Band | 750.5MHz, 869MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.59GHz | 698MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2. | Module | 13 | 2, 3 | 10dB | 3.18dBi, 3.6dBi, 2.14dBi, 3.01dBi, 1.98dBi, 3dBi, 3.98dBi, 4.37dBi, 4.37dBi, 1.35dBi, 3.7dBi, 4.49dB | - | Cable - 1m, LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Surface Mount | 0.787" (20.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|

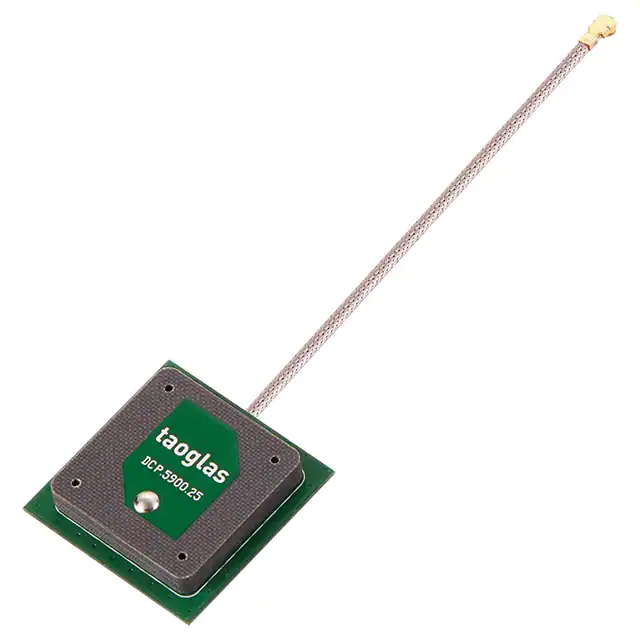

DCPP.25A.07.0150E5.9GHZ DSRC / C-V2X PATCH ANTENN |
4,600 |
|
Техническая документация |
- | Bag | Obsolete | - | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | Ceramic Patch | 1 | - | -6dB | 4.2dBi | - | Cable - 150mm | I-PEX MHF2 | - | - | - | Surface Mount | 0.197" (5.00mm) | General Purpose |
