Герконовые реле
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

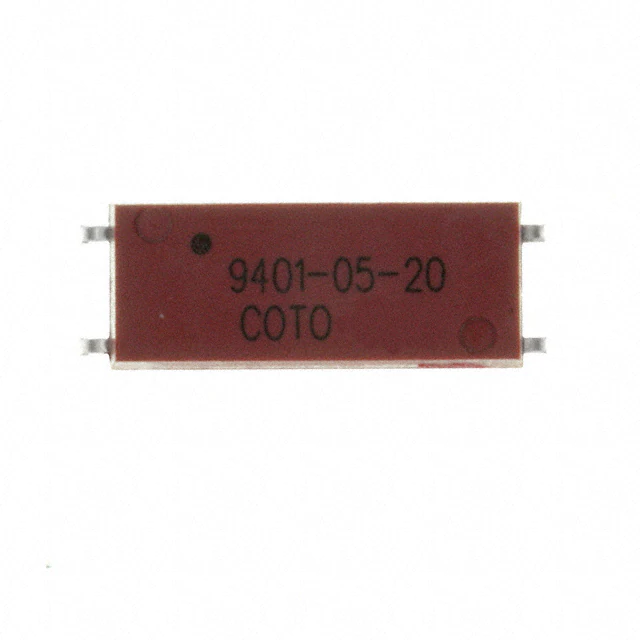

9401-05-10RELAY REED SPST 500MA 5V |
4,181 |
|
Техническая документация |
9400 | Tube | Obsolete | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | - | Axial | - | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9401-12-10RELAY REED SPST 500MA 12V |
1,205 |
|
Техническая документация |
9400 | Tube | Obsolete | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | Axial | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
9401-12-20RELAY REED SPST 500MA 12V |
4,483 |
|
Техническая документация |
9400 | Tube | Obsolete | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | J Lead | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9901-05-10RELAY REED SPST 250MA 5V |
1,801 |
|
Техническая документация |
9900 | Tube | Obsolete | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 33.3 mA | Non Latching | EMI Shielded | Axial | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | - |
|
|

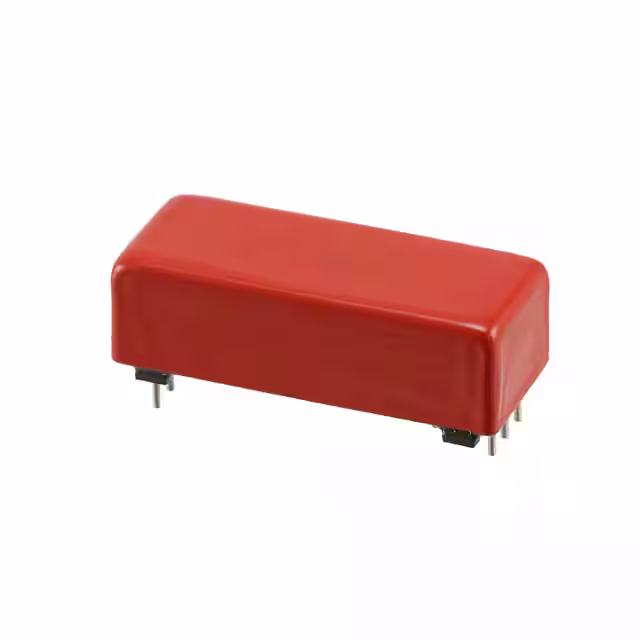

7101-05-1001RELAY REED SPST 500MA 5V |
2,555 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 16.7 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-12-1001RELAY REED SPST 500MA 12V |
2,374 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7121-24-1000RELAY REED SPST 500MA 24V |
3,204 |
|
Техническая документация |
7000 | Tube | Obsolete | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7121-24-1100RELAY REED SPST 500MA 24V |
3,897 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7141-05-1000RELAY REED SPDT 250MA 5V |
4,875 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
7101-24-1010RELAY REED SPST 500MA 24V |
3,686 |
|
Техническая документация |
7000 | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.7 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7102-05-1101RELAY REED DPST 500MA 5V |
2,803 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-05-1011RELAY REED SPST 500MA 5V |
1,958 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 16.7 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-24-1011RELAY REED SPST 500MA 24V |
4,380 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.7 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7160-05-1000RELAY REED DPST 500MA 5V |
3,029 |
|
Техническая документация |
7000 | Tube | Obsolete | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7102-24-1010RELAY REED DPST 500MA 24V |
1,003 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7122-12-1000RELAY REED DPST 500MA 12V |
2,930 |
|
Техническая документация |
7000 | Tube | Obsolete | Through Hole | 12VDC | DPST-NC (2 Form B) | 500 mA | 200VAC, 200VDC - Max | 15 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7103-12-1110RELAY REED 3PST 500MA 12V |
2,641 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 15 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7122-24-1000RELAY REED DPST 500MA 24V |
3,417 |
|
Техническая документация |
7000 | Tube | Obsolete | Through Hole | 24VDC | DPST-NC (2 Form B) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-12-1110RELAY REED 4PST 500MA 12V |
4,162 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7102-24-1011RELAY REED DPST 500MA 24V |
1,558 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
