Герконовые реле
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7104-12-1011RELAY REED 4PST 500MA 12V |
1,725 |
|
Техническая документация |
7000 | Bulk | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
BFH-2C05200V/0.5A REED RELAY, 2 FORM C, |
4,086 |
|
Техническая документация |
BFH | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 100VDC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 1.5 ms | 2 ms | -40°C ~ 125°C | - | |
|
|
3602-05-92RELAY REED DPST 250MA 5V |
2,254 |
|
Техническая документация |
3600 | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3501-05-711RELAY REED SPST 500MA 5V |
2,012 |
|
Техническая документация |
3500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-05-1010RELAY REED 4PST 500MA 5V |
2,300 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 5VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-12-1000RELAY REED 4PST 500MA 12V |
4,464 |
|
Техническая документация |
7000 | Bulk | Obsolete | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3502-12-810RELAY REED DPST 500MA 12V |
2,419 |
|
Техническая документация |
3500 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
S2-12EURELAY REED SPST 1A 12V UL |
1,706 |
|
Техническая документация |
S2 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-24-2ARELAY REED TWIN N/O 1.5KV 24V |
4,274 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-24-CRELAY REED C/O 24V |
3,254 |
|
Техническая документация |
S3 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-12-CMRELAY REED C/O 12V |
2,445 |
|
Техническая документация |
S3 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 66.7 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|

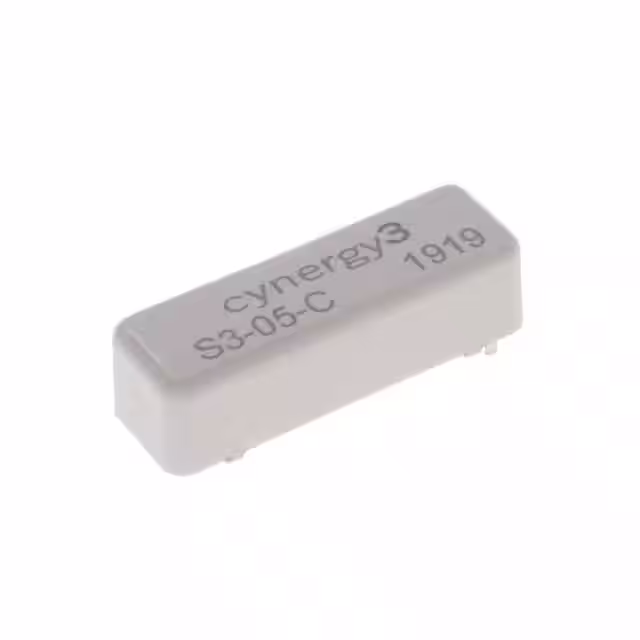

S3-05-CRELAY REED C/O 5V |
1,465 |
|
Техническая документация |
S3 | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 167 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-05-CMRELAY REED C/O 5V |
2,988 |
|
Техническая документация |
S3 | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 167 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-12-CRELAY REED C/O 12V |
1,549 |
|
Техническая документация |
S3 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 66.7 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-24-CMRELAY REED C/O 24V |
1,780 |
|
Техническая документация |
S3 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
3502-05-811RELAY REED DPST 500MA 5V |
3,253 |
|
Техническая документация |
3500 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
S1-12-2ADRELAY REED TWIN N/O 1.5KV 12V |
1,928 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-24-2AMRELAY REED TWIN N/O 1.5KV 24V |
2,880 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-12-2AMRELAY REED TWIN N/O 1.5KV 12V |
3,618 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-05-2AMRELAY REED TWIN N/O 1.5KV 5V |
4,448 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 20 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
