Герконовые реле
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7141-12-1001RELAY REED SPDT 250MA 12V |
1,596 |
|
Техническая документация |
7000 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 10.9 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
7102-05-1011RELAY REED DPST 500MA 5V |
3,956 |
|
Техническая документация |
7000 | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|

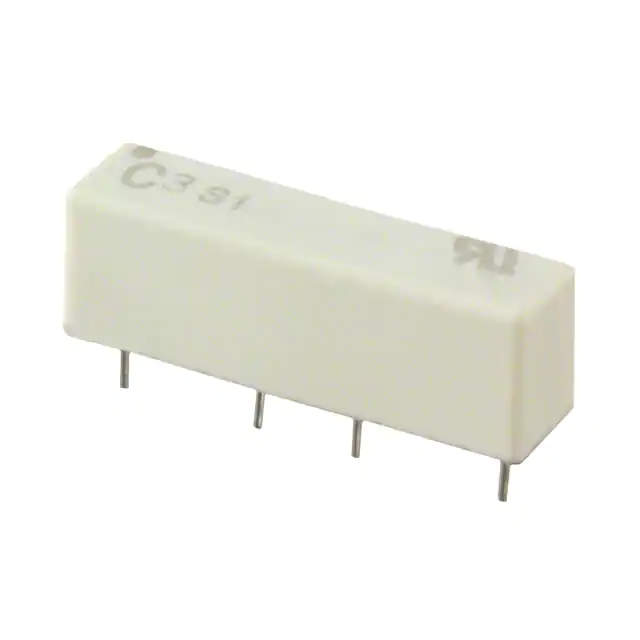

S1-0504RELAY REED 4KV SPST 5V SIP |
2,868 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | - | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-12-2ARELAY REED TWIN N/O 1.5KV 12V |
3,735 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-0504MRELAY REED 4KV SPST 5V SIP SCREE |
3,283 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | EMI Shielded | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-0504DRELAY REED 4KV SPST 5V SIP W/DIO |
0 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | Diode | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-1204DRELAY REED 4KV SPST 12V SIP W/DI |
3,189 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-0504DMRELAY REED 4KV SPST 5V SIP W/DIO |
3,415 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-1204DMRELAY REED 4KV SPST 12V SIP W/DI |
1,871 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
7102-12-1011RELAY REED DPST 500MA 12V |
4,026 |
|
Техническая документация |
7000 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
S1-05-2ADMRELAY REED TWIN N/O 1.5KV 5V |
2,211 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 20 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404DRELAY REED 4KV SPST 24V SIP W/DI |
3,426 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404RELAY REED 4KV SPST 24V SIP |
1,419 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404MRELAY REED 4KV SPST 24V SIP SCRE |
1,558 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|

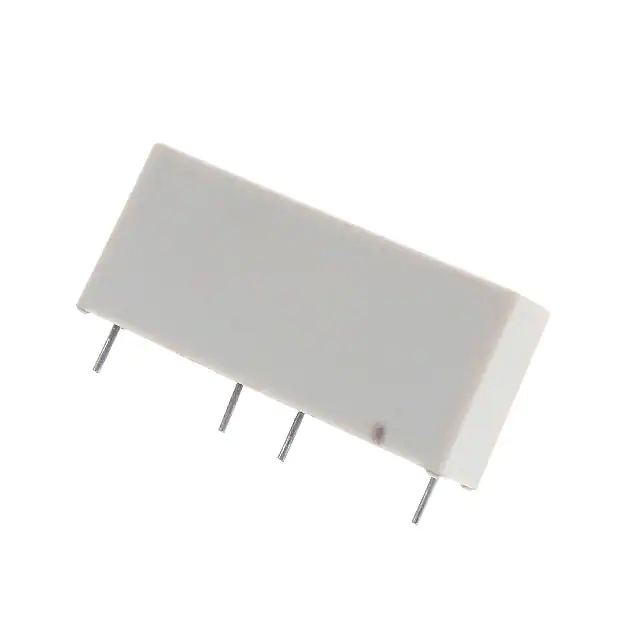

S1-12-BRELAY REED 1 N/C 1.5KV 12V |
2,886 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-2404DMRELAY REED 4KV SPST 24V SIP W/DI |
4,268 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 16 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|

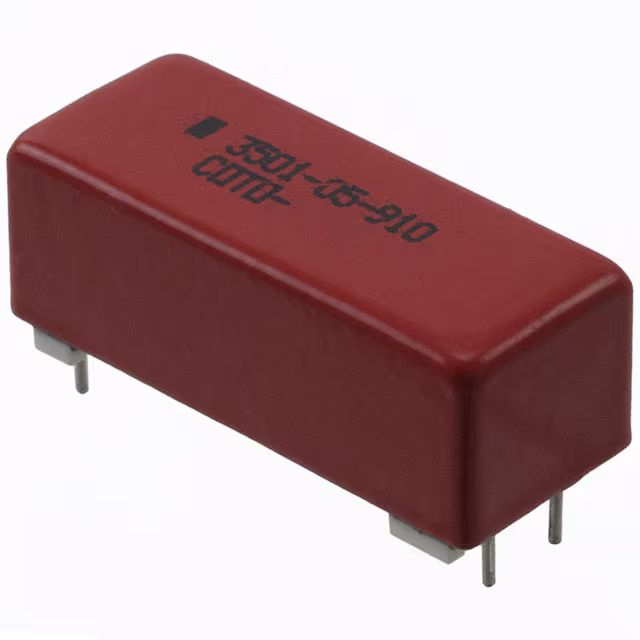

3501-05-910RELAY REED SPST 500MA 5V |
4,177 |
|
Техническая документация |
3500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
S1-05-BDRELAY REED 1 N/C 1.5KV 5V |
3,127 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-12-BMRELAY REED 1 N/C 1.5KV 12V |
4,426 |
|
Техническая документация |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
DBR71205URELAY REED SPST-NC 5KV 12V |
1,864 |
|
Техническая документация |
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
