DC-DC Преобразователи
| Фото | Парт. № производителя | Наличие | Количество | Техническая документация | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCG3-48-15DRDC DC CONVERTER +/-15V 3W |
4,317 |
|
Техническая документация |
CCG1R5-10 (3W) | 6-SMD Module | Tray | Active | Isolated Module | 2 | 18V | 76V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Surface Mount | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
R1M-2415S/SMD1W DC/DC-CONVERTER 'ECONOLINE' S |
3,922 |
|
Техническая документация |
R1M (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 70mA | 1.05 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
EC4AW06HDC DC CONVERTER +/-5V 5W |
2,303 |
|
Техническая документация |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
TRS 2-0921DC DC CONVERTER +/-5V 2W |
3,595 |
|
Техническая документация |
TRS 2 (2W) | 7-SMD Module | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Surface Mount | 0.47" L x 0.44" W x 0.31" H (11.9mm x 11.3mm x 8.0mm) | - | - | - | - |
|
NSD15-48D5DC DC CONVERTER +/-5V 15W |
1,898 |
|
Техническая документация |
NSD15-D (15W) | 8-DIP Module, 7 Leads | Tray | Active | Isolated Module | 2 | 18V | 72V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 80% | - | - | Through Hole | 2.00" L x 1.50" W x 0.39" H (50.8mm x 38.1mm x 9.8mm) | - | - | - | - |
|

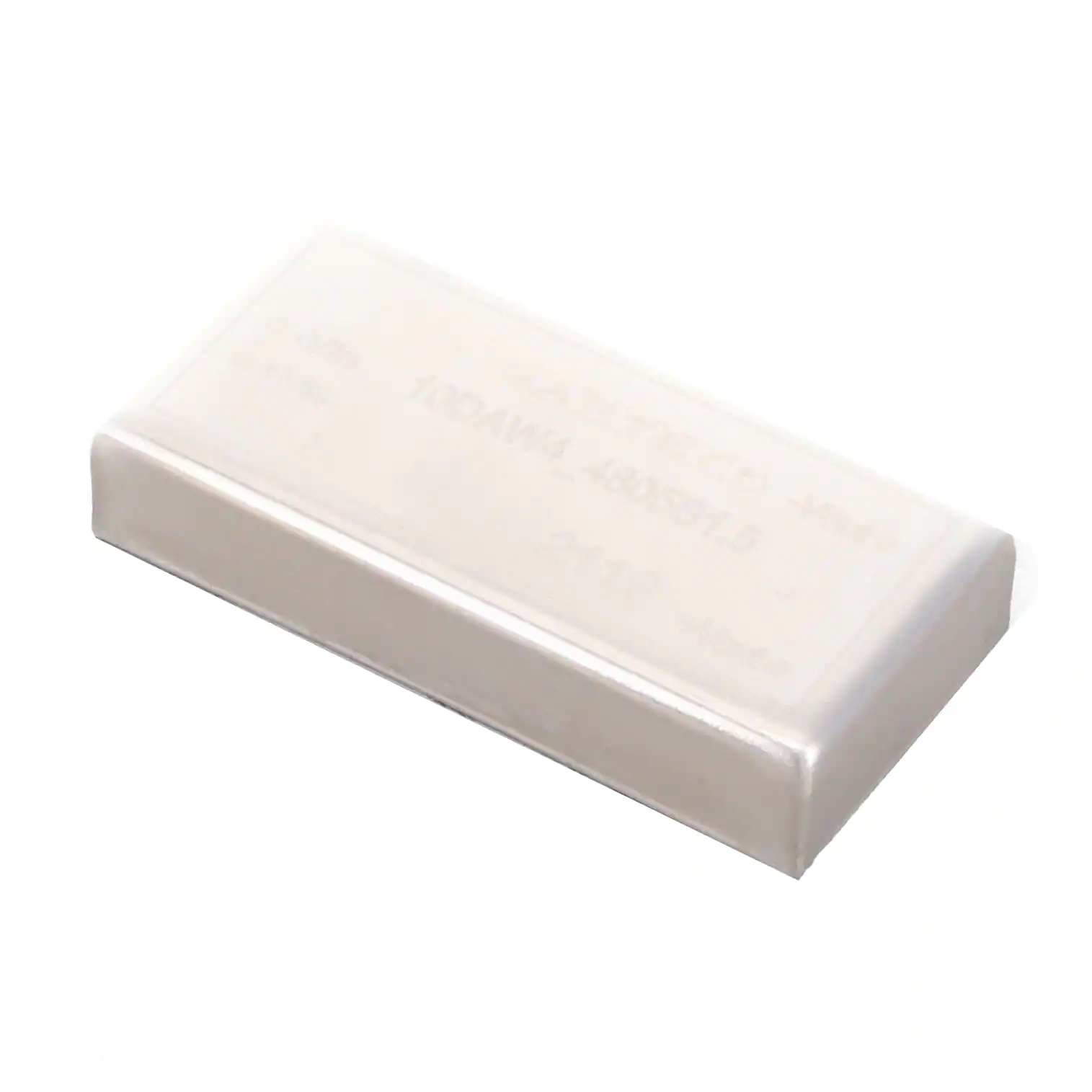

10DAW4_4805S1.5ISOLATED MODULE DC DC CONVERTERS |
1,291 |
|
Техническая документация |
10DAW4_1.5 (10W) | 6-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE | - |
|
|
10DAW4_2412S1.5ISOLATED MODULE DC DC CONVERTERS |
4,457 |
|
Техническая документация |
10DAW4_1.5 (10W) | 6-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 833mA | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE | - |
|
BTC12-03S120SDC DC CONVERTER 3.3V 4W |
2,980 |
|
Техническая документация |
BTC (6W) | 8-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 4 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | 0.91" L x 0.83" W x 0.33" H (23.2mm x 21.1mm x 8.5mm) | - | - | - | - |
|
|
BTC48-05S120DDC DC CONVERTER 5V 5W |
3,636 |
|
Техническая документация |
BTC (6W) | Module | Bulk | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 1A | 5 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.91" L x 0.83" W x 0.33" H (23.2mm x 21.1mm x 8.4mm) | - | - | - | - |
|
MGJ3T05150505MC-R7DC DC CONVERTER 15V -10V 3W |
2,861 |
|
Техническая документация |
MGJ3 (3W) | 7-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -10V | - | - | 120mA, 120mA | 3 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 80% | - | - | Surface Mount | 0.91" L x 0.89" W x 0.58" H (23.0mm x 22.6mm x 14.7mm) | - | - | - | - |
|
SCW08A-12DC DC CONVERTER 12V 8W |
3,687 |
|
Техническая документация |
SCW08 (8W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 670mA | 8 W | 1 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 71°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm) | - | - | - | - |
|
SUCS31215BDC DC CONVERTER 15V 3W |
2,971 |
|
Техническая документация |
SUCS (3W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm) | - | - | - | - |
|
SUCS31215CDC DC CONVERTER 15V 3W |
1,599 |
|
Техническая документация |
SUCS (3W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.98" L x 0.61" W x 0.28" H (25.0mm x 15.5mm x 7.0mm) | - | - | - | - |
|

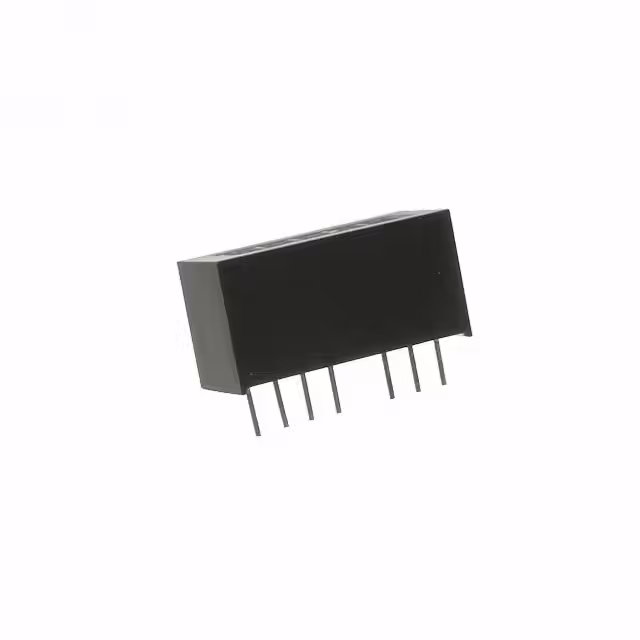

RS-1212SDC DC CONVERTER 12V 2W |
4,923 |
|
Техническая документация |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 166mA | 2 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
RS3-2405S/H2DC DC CONVERTER 5V 3W |
1,479 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RS3-1209S/H2DC DC CONVERTER 9V 3W |
3,072 |
|
Техническая документация |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 9V | - | - | - | 333mA | 3 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
BTB05-03S80SDC DC CONVERTER 3.3V 2.6W |
1,301 |
|
Техническая документация |
BTB (3W) | 10-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 800mA | 2.6 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.5mm) | - | - | cUL, UL | - |
|
|
BTB48-12W12SDC DC CONVERTER +/-12V 3W |
4,460 |
|
Техническая документация |
BTB (3W) | 10-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 36V | 76V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.5mm) | - | - | cUL, UL | - |
|
|
BTB48-03S80SDC DC CONVERTER 3.3V 2.6W |
3,700 |
|
Техническая документация |
BTB (3W) | 10-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 800mA | 2.6 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.5mm) | - | - | cUL, UL | - |
|
|
BTB24-12S25SDC DC CONVERTER 12V 3W |
3,219 |
|
Техническая документация |
BTB (3W) | 10-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Surface Mount | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.5mm) | - | - | cUL, UL | - |
